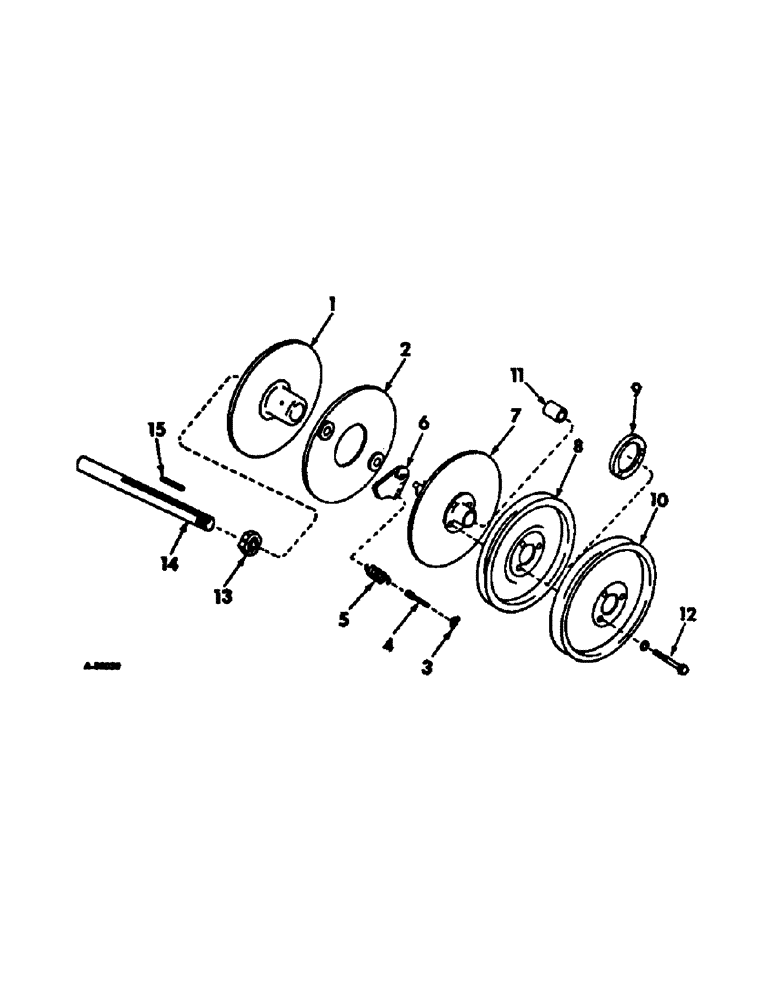

Запчасти Case IH 105 (A-21) - GOVERNOR CONTROL ATTACHMENT

1

476715R91

PLATE

governor driven

1шт.

2

476716R91

PLATE

pressure drive

1шт.

3

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

3шт.

4

476718R1

BOLT (SPREADER),1/4" - 20 x 1.250", Drilled

BOLT, tension control

2шт.

5

476719R1

SPRING

tension control

2шт.

6

476717R1

WEIGHT

governor

2шт.

7

476720R91

PLATE

governor drive

1шт.

8

476721R91

PULLEY, 9 in.

1шт.

9

476723R1

RETAINER

SPACER, pulley

1шт.

10

476722R91

PULLEY

10 in.

1шт.

11

475689R1

BUSHING

2шт.

12

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

476725R1

NUT

1-18 hex. jam

1шт.

14

476724R1

SHAFT

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW, 5/16-18 x 3/8 soc-hex-hd cup-pt set

1шт.

15

479370R1

KEY,1/4" Sq x 2", Par

1/4 x 2 sq parallel

1шт.
