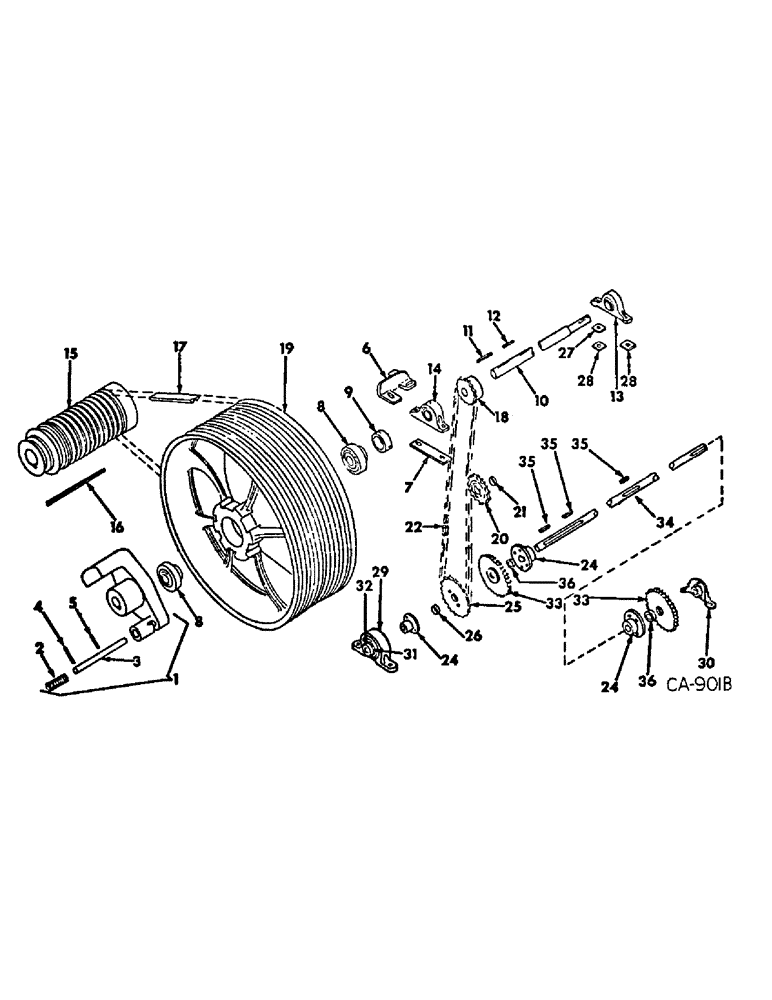

Запчасти Case IH 950 (C-06) - MAIN BELT, MIXER AND GEAR BOX DRIVE

1

481973R91

CLUTCH

ASSY, drive

1шт.

2

475721R1

SPRING

compression

1шт.

3

475722R1

PIN

locking

1шт.

4

657196R1

PIN

1/4 x 2 slt spring

1шт.

5

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

6

475726R1

BRACKET

bearing holder

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

492056R1

BRACE, front jackshaft bearing, for 1000 RPM-PTO

1шт.

7

543042R1

BRACE

front jackshaft bearing, for 540 RPM-PTO

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

102378

NUT, 1/2-13 C-Z hex

2шт.

8

485934R91

BEARING

ASSY LESS COLLAR, belt drive shaft ball

2шт.

9

485935R91

COLLAR

W/SET SCREW, brg locking

1шт.

10

481077R1

SHAFT

belt drive

1шт.

11

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq parallel

1шт.

12

454353R1

KEY,3/8" Sq x 1", Par

3/8 x 1 sq parallel

1шт.

13

475727R91

BEARING ASSY

BEARING ASSY, belt drive shaft pillow block rear ball

1шт.

14

485937R91

BEARING CARRIER,41.15mm ID

ASSY, belt drive shaft pillow block front ball

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

15

64667C1

PULLEY

14 groove, replaces 475733R91, hammer mill drive

1шт.

15

58530C1

PULLEY

drive, units w/corn sheller att.

1шт.

16

475763R1

KEY

gib head tapered, hammer mill drive, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

16

64668C1

KEY

3/8 tapered, hammer mill drive, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

16

Q3961

KEY, 3/8 x 5 sq-gib-hd, used w/corn sheller attachment

1шт.

17

489608R91

SET OF BELTS,0.88" W x 80.00" L

(6), V-Belt, 540 RPM-PTO 0.88" W x 80.00" L

1шт.

17

489609R91

SET OF BELTS,0.88" W x 60.00" L

(6), V-Belt, 1000 RPM-PTO 0.88" W x 60.00" L

1шт.

18

481974R1

SPROCKET ASSY.

SPROCKET, 14T, for 540 RPM PTO, 950 serial no. 2217 and below, 1150 serial no. 6432 and below

1шт.

18

57964C1

SPROCKET ASSY.

SPROCKET, 16T, for 540 RPM PTO, 950 serial no. 2218 and above, 1150 serial no. 6433 and above

1шт.

18

485946R1

SPROCKET ASSY.

SPROCKET, 15T, for 1000 RPM PTO

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

1шт.

58011C1

WASHER

(or as required)

1шт.

19

481975R91

PULLEY

drive, for 540 RPM-PTO

1шт.

19

485947R1

PULLEY

drive, for 1000 RPM-PTO

1шт.

20

571441R91

SPROCKET ASSY.,15T

SPROCKET W/BRG, idler, 15T, for 540 RPM-PTO

1шт.

20

488699R1

SPROCKET ASSY.

SPROCKET W/BRG, idler, 17T, for 1000 RPM-PTO

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

21

460045R1

SPACER

sprocket

1шт.

22

CHAIN, hammer mill drive, use 77 links from 10 ft roll marked 1793D, 1 connecting link 1786D and 1 offset link 1318D, for 540 RPM-PTO

1шт.

22

CHAIN, hammer mill drive, use 102 links from 10 ft roll marked 1791D and 1 offset link 1315D, for 1000 RPM-PTO

1шт.

23

NOT USED IN THIS APPLICATION

1шт.

24

487848R1

HUB

shear sprocket

3шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup pt set

3шт.

25

488518R2

SPROCKET ASSY.

SPROCKET, shear, 25T, for 540 RPM PTO, 950 serial no. 2217 and below, 1150 serial no. 6432 and below

1шт.

25

57960C1

SPROCKET ASSY.

SPROCKET, shear, 28T, for 540 RPM PTO, 950 serial no. 2218 and above, 1150 serial no. 6433 and above

1шт.

25

488521R2

SPROCKET ASSY.

SPROCKET, shear, 48T, for 1000 RPM PTO

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

26

488519R1

BUSHING, shear sprocket

1шт.

27

543043R1

SHIM

1/4 in.

2шт.

28

543044R1

SHIM

3/8 in.

1шт.

29

542726R91

BEARING CARRIER

BEARING ASSY, mixer drive pillow block front

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

30

542727R91

BEARING CARRIER

ASSY, mixer drive pillow block rear

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

31

540061R91

BEARING ASSY,2.09" OD x 1.563"

ASSY, mixer drive ball

2шт.

32

487920R91

COLLAR

W/SET SCREW

2шт.

33

541345R2

SPROCKET ASSY.

SPROCKET, 28T

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

34

542662R1

SHAFT

mixer drive

1шт.

35

586879R1

KEY

5/16 x 2 sq parallel

3шт.

36

541346R1

BUSHING

sprocket

2шт.

64512C91

KIT, pulley & key, consists of (1) pulley 64667C1, (1) key 64668C1

1шт.
