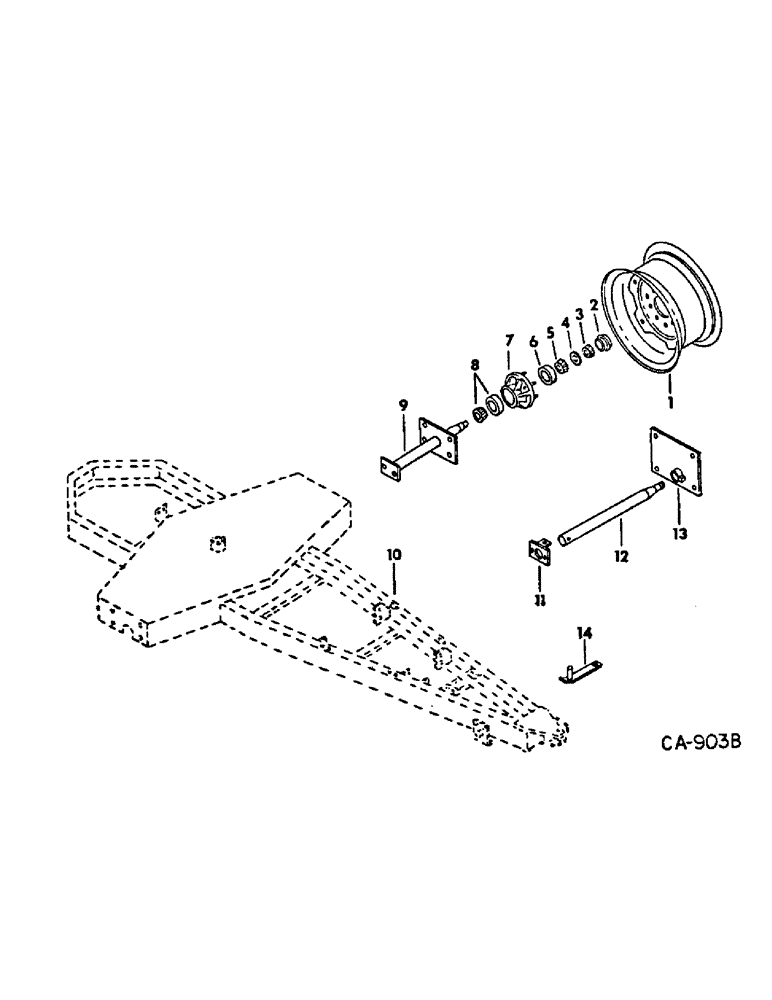

Запчасти Case IH 950 (C-05) - AXLE AND WHEELS

1

486101R2

RIM

WHEEL, 15 x 8 lb standard, built after July 1973, for 10.00 x 15 8 ply tire

2шт.

1

614424R91

WHEEL ASSY.

WHEEL, 15 in., built prior to July 1973, for 9.50 x 15 8 ply tire

2шт.

1

481345R91

RIM

WHEEL, 14 in., for 9.50 x 14 8 ply tire

2шт.

2

518842R1

CAP

hub

2шт.

3

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt-hex

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

4

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x 14 ga

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub outer cone

2шт.

6

651817R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

7

654341R91

HUB

wheel

2шт.

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT, wheel hub

12шт.

453770R1

WHEEL NUT

wheel hub bolt

12шт.

8

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

BEARING ASSY W/SEAL, wheel hub inner

2шт.

9

SPINDLE ASSY, wheel, order bracket, 57962C1, bracket 543198R1 and spindle, 57961C1, 950 serial no. 2217 and below, 1150 serial no. 6432 and below, grindle-mixer w/ration-rite scale, see electronic scale attachment, this section

1шт.

10

FRAME ASSY, welded, not available thru service

1шт.

11

57962C1

BRACKET

spindle mounting, 950 serial no. 2218 and above, 1150 serial no. 6433 and above

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

12

57961C1

SPINDLE

950 serial no. 2218 and above, 1150 serial no. 6433 and above

2шт.

13

543198R1

BRACKET

axle, 950 serial no. 2218 and above, 1150 serial no. 6433 and above

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

14

64671C1

HOLDER ASSY, PTO

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

231-1448

NUT,1/2"-13, GB

1/2-13 znp hex. nylon sert lock

1шт.
