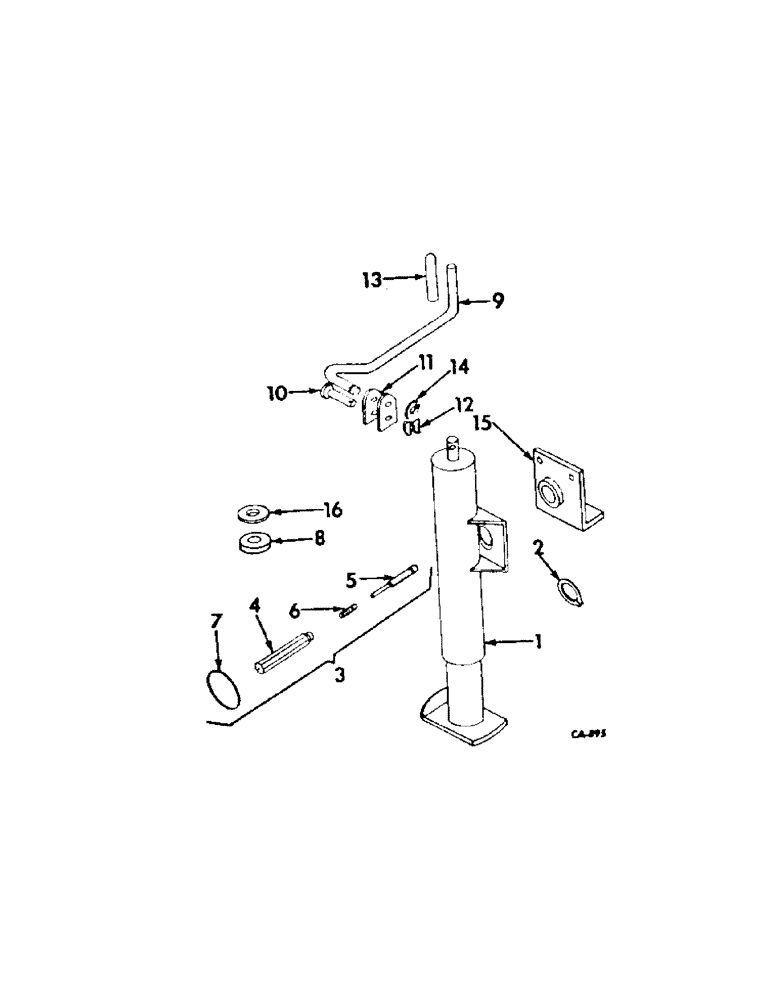

Запчасти Case IH 950 (C-03) - SWIVEL TYPE JACK, 950 SERIAL NO. 1912 AND BELOW, 1150 SERIAL NO. 5312 & BELOW

1

475862R92

JACK

ASSY, swivel type, order jack assy, 475862R92

1шт.

2

475863R1

RING

snap

1шт.

3

486713R91

PIN

ASSY, lock

1шт.

4

486714R1

HOUSING, lock pin

1шт.

5

PLUNGER, lock pin, not serviced separately, order jack assy

1шт.

6

486716R1

SPRING, lock pin

1шт.

7

486717R1

RING, lock pin

1шт.

8

475865R91

BEARING, thrust

1шт.

9

488241R1

HANDLE, swivel jack

1шт.

10

488242R1

PIN, handle

1шт.

11

488243R1

SLEEVE, jack crank handle

1шт.

12

488244R1

WASHER, crank pin X

1шт.

13

487876R1

GRIP

plastic

1шт.

14

542659R1

C-WASHER, jack crank

1шт.

15

542660R1

BRACKET

jack

1шт.

16

542661R1

WASHER, jack thrust

1шт.

475862R92

JACK

ASSY, swivel type

1шт.
