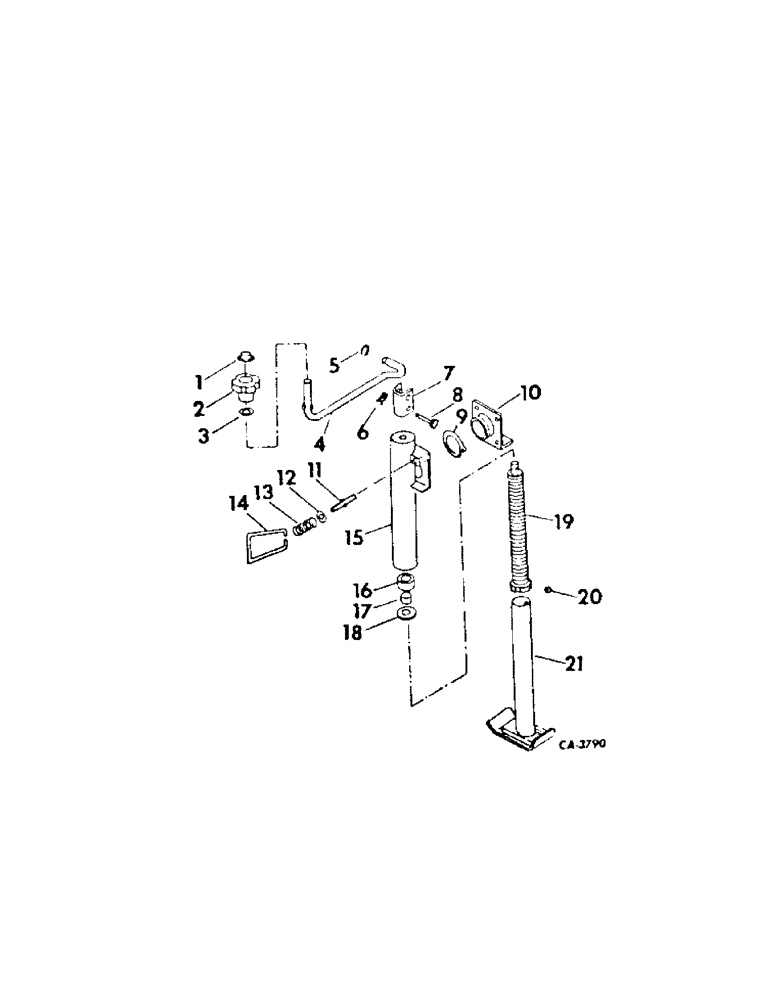

Запчасти Case IH 950 (C-03[A]) - 950 SERIAL NOS. 1913 TO 2590 1150 SERIAL NOS. 5313 TO 7919 950 SERIAL NO. 3992 AND ABOVE 1150 SERIAL NO. 14309 AND ABOVE

1

59100C1

CAP, handle

1шт.

2

59101C1

KNOB, handle

1шт.

3

20869R1

WASHER

handle, replaces 59102C1

1шт.

4

59103C1

HANDLE

1шт.

5

59104C1

RING, retaining

2шт.

6

277395R1

RETAINER

X-WASHER

1шт.

7

59105C1

SLEEVE, jack crank handle

1шт.

8

59106C1

PIN

crank handle

1шт.

9

475863R1

RING

snap

1шт.

10

542660R1

BRACKET

jack

1шт.

11

59108C1

PLUNGER

lock pin

1шт.

12

64502C1

SCREW

AND FOOT ASSY, bottom half

1шт.

13

59109C1

SPRING

plunger

1шт.

14

59110C1

RING

pull

1шт.

15

TUBE, outer, not serviced separately, order jack assy, 475862R92

1шт.

16

59111C91

THRUST BEARING

BEARING, thrust

1шт.

17

59112C1

BUSHING

nylon

1шт.

18

59113C1

THRUST WASHER

thrust bearing

1шт.

19

SCREW, LH thread, not serviced separately, order jack assy, 475862R92

1шт.

20

59114C1

BALL

rack keeper

1шт.

21

TUBE INNER, not serviced separately, order jack assy, 475862R92

1шт.
