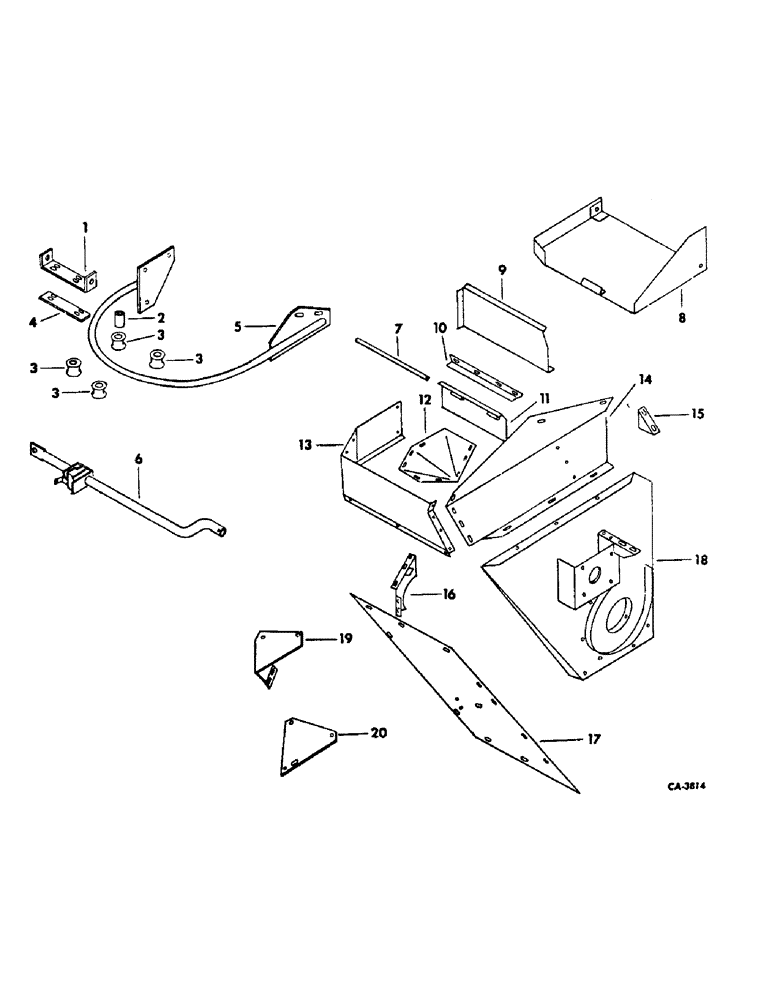

Запчасти Case IH 950 (C-47) - CORN SHELLER DRAG AND HOPPER PARTS

1

58700C1

BRACKET, drag shell support

1шт.

446363

WASHER,5/16"

.375 x .875 x .064 znd

4шт.

2

58702C1

BUSHING

4шт.

3

58703C1

ROLLER

4шт.

446363

WASHER,5/16"

.375 x .875 x .064 znd

4шт.

4

58701C1

BRACKET, bottom roller support

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

5

58704C1

HANGER

hoop supporting track

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

3шт.

21556R1

SCREW

3/8 x 1 znp P/HDS mach

2шт.

6

58721C1

SUPPORT

top auger feeder

1шт.

7

58705C1

ROD

hinge

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

8

58706C1

SHIELD, slide chute

1шт.

9

58707C1

SUPPORT, top back corn input

1шт.

10

58708C1

SUPPORT

angle brace

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

4шт.

11

58709C1

SHIELD

rubber

1шт.

12

58710C1

SUPPORT

bottom left

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znp P/HDS mach

4шт.

13

58711C1

SUPPORT, top left and front

1шт.

14

58712C1

SUPPORT, top and right side

1шт.

15

58713C1

SUPPORT

corner brace

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

4шт.

16

58714C1

BRACKET, bottom left

1шт.

17

58715C1

SHIELD, front bottom

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

18

FRAME, front head, refer to corn sheller unit attachment

1шт.

19

58716C1

BRACKET, left side folding

1шт.

20

58717C1

BRACKET, right side folding

1шт.
