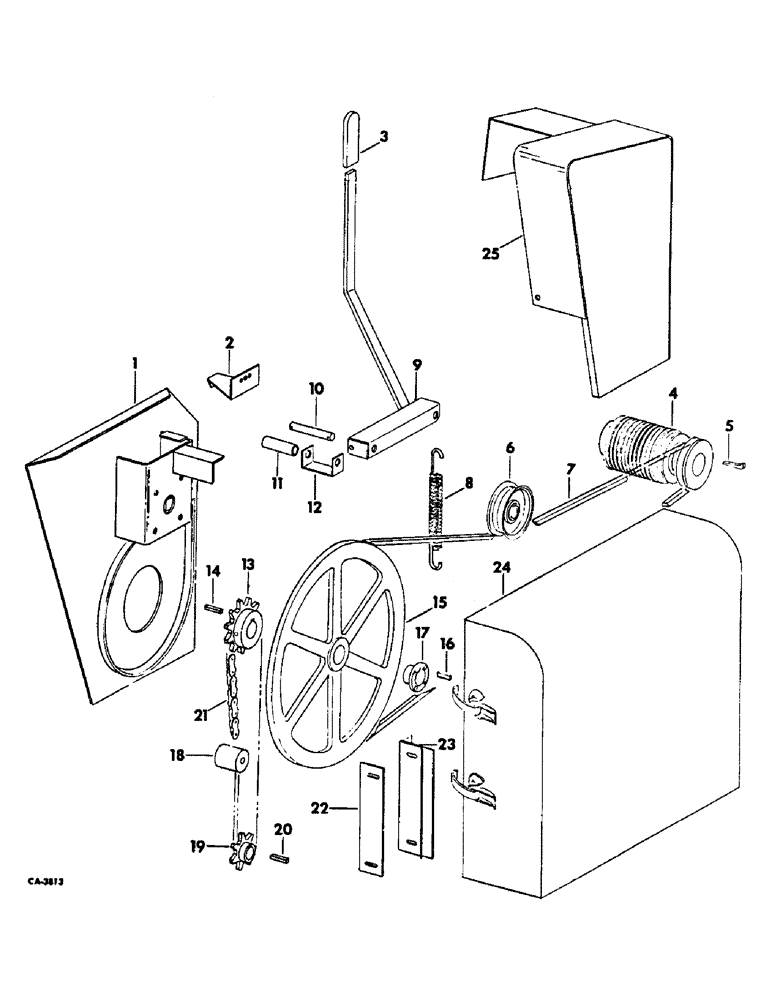

Запчасти Case IH 950 (C-45) - CORN SHELLER DRIVE

1

FRAME, front head, refer to corn sheller unit attachment

1шт.

2

58529C1

BRACKET

clutch arm lock

1шт.

3

488448R1

GRIP

plastic clutch handle

1шт.

4

58530C1

PULLEY

drive

1шт.

5

Q3961

KEY, 3/8 x 5 sq-gib-hd

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 znd hex-hd cap

1шт.

130998

WASHER,9/16"

.625 x 1.50 x .086 znd

1шт.

6

662958R91

PULLEY

idler

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

1шт.

7

58532C1

V-BELT,82.00" L

B8Z 82.00" L

1шт.

8

485872R1

SPRING

clutch control

1шт.

9

58533C1

BRACKET, clutch control

1шт.

10

58534C1

PIN

clutch control bracket

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

11

58535C1

SPACER

5/8 x 13/16 x 7/8

1шт.

12

58536C1

BRACKET

hitch

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

58537C1

SPROCKET ASSY.

SPROCKET, 28T

1шт.

14

454353R1

KEY,3/8" Sq x 1", Par

3/8 x 3/8 x 1 sq parallel

1шт.

15

58539C1

PULLEY

less hub

1шт.

16

58540C1

KEY

1/4 x 3/8 x 1-1/4

1шт.

17

58541C1

HUB

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

18

488228R1

BLOCK

1шт.

441549R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT, 3/8-16 x 2-1/2 znd sq-nk crg

1шт.

446363

WASHER,5/16"

.375 x .875 x .064 znd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

19

488492R1

SPROCKET ASSY.

SPROCKET, 13T

1шт.

20

452779R1

KEY,1/4" Sq x 3/4", Par

1/4 x 1/4 x 3/4

1шт.

21

CHAIN, drive, use 55 links from 10 ft roll marked, 1790D, 2 offset links, 1303D, 1 connecting link, 1301D

1шт.

22

58718C1

BRACKET, outside door latch

1шт.

23

59777C1

BRACKET, middle & inside door latch

1шт.

24

58547C1

SHIELD, sheller drive

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znd P/HDS mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

25

58548C1

SHIELD, top drag drive

1шт.
