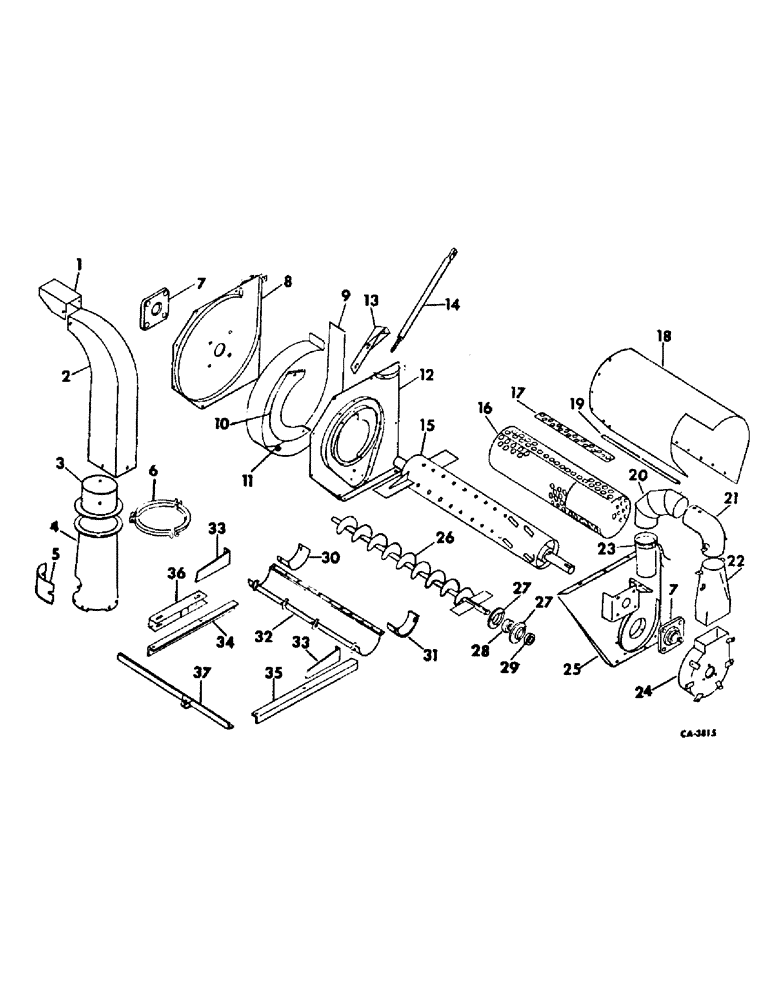

Запчасти Case IH 950 (C-43) - CORN SHELLER UNIT ATTACHMENT

1

58459C1

DEFLECTOR, cob stacker pipe

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znp P/HDS mach

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd whiz lock

2шт.

2

58460C1

PIPE, cob stacker

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znp P/HDS mach

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd whiz lock

3шт.

3

58461C1

PIPE, swivel collar

1шт.

4

58462C1

PIPE, cob stacker bottom

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nkc rg

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

5

58463C1

DOOR, clean out

1шт.

129-409

WING NUT,1/4"-20

NUT, 1/4-10 znd wing

2шт.

6

475751R91

CLAMP

ring

3шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

7

58465C91

FLANGED BEARING

BEARING, flange block

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znd sq-nk crg

4шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

8

58466C1

FRAME, back head

1шт.

9

58467C1

BAND

cob thrower housing

1шт.

10

58468C1

PLATE

cob retard

1шт.

11

542716R1

SPACER

3/8 x 9/16 x 9/32

1шт.

21556R1

SCREW

3/8 x 1 znp P/HDS mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znd sq-nk crg

2шт.

120389

WASHER,7/16"

.500 x 1.250 x .064 znd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

12

584472C1

FRAME, middle divider

1шт.

13

58469C1

BRACKET, support pipe hanger

1шт.

215387

SCREW, 5/16-18 x 6 znd hex-hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

14

58473C1

ROD, support

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

15

58474C1

SHAFT

CYLINDER & SHAFT, main

1шт.

16

58475C1

SCREEN

shelling chamber housing

1шт.

17

58476C1

STRAP

support screen housing

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd whiz lock

4шт.

18

58477C1

SHELL, main sheller housing

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

27шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

27шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

27шт.

120376

NUT,5/16"-18, G5

27шт.

19

58478C1

BRACKET, clean out door lock

1шт.

20

475790R1

PIPE

ELBOW, 4 in. top dust collector

1шт.

21

58500C1

ELBOW

corn thrower pipe

1шт.

22

58501C1

PIPE

corn thrower base

1шт.

23

58502C1

BOOT

canvas

1шт.

24

58503C1

HOUSING, corn thrower fan

1шт.

25

58504C1

FRAME, frt head

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

SCREW, 5/16-18 x 4-1/2 znd hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

26

58519C1

AUGER

corn conveying

1шт.

27

462360R1

FLANGED BEARING

brg mounting

4шт.

28

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, ball

2шт.

29

455102R21

COLLAR

locking

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd whiz lock

3шт.

30

58520C1

BRACKET, auger housing LH

1шт.

31

58521C1

BRACKET

auger housing RH

1шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16 x 3/4 znp P/HDS mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

32

58523C1

DOOR

clean out

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znp P/HDS mach

5шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd whiz lock

5шт.

33

NOT USED IN THIS APPLICATION

1шт.

34

58525C1

ANGLE, rear bottom frame

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

35

58526C1

ANGLE, frt bottom frame

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

36

58527C1

SPACER

rear frame

1шт.

37

58528C1

ANGLE, side bottom frame

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
