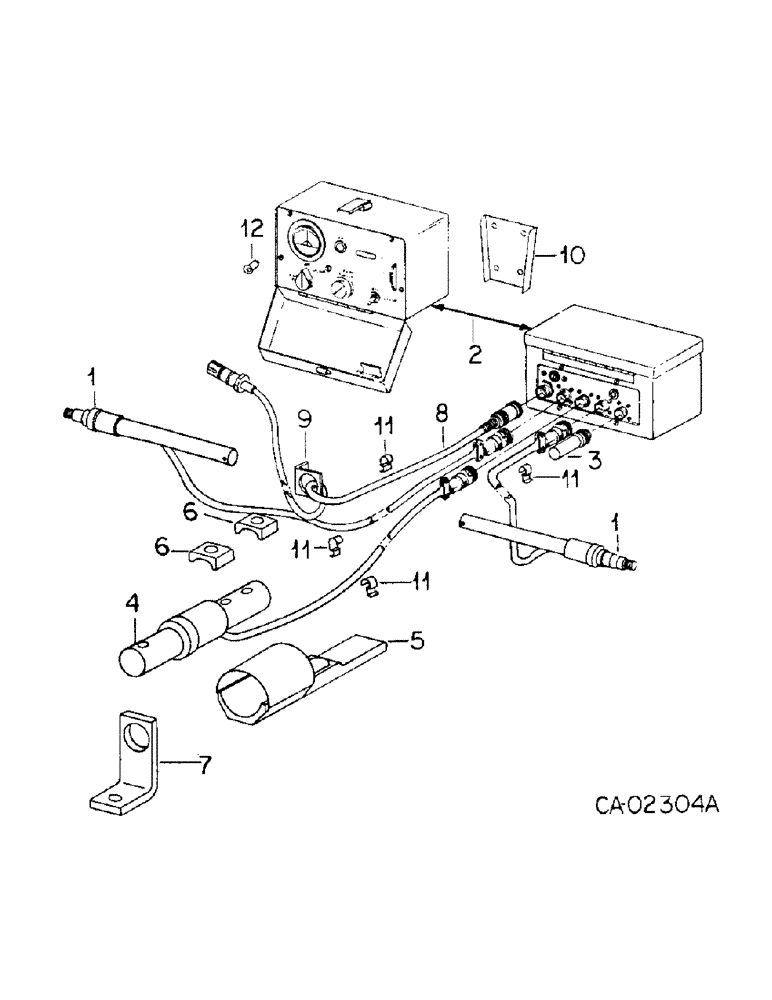

Запчасти Case IH 950 (C-42) - RATION-RITE ELECTRONIC SCALE ATTACHMENT

1

57998C1

AXLE, spindle weight bar, also order bracket, 57962C1 and bracket, 57962C1 and bracket, 543198R1, serial no. 1165 and below, for 15,000 lb. indicator

2шт.

1

64648C1

BAR

AXLE, spindle weight bar, serial no. 1166 and above, for 15,000 or 30,000 lb. indicator

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

62755C91

GAUGE

INDICATOR UNIT, 15,000 lb., replaces 548143R1

1шт.

2

62756R91

INDICATOR UNIT, 30,000 lb., serial no. 1166 and above

1шт.

2

548174R1

INDICATOR UNIT, exchange, 15,000 or 30,000 lb.

1шт.

142630

FUSE

cartridge type AGC-5

2шт.

3

548144R1

ADAPTER

indicator unit, 4 prong

1шт.

3a

1333868C1

ADAPTER

6 prong indicator unit, use at the S/N break in 1985

1шт.

4

548145R1

BAR, hitch weight, serial no. 1165 and below

1шт.

4

64934C1

BAR, hitch weight, serial no. 1166 and above

1шт.

5

548146R1

PAD AND SHIELD, mounting

1шт.

6

548147R1

PAD, bolt shoulder

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

1шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-10 x 6-1/2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

548148R1

CLEVIS

bar

1шт.

8

548149R1

CABLE

CORD, 12V power

1шт.

9

548150R1

BRACKET, power cord safety

1шт.

10

548151R1

BRACKET

indicator unit mounting

1шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4-20 x 1/2 zn pan-hd slt machine

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 whiz lock

4шт.

11

548152R1

CLIP

wire

15шт.

12

548153R1

INDICATOR

BULB, indicator alarm light

1шт.
