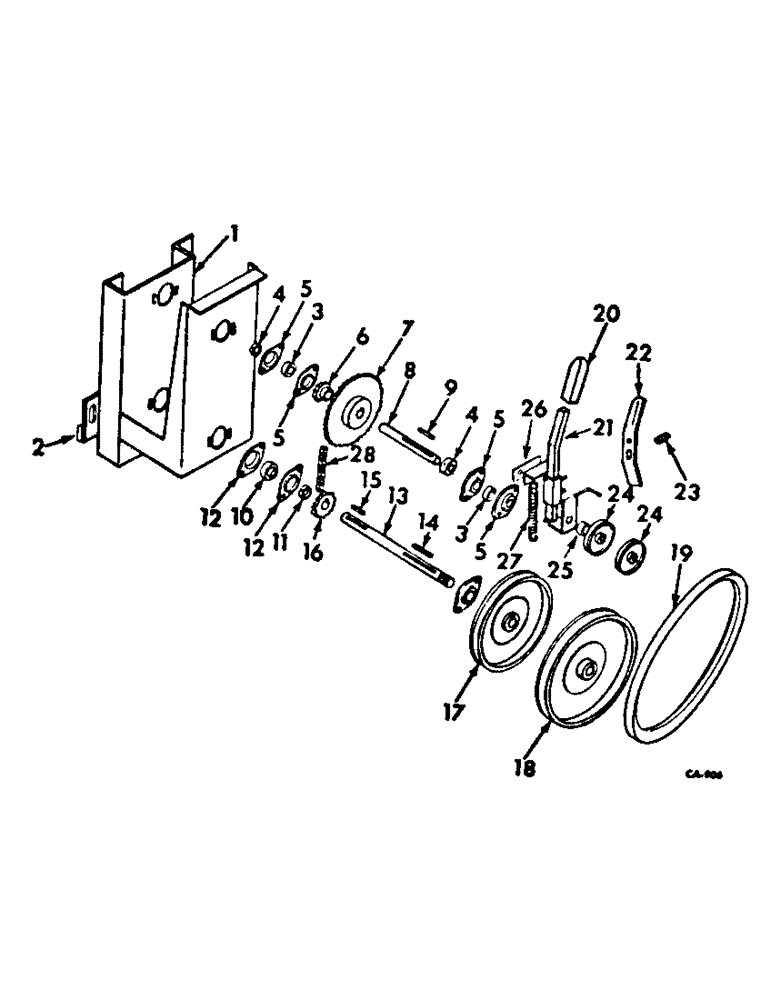

Запчасти Case IH 950 (C-38) - SWINGING AUGER FEED DRIVE, LOWER, HYDRAULIC DRIVEN

1

475692R91

BRACKET

DRIVE UNIT, bottom

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

475691R1

SHIM

bottom drive unit

1шт.

3

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

W/O COLLAR ASSY, ball

2шт.

4

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

W/SET SCREW, locking

2шт.

5

469924R1

FLANGE

bearing mounting

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120214R1

WASHER

5/16 C-Z med lock

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

120376

NUT,5/16"-18, G5

4шт.

6

75988C1

SPROCKET ASSY.

SPROCKET, 18T, replaces 475693R1

1шт.

7

476175R1

SPROCKET ASSY.

SPROCKET, 54T

1шт.

8

475656R1

SHAFT

3/4 in. x 6 in.

1шт.

9

21325R1

KEY,3/16" Sq x 2 1/4", Par

3/16 x 2-1/4 sq parallel

1шт.

10

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING W/O COLLAR ASSY, ball

2шт.

11

455102R21

COLLAR

W/SET SCREW, locking

2шт.

12

612031R1

FLANGED BEARING

bearing mounting

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

120376

NUT,5/16"-18, G5

4шт.

13

475697R1

SHAFT

1 x 11 in.

1шт.

14

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq parallel

1шт.

15

Q53

KEY,1/4" Sq x 1", Par

1шт.

16

475699R1

SPROCKET ASSY.

SPROCKET, 13T

1шт.

17

475696R1

PULLEY

9 in.

1шт.

18

475695R1

PULLEY

10 in.

1шт.

19

475694R1

V-BELT,46.00" L

Drive 46.00" L

1шт.

20

475681R1

HANDLE, plastic clutch

1шт.

21

475682R91

CLUTCH ASSY, drag control

1шт.

23048R1

WASHER

15/32 x 3/4 x 16 ga C-Z

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

22

475683R91

LOCK, clutch

1шт.

23

475684R1

SPRING, compression

1шт.

24

475685R1

PULLEY

idler

2шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8-16 x 2-3/4 znd sq-nk crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

25

542900R1

SPACER

pipe

1шт.

26

542717R1

SHIM, clutch control

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

27

475686R1

SPRING

extension

1шт.

28

CHAIN, drive unit, use 61 links from 10 ft roll marked 1790D & 1 connecting link 1301D

1шт.

1301d subs to 241-1314 link.

1шт.
