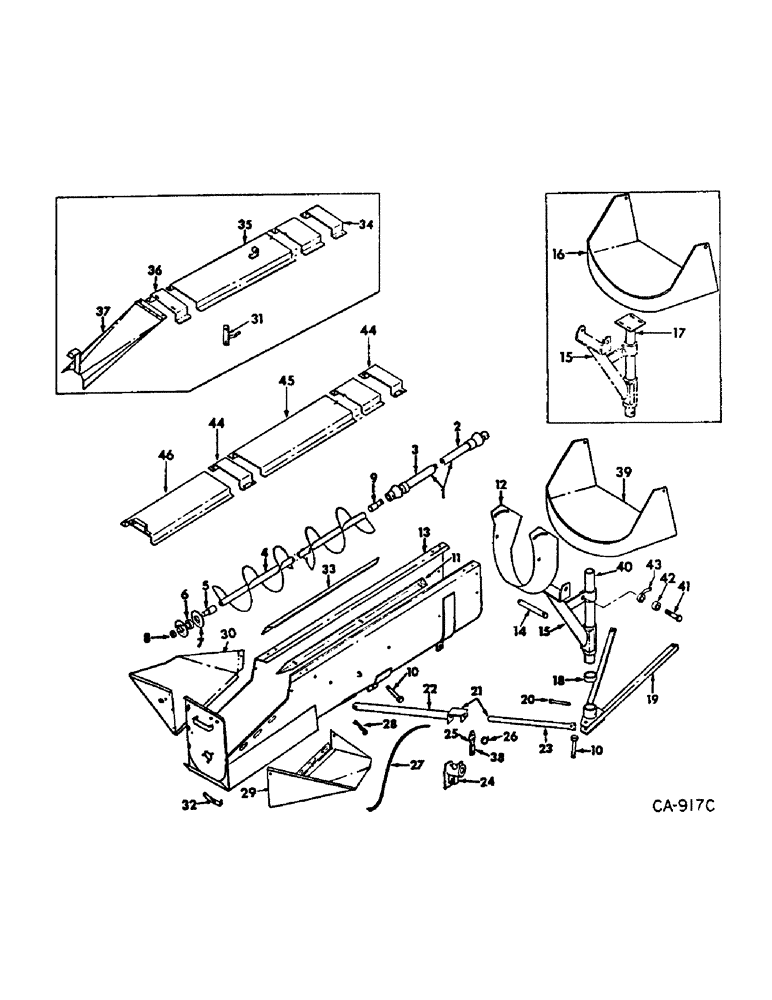

Запчасти Case IH 950 (C-35) - SWINGING AUGER DRAG FEEDER ATTACHMENT

1

SHAFT ASSY, power drag, not serviced separately, order ref. nos. 2 and 3, note A

1шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

1шт.

2

475649R1

SHAFT

top half power drag, note A

1шт.

3

475650R1

SHAFT

male end power drag, note A

1шт.

4

475652R91

AUGER

ASSY, 7 ft., note A

1шт.

5

475653R1

SHAFT, bottom plug

1шт.

6

475698R91

BALL BEARING,1" ID x 2.0472" OD x 0.844"

W/OUT COLLAR, ball

1шт.

7

476766R1

FLANGED BEARING

brg mounting

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

8

668085R11

COLLAR

W/SET SCREW, brg locking

1шт.

9

475657R1

SHAFT, top plug, for mechanical drive only

1шт.

10

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 std-hd

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

11

475658R1

GUIDE, right side auger

1шт.

12

475659R1

SPOUT, DISCHARGE

DOWNSPOUT, auger housing

1шт.

13

475660R92

HOUSING, auger feed, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

13

62792C91

HOUSING, auger feed, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

14

475663R1

PIN

ROD, hinge

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

2шт.

15

488480R1

SUPPORT, swinging auger housing

1шт.

16

475665R1

HOPPER

mill drag, serial no. 705176 and below

1шт.

17

542702R1

SUPPORT, vertical pipe, serial no. 705176 and below

1шт.

18

543045R1

SPACER, pipe support

1шт.

19

475667R1

SUPPORT, bottom swivel unit

1шт.

20

Q657

HEADED PIN,9.53mm OD x 69.85mm L

PIN, 3/8 x 2-3/4 std-hd

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

21

475668R91

SUPPORT ASSY, jack

1шт.

22

475669R1

SUPPORT, top pipe

1шт.

23

475670R1

SUPPORT

bottom pipe

1шт.

24

475671R1

CLAMP

LOCK, jack

1шт.

25

485861R1

CLAMP

jack lock

3шт.

26

475672R1

SPRING

jack

1шт.

27

ROPE, 7-1/2 ft., purchase locally

1шт.

28

475674R1

PIN, transport position lock

1шт.

29

61306C2

HOPPER

W/HINGE

1шт.

30

542704R1

HOPPER, panel LH, note A

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 CDP hex. lock

2шт.

31

61078C1

ROD, chopper guard, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

32

61079C1

HANDLE, release

1шт.

187759

SCREW, 1/4-20 x 7/8 znp slt-truss-hd mach

1шт.

443931

SCREW, 1/4-20 x 1-1/4 znp slt-truss-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 P/T lock type 5

2шт.

61080C1

SPRING

1шт.

33

488482R1

SUPPORT

ANGLE, feeder LH, note A

1шт.

34

491374R1

BRACKET, top brace support, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

35

491376R1

SHIELD, main drag auger safety, 950 serial no. 3991 and below, 1150 serial no. 14308 and below, note A

1шт.

36

491374R1

BRACKET, bottom brace support, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

37

491377R2

SHIELD, bottom drag auger safety, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

38

543116R1

CLAMP

jack lock and rope holder

1шт.

39

543312R1

HOPPER, mill drag, serial no. 705177 and above

1шт.

40

543311R1

SUPPORT, vertical pipe, serial no. 705177 and above

1шт.

41

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 znd sq-nk crg

1шт.

42

64670C1

SPACER

1шт.

43

475803R1

NUT, 7/16-14 handle

1шт.

44

62796C1

BRACKET

SUPPORT, auger shield, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

619855R1

WASHER

.344 x .750 x .054

4шт.

45

62797C1

SHIELD

main drag auger safety, 950 serial no. 3992 and above, 1150 serial no. 14309 and above, note A

1шт.

46

62798C1

SHIELD

ASSY, sliding safety, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

61307C92

HOPPER KIT, folding, consists of

1шт.

61306C2

HOPPER

W/HINGE

1шт.

61079C1

HANDLE, release

1шт.

INSTRUCTIONS (NSS), installing

1шт.

61080C1

SPRING

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4-20 znp hex. lock

2шт.

187759

SCREW, 1/4-20 x 7/8 znp slt-truss-hd mach

1шт.

443931

SCREW, 1/4-20 x 1-1/4 znp slt-truss-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
