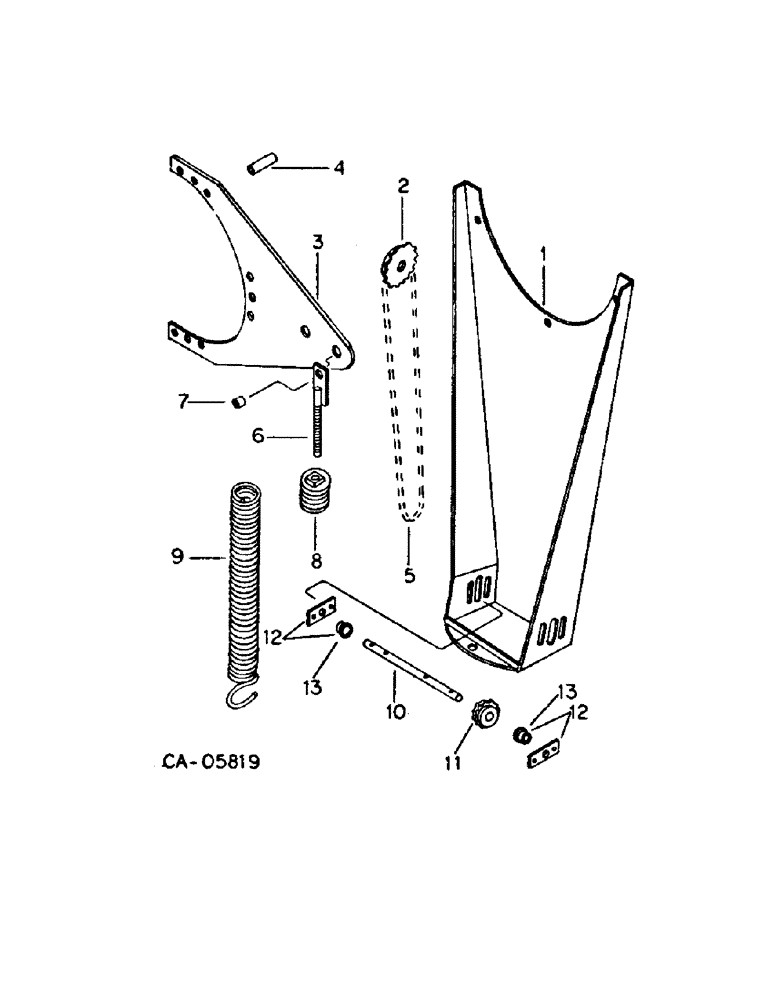

Запчасти Case IH 950 (C-34) - AUGER LIFT ASSIST ATTACHMENT, FOR MACHINES W/18 IN. AUGER

1

73645C1

ARM

ASSY, vertical

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

73646C1

SPROCKET ASSY.

SPROCKET, 40B18

1шт.

18561R1

LOCK PIN,1/4" x 3", Slotted

Pin, 1/4" x 3", Slotted

1шт.

3

73647C1

PLATE

lift, lever

1шт.

4

65881H

SPACER,1/4" Pipe x 1 1/4"

1/4 x 1-1/4 std-pipe

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4 type 5

3шт.

5

CHAIN, no. 40 roller, use 91 links from bulk chain marked 1790D plus one connecting link 1301D

1шт.

6

73649C1

BOLT ASSY, adjustment eye, spade

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

7

542716R1

SPACER

3/8 x 9/16 x 9/32

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

8

73650C1

NUT

spring

1шт.

9

73651C1

SPRING

extension

1шт.

10

73653C1

PIN

crank drive, shaft

1шт.

11

73654C1

SPROCKET ASSY.

SPROCKET

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

12

73655C91

PLATE

ASSY W/BUSHING, adjustment

2шт.

13

73652C1

BUSHING

plate

2шт.

21796R1

WASHER

.656 x 1.000 x .054

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.
