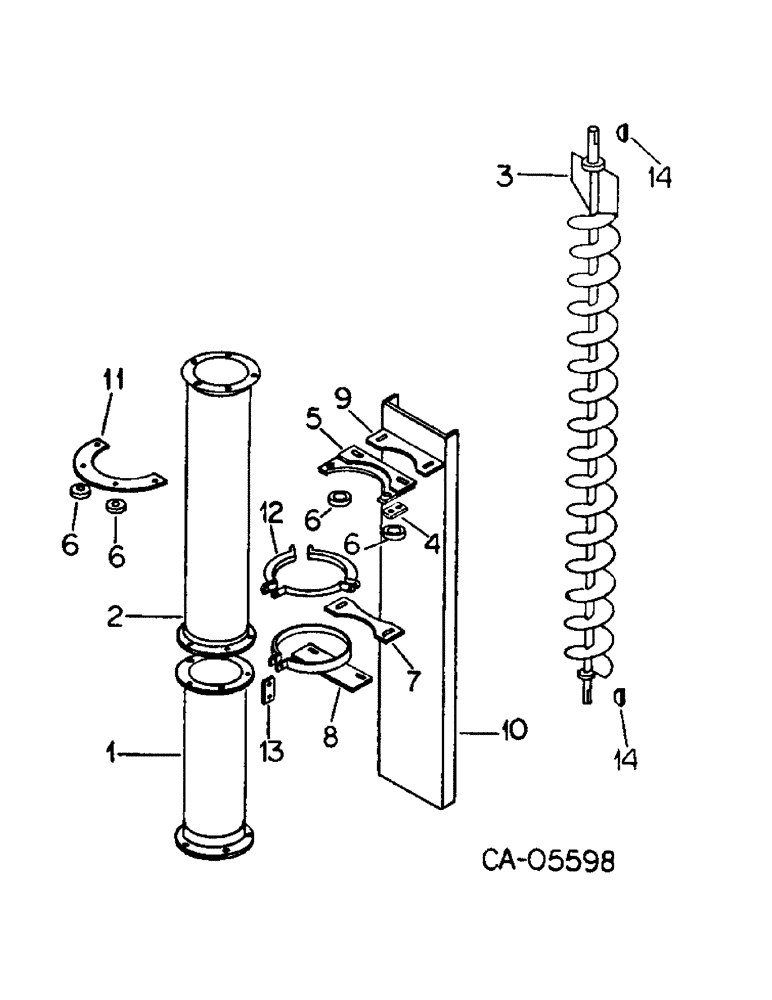

Запчасти Case IH 950 (C-31) - VERTICAL 18 AND 42 IN. EXTENSION AUGER ATTACHMENT, 950 S/N 2218 & ABOVE, 1150 S/N 6434 & ABOVE

1

57974C1

TUBE,8" OD, 18" Length

auger 18 in.

1шт.

2

64939C1

TUBE, ext auger 24 in., used w/42 in. ext. 1" OD, 24" Length

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120376

NUT,5/16"-18, G5

10шт.

3

64940C1

AUGER ASSY, 42 in. ext.

1шт.

3

58010C1

AUGER

ASSY, 18 in. ext.

1шт.

4

64942C1

BAR

swivel ring attaching, used w/42 in. ext.

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

6

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

BEARING, swivel, used w/42 in. ext.

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

57976C1

BRACKET

used w/18 in. ext.

1шт.

8

57975C1

BAND, extension holding, used w/18 in. ext.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

619855R1

WASHER

.344 x .750 x .054

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

9

64944C1

BAR

vert. ext. holding, used w/42 in. ext.

1шт.

10

64945C1

CHANNEL, reinforcement, used w/42 in. ext.

1шт.

11

64941C1

SUPPORT

swivel, used w/42 in. ext.

1шт.

12

57973C1

CLAMP

swivel, use w/18 in. ext.

3шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

13

543104R1

STABILIZER, used w/18 in. ext.

1шт.

14

619720R1

KEY,5/16" Sq x 1 1/8", Par

5/16 x 1-1/8 sq tapered

2шт.
