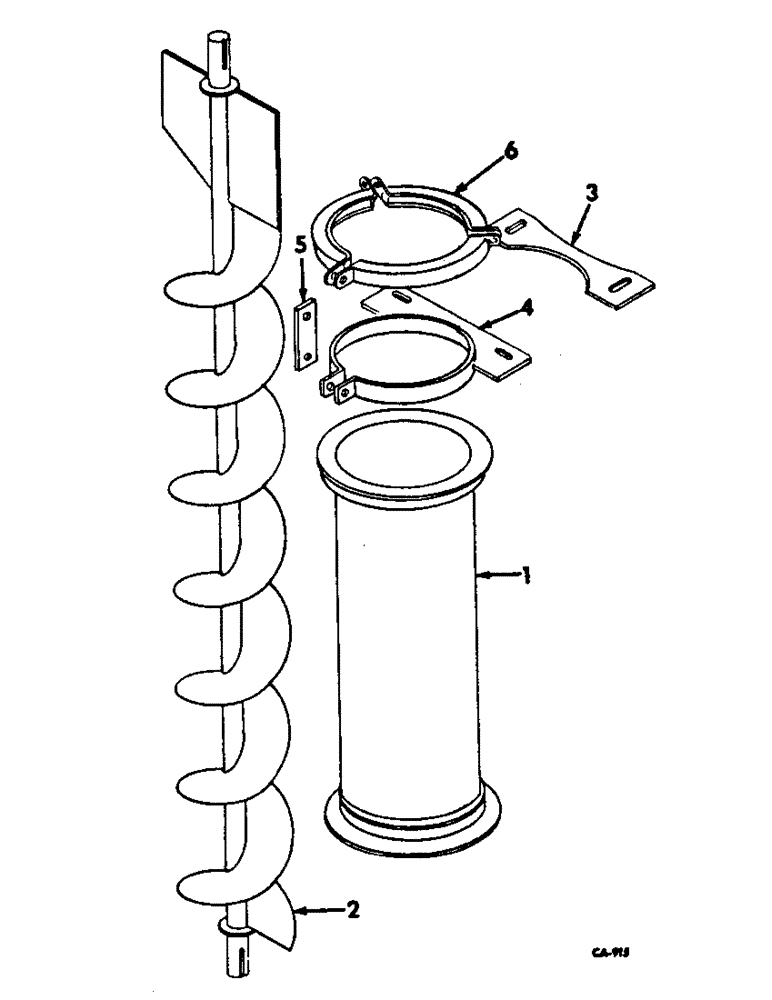

Запчасти Case IH 950 (C-30) - VERTICAL 18 IN. EXTENSION AUGER ATTACHMENT, 950 S/N 2217 & BELOW, 1150 S/N 6433 & BELOW

1

485894R1

TUBE, auger, 7 in., note A

1шт.

2

488451R1

AUGER ASSY, 6 in. note A

1шт.

3

488452R1

BRACKET, 7 in. tube, note A

1шт.

4

485901R1

BAND, extension holding, 7 in. tube

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

543104R1

STABILIZER

1шт.

6

475751R91

CLAMP

swivel, 7 in. tube, note A

3шт.

6

57973C1

CLAMP

swivel, 8 in. tube, note B

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.
