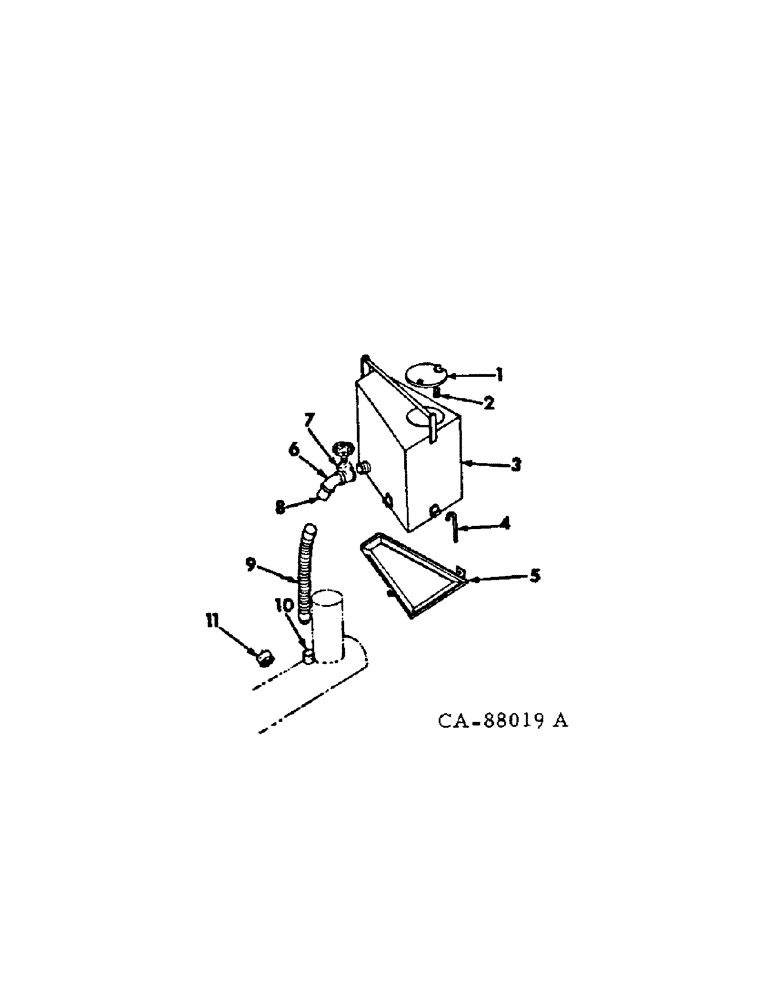

Запчасти Case IH 950 (C-28[B]) - MOLASSES ATTACHMENT

1

485956R91

COVER ASSY, tank

1шт.

2

372649R1

SPRING

cover

1шт.

3

485955R91

TANK W/COVER, main molasses

1шт.

180085

SPRING

SCREW, 5/16-18 x 1-3/4 C-Z hex-hd cap

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

120376

NUT,5/16"-18, G5

1шт.

4

485959R91

HOOK ASSY, molasses tank

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

126177

WING NUT

NUT, 1/4 C-Z wing

1шт.

5

489550R1

FRAME, tank holder

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z lock flange

2шт.

6

187417

SHIELD

COUPLER, 1-1/2 pipe

1шт.

7

485962R1

VALVE

1-1/2 gate

1шт.

8

187558

ELBOW,90 Degree, 1 1/2" NPT

1-1/2 90 deg street

1шт.

9

485957R1

SHIM

HOSE, 1-1/2 OD

1шт.

10

221-305

SUN VISOR,Nipple, 2" NPT x 2"

NIPPLE, 2 x 2

1шт.

11

178438

CAP, 2 in. pipe 2" NPT

1шт.
