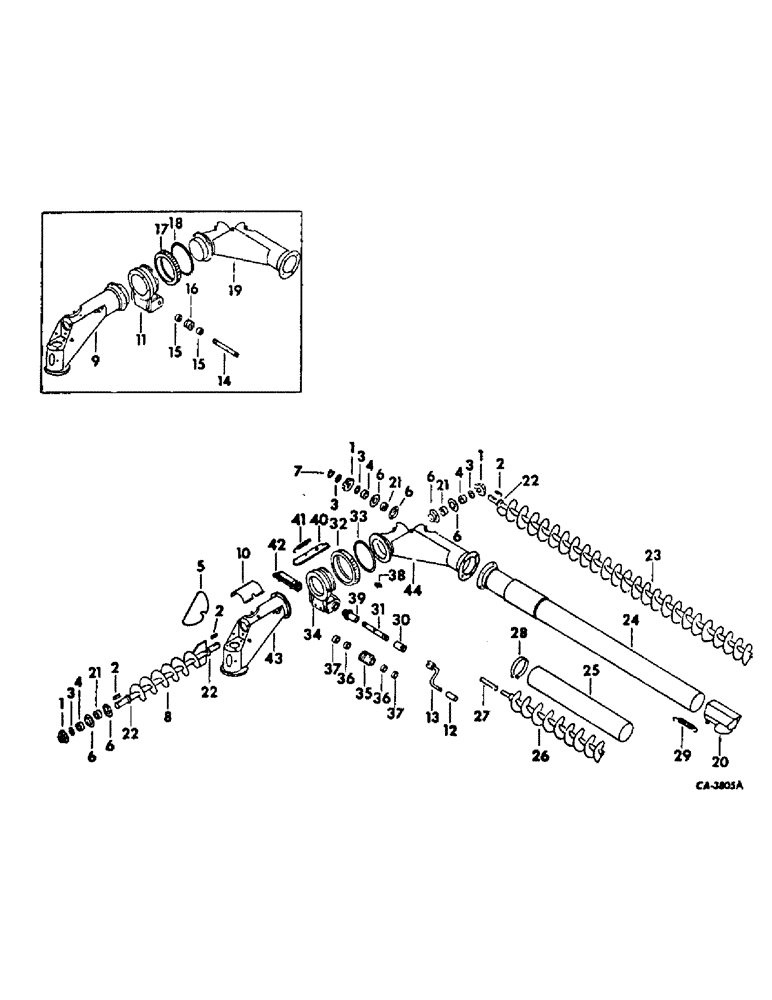

Запчасти Case IH 950 (C-23) - UNLOADING AUGER AND EXTENSIONS, 7 IN. AUGER AND 8 IN. TUBE

1

487873R1

GEAR

bevel, 14T

3шт.

2

619720R1

KEY,5/16" Sq x 1 1/8", Par

5/16 x 1-1/8 sq. par.

3шт.

3

487922R1

WASHER

1-1/8 x 1-5/8 x 10 ga.

3шт.

3

487923R1

WASHER

1-1/8 x 1-5/8 x 12 ga.

3шт.

4

487920R91

COLLAR

W/SET SCREW, bearing

3шт.

5

57990C1

SHIELD

bevel gear

2шт.

6

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

brg mounting

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

7

454319R1

RING

retaining

1шт.

8

57995C1

AUGER

ASSY, cross

1шт.

9

57988C1

ELBOW

discharge tube, 950 serial no. 2218 to 3991, 1150 serial no., Serial Range: 6433-14308

1шт.

10

475755R1

PLATE

DOOR, cleanout

4шт.

97865H

WASHER

9/32 x 7/8 x 16 ga C-Z

8шт.

142745

NUT, WING

NUT, 5/16-18 wing

8шт.

11

57991C1

HOLDER, worm gear, 950 serial no. 2218 to 3991, 1150 serial no., Serial Range: 6433-14308

1шт.

133837

SCREW, 5/16-18 x 1 C-Z slt-flt-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

12

487876R1

GRIP

crank handle

1шт.

13

475753R1

CRANK

1шт.

14

57993C1

SHAFT

worm gear, 950 serial nos. 2218 to 3991, 1150 serial nos., Serial Range: 6433-14308

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

15

567833R91

THRUST BEARING

worm gear shaft thrust, 950 serial nos. 2218 to 3991, 1150 serial nos., Serial Range: 6433-14308

2шт.

16

57992C1

GEAR

WORM, 950 serial nos. 2218 to 3991, 1150 serial nos., Serial Range: 6433-14308

1шт.

17

57994C1

GEAR, 125T, 950 serial no. 2218 to 3991, 1150 serial no., Serial Range: 6433-14308

1шт.

18

57996C1

RING, retaining, 950 serial no. 2218 to 3991, 1150 serial no., Serial Range: 6433-14308

1шт.

19

64507C1

ELBOW

discharge tube, 950 serial no. 2218 to 3991, 1150 serial no., Serial Range: 6433-14308

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flange lock

10шт.

20

145809C1

HOOD

unloading auger, replaces 57987C2

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 znd hex-hd cap

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

1шт.

21

487919R91

BEARING

ASSY LESS COLLAR, auger shaft ball

3шт.

22

NOT USED IN THIS APPLICATION

1шт.

23

57979C1

AUGER

94.5 in. long, for 8 ft. unloading auger standard

1шт.

23

57980C1

AUGER

106.5 in. long, for 9 ft. unloading auger

1шт.

23

57981C1

AUGER

118 in. long, for 10 ft. unloading auger

1шт.

23

57982C1

AUGER

130.5 in. long, for 11 ft. unloading auger

1шт.

24

57983C1

TUBE

auger, 79 in. long, for 8 ft. unloading auger standard

1шт.

24

57984C1

TUBE, auger 91 in. long, for 9 ft. unloading auger

1шт.

24

57985C1

TUBE

auger 103 in. long, for 10 ft. unloading auger

1шт.

24

57986C1

TUBE

auger 115 in. long, for 11 ft. unloading auger

1шт.

25

58004C1

TUBE, auger 2 ft. extension att. 8" OD, 24" Length

1шт.

25

58005C1

TUBE,8" OD

auger 3 ft. extension att.

1шт.

25

58006C1

TUBE,8" OD, 48" Length

auger 4 ft. extension att.

1шт.

25

58007C1

TUBE, auger 5 ft. extension att. 8" OD, 60" Length

1шт.

25

58008C1

TUBE,8" OD

auger 6 ft. extension att.

1шт.

26

57999C1

AUGER ASSY, 2 ft. extension att.

1шт.

26

58000C1

AUGER

ASSY, 3 ft. extension att.

1шт.

26

58001C1

AUGER ASSY, 4 ft. extension att.

1шт.

26

58002C1

AUGER ASSY, 5 ft. extension att.

1шт.

26

58003C1

AUGER

ASSY, 6 ft. extension att.

1шт.

27

57997C1

SHAFT

extension

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16-14 x 3/4 sq-hd cup-pt set

2шт.

28

58009C1

BAND

holding

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 C-Z hex-hd cap

1шт.

29

64669C1

SPRING

extension

1шт.

30

64705C1

BUSHING

worm shaft, sleeve, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

31

64706C1

PIN

worm, shaft, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

32

64707C1

GEAR

worm, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

33

64708C1

RING

snap, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

2шт.

34

64709C1

HOLDER ASSY, ring & worm, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

35

64710C1

GEAR

worm, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

36

567833R91

THRUST BEARING

worm gear shaft thrust, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

2шт.

21796R1

WASHER

.656 x 1.00 x 0.60 znd, 950 serial no. 3992 and above, 1150 serial no. 14309 and above, (or as required)

5шт.

37

492087R91

BALL BEARING,0.625" ID x 1.375" OD x 0.4375"

ball, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

2шт.

38

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, 950 serial no. 3992 and above, 1150 serial no. 14309 and above 1/8"-27 x .66 lg

2шт.

39

64508C1

WHEEL

AND SLEEVE ASSY, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

40

64509C1

BAR

control, lever, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

41

64510C1

SPRING

950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

42

64511C1

BRACKET

ASSY, catch, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

43

57988C1

ELBOW

discharge tube, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

44

64507C1

ELBOW

discharge tube, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

See Scopus case #178990 if any questions on the 75922c1 elbow.

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

10шт.

57973C1

CLAMP

swivel, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120386

WASHER

.312 x .734 x .051

6шт.

120376

NUT,5/16"-18, G5

3шт.

64725C91

KIT, unloading auger hood, consists of (1) hood 57987C2, (1) spring 64669C1, (1) screw 180081, (1) nut 938017R1

1шт.
