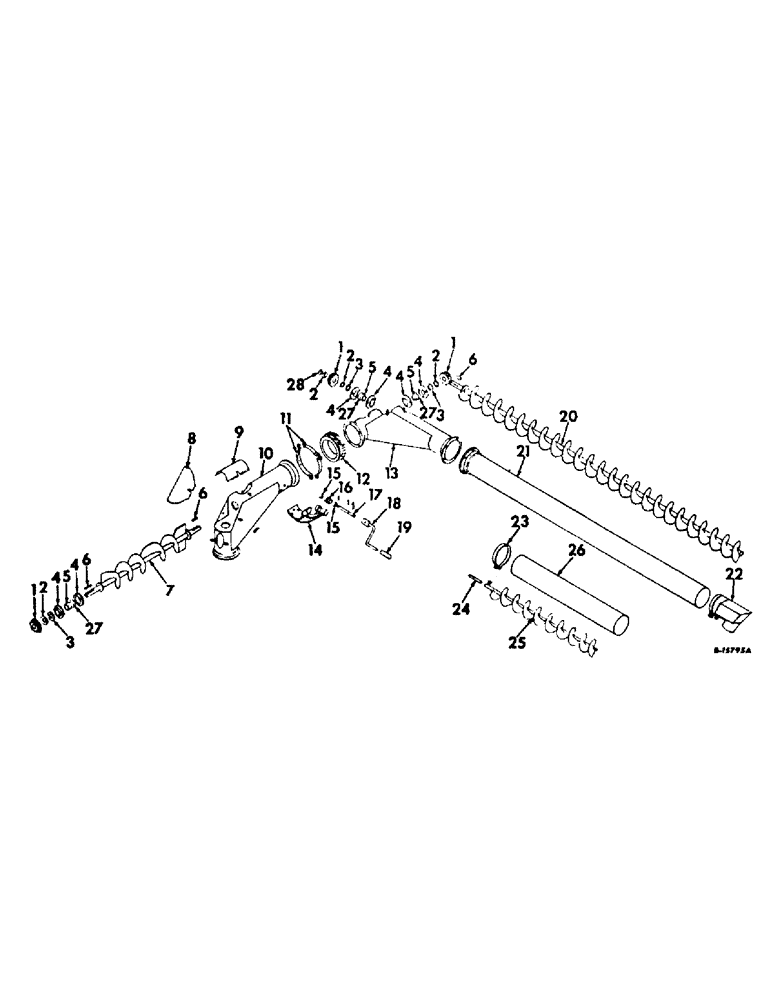

Запчасти Case IH 950 (C-22) - UNLOADING AUGER AND EXTENSIONS, 6 IN. AUGER AND 7 IN. TUBE

1

487873R1

GEAR

bevel, 14T

3шт.

2

487922R1

WASHER

1-1/8 x 1-5/8 x 10 ga

3шт.

3

487923R1

WASHER

1-1/8 x 1-5/8 x 12 ga

3шт.

4

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

brg mounting

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

5

487919R91

BEARING

ASSY LESS COLLAR, auger shaft ball

3шт.

6

619720R1

KEY,5/16" Sq x 1 1/8", Par

5/16 x 1-1/8 sq parallel

3шт.

7

487874R1

AUGER ASSY, cross

1шт.

8

475754R1

SHIELD, bevel gear

2шт.

9

475755R1

PLATE

DOOR, cleanout

4шт.

97865H

WASHER

9/32 x 7/8 x 16 ga C-Z

8шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

8шт.

10

487875R1

ELBOW

discharge tube

1шт.

11

475751R91

CLAMP

swivel

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120386

WASHER

5/16 x 3/4 x 16 ga C-Z

6шт.

120376

NUT,5/16"-18, G5

6шт.

12

475752R1

GEAR

100T

1шт.

13

487877R1

ELBOW

discharge tube

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flange lock

10шт.

14

475760R2

BRACKET

HOLDER, worm gear

1шт.

133837

SCREW, 5/16-18 x 1 C-Z slt-flt-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

15

567833R91

THRUST BEARING

worm gear shaft thrust

2шт.

16

475761R1

GEAR

WORM

1шт.

17

475758R1

PIN

SHAFT, worm gear

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

18

475753R1

CRANK

1шт.

19

487876R1

GRIP

crank handle

1шт.

20

487878R1

AUGER

ASSY, standard

1шт.

20

487879R1

AUGER ASSY, 107 in. extension

1шт.

20

487879R1

AUGER ASSY, 119 in. extension

1шт.

20

487881R1

AUGER

ASSY, 131 in. extension

1шт.

21

475749R91

TUBE

auger, standard

1шт.

21

485888R1

TUBE, auger, 107 in. extension

1шт.

21

485889R1

TUBE

auger, 119 in. extension

1шт.

21

485890R1

TUBE, auger, 131 in. extension

1шт.

22

475878R91

HOOD

unloading auger

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 znd hex-hd cap

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

1шт.

23

475877R1

BAND

holding

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 C-Z hex-hd cap

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z lock flange

1шт.

24

475956R1

SHAFT, extension

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16-14 x 3/4 sq-hd cup-pt set

2шт.

25

485932R1

AUGER ASSY, two foot extension

1шт.

25

485879R1

AUGER ASSY, three foot extension

1шт.

25

485880R1

AUGER ASSY, four foot extension

1шт.

25

485881R1

AUGER ASSY, five foot extension

1шт.

25

485882R1

AUGER ASSY, six foot extension

1шт.

26

485883R1

TUBE, auger, two foot extension

1шт.

26

485884R1

TUBE, auger, three foot extension

1шт.

26

485885R1

TUBE, auger, four foot extension

1шт.

26

485886R1

TUBE, auger, five foot extension

1шт.

26

485887R1

TUBE, auger, six foot extension

1шт.

27

487920R91

COLLAR

W/SET SCREW, bearing locking

3шт.

28

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.
