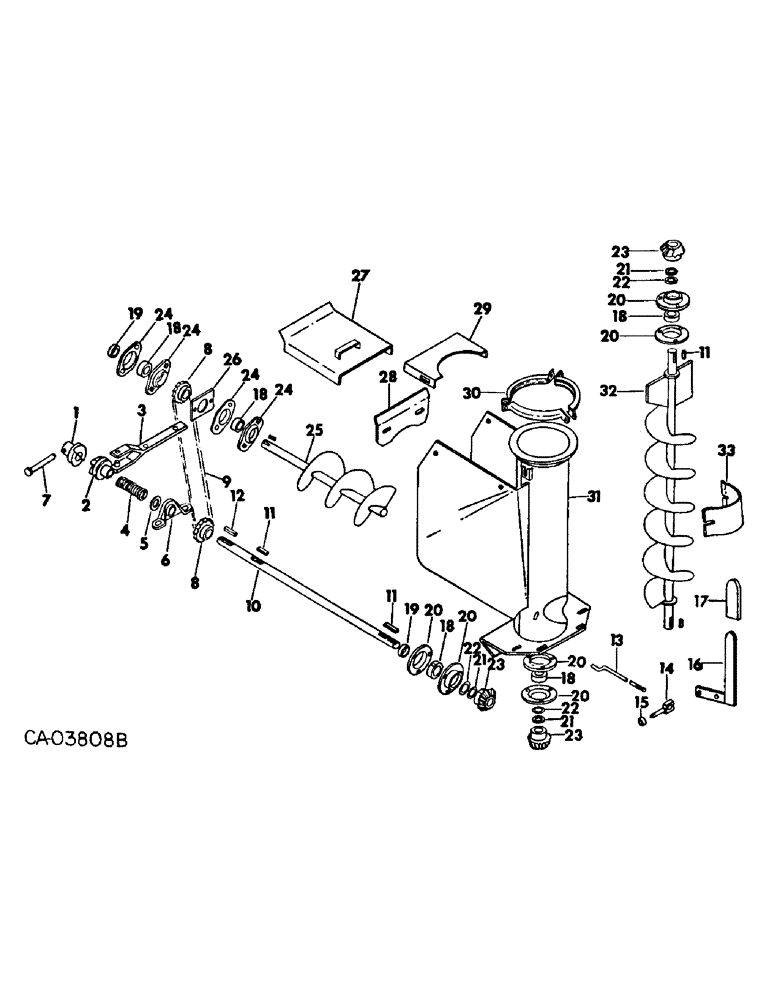

Запчасти Case IH 950 (C-20) - BACK UNLOADING AUGER, 7" AUGER & 8" TUBE, 950 S/N 2218 & ABOVE, 1150 S/N 6433 & ABOVE

1

57307C1

CLUTCH

front

1шт.

2

492100R1

CLUTCH

rear

1шт.

3

542709R1

ARM

clutch

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex lock

1шт.

4

488444R1

SPRING

clutch

1шт.

5

488445R1

WASHER

1-1/4 x 1-3/4 x 10 ga, 4 used between clutch spring and bearings, 3 used on auger shaft

7шт.

6

59128C91

BEARING ASSY,28.57mm ID

pillow block

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

57305C1

PIN

clutch retaining

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

8

487860R1

SPROCKET ASSY.

SPROCKET, 40B28

2шт.

9

CHAIN, auger drive, use 29 links from roll marked 569088R91, 1 connecting link 1301D

1шт.

10

59126C1

SHAFT

1-1/8 x 31

1шт.

11

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq-parallel

5шт.

12

617034R1

KEY,5/16" Sq x 3", Par

5/16 x 3 sq-parallel

1шт.

13

488447R1

ROD

clutch

1шт.

14

475708R1

BOLT

EYEBOLT, clutch adjustable

1шт.

15

542716R1

SPACER

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

16

542710R2

HANDLE

clutch

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 znd sq-nk crg

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex lock

1шт.

17

488448R1

GRIP

clutch handle

1шт.

18

487919R91

BEARING

ASSY LESS COLLAR, back auger shaft ball

5шт.

19

487920R91

COLLAR

W/SET SCREW, brg

2шт.

20

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

bearing mounting

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

21

487922R1

WASHER

1-1/8 x 1-5/8 x 10 ga

3шт.

22

487923R1

WASHER

1-1/8 x 1-5/8 x 12 ga

3шт.

23

487873R1

GEAR

bevel, 14T

3шт.

24

488474R1

FLANGE

bearing

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

25

59127C1

AUGER

push, replaces 57978C1

1шт.

26

59122C1

SPACER

bearing, replaces 543106R1

1шт.

27

475718R2

COVER

unloading trough

1шт.

28

59123C1

GASKET

steel

1шт.

29

57977C1

DEFLECTOR

feed trough

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

30

57973C1

CLAMP

swivel

3шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 znd hex-hd cap

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

3шт.

120376

NUT,5/16"-18, G5

3шт.

31

59125C1

TROUGH

unloading, replaces 57971C1

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

32

57972C1

AUGER

vertical

1шт.

33

475755R1

PLATE

DOOR, clean out

1шт.

7500032

BUSHING

NUT, 5/16-18 wing

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

2шт.
