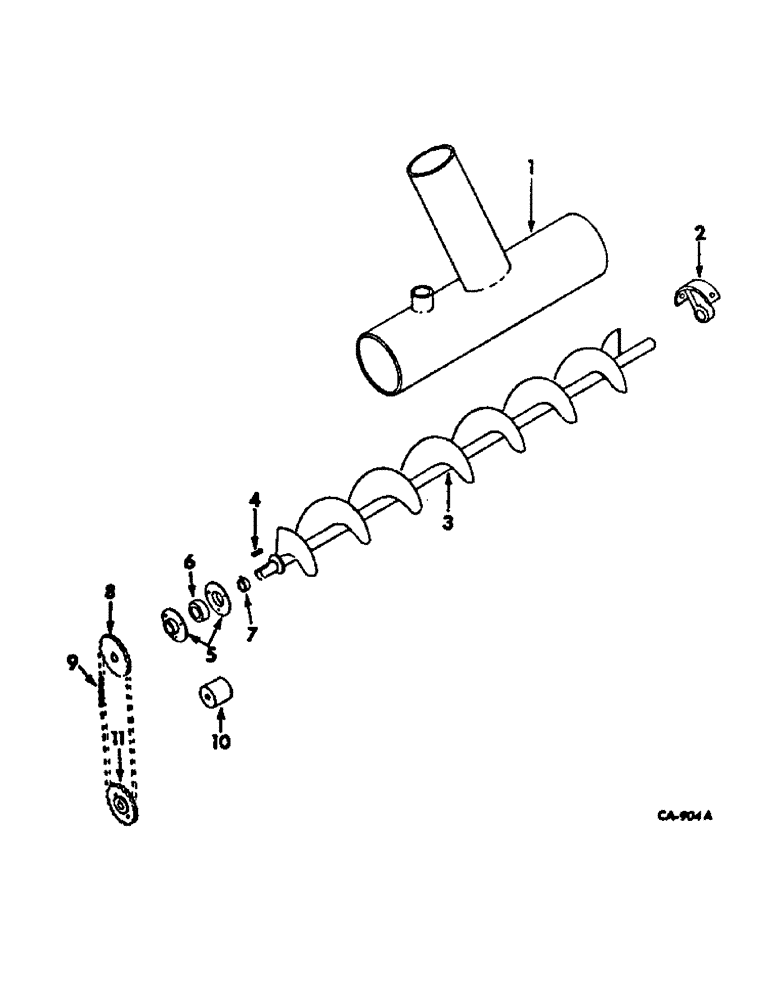

Запчасти Case IH 950 (C-17) - MIXING INTAKE AUGER

1

542654R1

TUBE, mill to mixer intake, 950 serial no. 1912 and below, 1150 serial no. 5312 and below

1шт.

1

548111R1

TUBE, mill to mixer intake, 950 serial no. 1913 to 2217, 1150 serial no., Serial Range: 5312-6432

1шт.

1

57963C1

TUBE, mill to mixer intake, 950 serial no. 2218 and above, 1150 serial no. 6433 and above

1шт.

2

487858R1

SUPPORT

BEARING, auger support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 C-Z lock

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

542655R1

AUGER

ASSY, intake

1шт.

4

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

5

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

bearing mounting

2шт.

6

487919R91

BEARING

ASSY LESS COLLAR, intake auger ball

1шт.

7

487920R91

COLLAR

W/SET SCREW, locking bearing

1шт.

8

488620R1

SPROCKET ASSY.

SPROCKET, 24T

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW, 5/16-18 x 3/4 C-Z sq-hd cup-pt set

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 C-Z hex. jam

1шт.

9

CHAIN, mixer intake auger drive, use 34 links from 10 ft roll marked 569088R91, one offset link, 457114R91 and two connecting links, 457113R91

1шт.

10

56625C1

BLOCK

chain tightener

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8-16 x 2 znd sq-nk crg

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

SPROCKET, 28T, refer to main belt, mixer and gear box drive

1шт.
