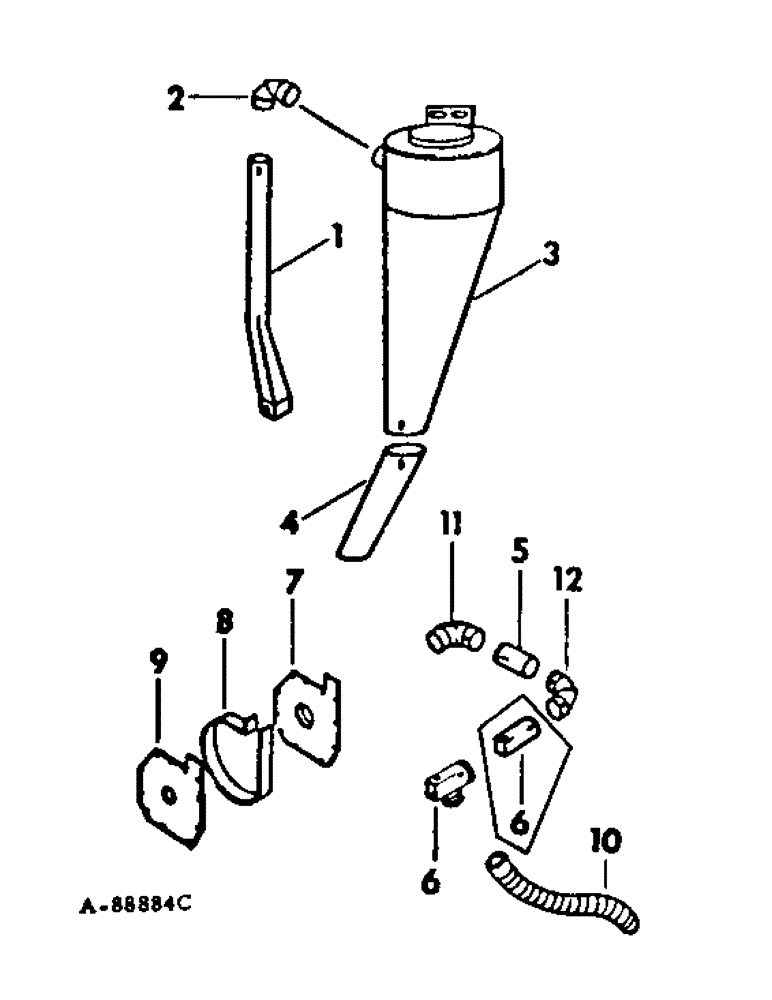

Запчасти Case IH 950 (C-14) - MILL DUST COLLECTOR

1

542657R1

TUBE

PIPE, blower to dust collector

1шт.

218359

SCREW, 5/16 x 1/2 slt hex-hd mach

2шт.

2

475790R1

PIPE

ELBOW, pipe, 4 in. 950 serial no. 1912 and below, 1150 serial no. 5312 and below

1шт.

3

475791R91

COLLECTOR ASSY, dust

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x 16 ga C-Z

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

542656R1

TUBE

PIPE, tube to dust collector coupler

1шт.

5

475797R1

PIPE, blower 4 x 8-1/2 in. long

1шт.

6

475796R1

PIPE, 4 in. x 8-1/2 in. sq one end, 950 serial no. 1912 and below, 1150 serial no. 5312 and below

1шт.

6

548112R1

PIPE, 4 in. x 10-1/2 in. sq. one end, 950 serial no. 1913 and above, 1150 serial no. 5313 and above

1шт.

7

475794R1

HOUSING, Serial Range: next-mill

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

2шт.

8

475793R1

SHROUD

HOUSING, circular fan

1шт.

18775R1

BOLT,Hex, 5/16"-18 x 5", G2

5/16 x 5 znd hex-hd mach

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

12шт.

9

475795R1

HOUSING, outside

1шт.

10

548110R1

HOSE, E-Z flex, 950 serial no. 1913 and above, 1150 serial no. 5313 and above

1шт.

11

57965C1

ELBOW, pipe 4 in., fan box, 950 serial no. 1913 and above, 1150 serial no. 5313 and above

2шт.

12

57966C1

ELBOW, pipe 4 in., mill box, 950 serial no. 1913 and above, 1150 serial no. 5313 and above

1шт.
