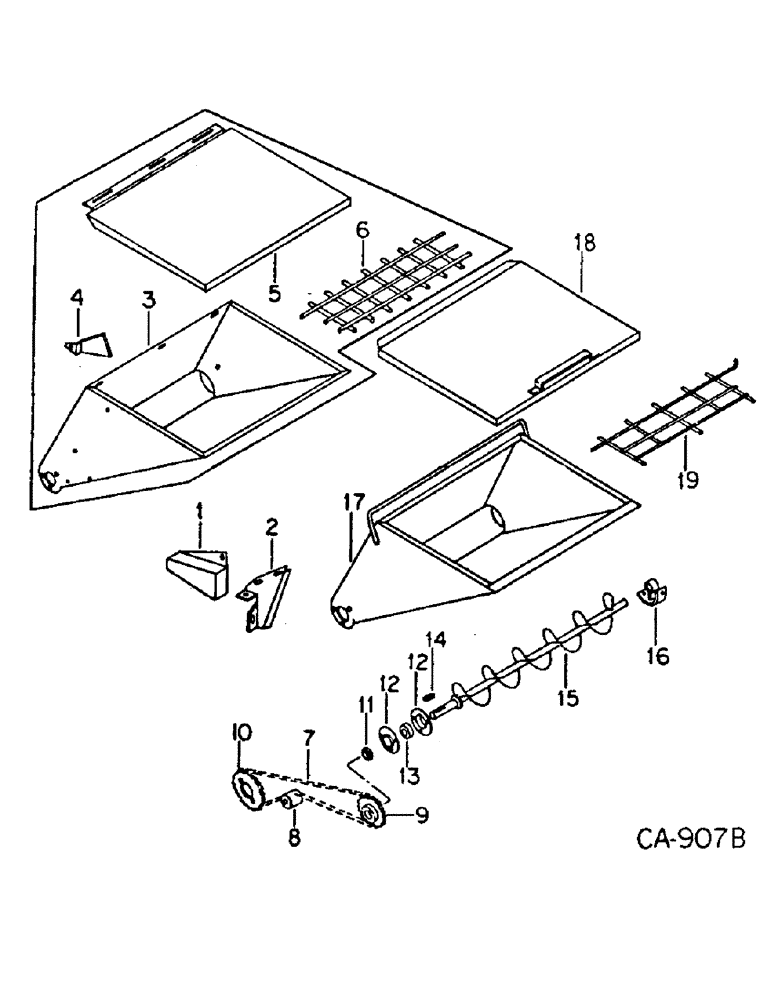

Запчасти Case IH 950 (C-13) - CONCENTRATE HOPPER

1

542591R1

SHIELD, chain drive

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

2

542592R1

BRACKET, concentrate hopper support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

488224R1

HOUSING

concentrate hopper, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

4

488225R1

LATCH, cover hold-up, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

106898

RIVET

1/4 x 1/2 truss-hd

1шт.

5

488226R1

COVER, hinged hopper, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

155338

SCREW, 1/4-20 x 1/2 C-Z cr-rec-rd-hd mach

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex. lock flange

3шт.

6

488227R2

GRATE, hopper, 950 serial no. 3991 and below, 1150 serial no. 14308 and below

1шт.

120385

WASHER,3/16"

1/4 x 9/16 x 18 ga C-Z

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

7

CHAIN, hopper auger drive, use 41 links from 10 ft roll marked 1790D, 2 connecting links 1301D and 1 offset link 1303D

1шт.

8

488228R1

BLOCK

chain tightener

1шт.

18681R1

BOLT

3/8 x 2-1/2 C-Z sq-nk crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

487860R1

SPROCKET ASSY.

SPROCKET, driven, 28T

1шт.

102883

SET SCREW

5/16-18 x 3/4 sq-hd cup-pt set

2шт.

NLS

NO LONGER SERVICED

5/16-18 hex. jam

2шт.

10

SPROCKET, refer to main belt, mixer and gear box drive

1шт.

11

487920R91

COLLAR

C0LLAR W/SET SCREW, brg

1шт.

12

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

brg mounting

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 CDP hex lock

3шт.

13

487919R91

BEARING

W/OUT COLLAR, ball

1шт.

14

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1 sq parallel

1шт.

15

488231R2

AUGER

concentrate hopper intake, 950 serial no. 2217 and below, 1150 serial no. 6432 and below

1шт.

15

57970C1

AUGER

concentrate hopper intake, 950 serial no. 2218 and above, 1150 serial no. 6533 and above

1шт.

16

488232R1

BUSHING

BEARING, nylon auger support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

17

62793C1

HOUSING, concentrate hopper, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

18

62794C1

COVER ASSY, hopper, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

3шт.

19

62795C1

GRATE ASSY, hopper, 950 serial no. 3992 and above, 1150 serial no. 14309 and above

1шт.

120385

WASHER,3/16"

.250 x .562 x .036

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.
