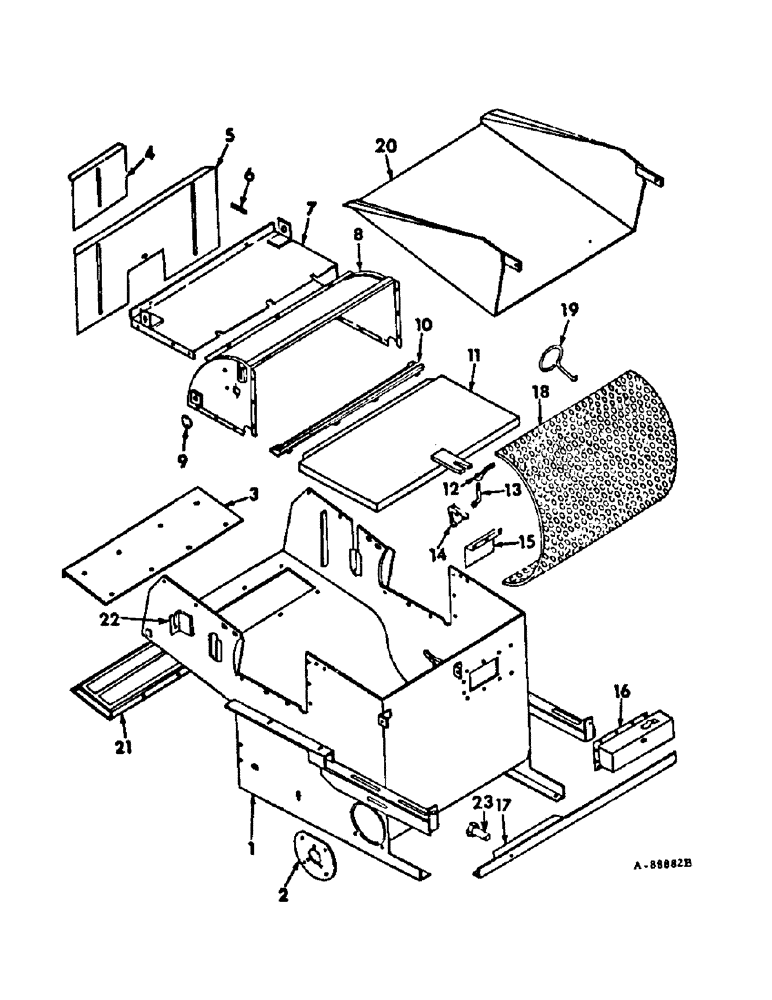

Запчасти Case IH 950 (C-11) - MILL PARTS

1

542648R2

HOUSING, main hammermill

1шт.

2

542649R1

PLATE, bearing holder & auger removal

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

4шт.

3

485862R1

SUPPORT

PLATE, magnet hole cover

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 C-Z slt-pan-hd mach

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 C-Z slt-pan-hd mach

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 C-Z flange lock

8шт.

4

475800R1

GATE, small feed control

1шт.

5

475802R1

GUIDE

GATE, large feed control

1шт.

6

475801R1

SPRING

compression

2шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

SCREW, 5/16-18 x 2-1/2 znd hex-hd cap

2шт.

142745

NUT, WING

NUT, 5/16-18 C-Z wing

2шт.

7

485863R1

COVER

roll feed

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

7шт.

8

475808R1

COVER, curved top mill

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

13шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

13шт.

9

475809R1

RETAINER

PLATE, hammer rod removal

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

2шт.

10

475798R91

BAR

screen holder

1шт.

11

475799R91

COVER

LID, mill

1шт.

12

475803R1

NUT, 7/16-14 handle

1шт.

13

475804R1

ROD

BOLT, 7/16-14 x 4 bent w/2-1/2 thd

1шт.

14

475976R1

SUPPORT, screen holder

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 znd hex-hd cap

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

6шт.

15

485864R1

BAFFLE, hammermill

1шт.

16

475807R91

HOUSING, mill blower box

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znp P/HDS mach

12шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd flange lock

12шт.

17

542650R1

BRACKET, belt tightener

1шт.

18

542049R1

SCREEN

1/8 in. holes, replaces 542048R1

1шт.

Refer to the operators manual for the various applications

1шт.

18

542050R1

SCREEN

3/16 in. holes, replaces 101320C1

1шт.

18

542051R1

SCREEN

1/4 in. holes

1шт.

18

542909R1

SCREEN

5/16 in. holes

1шт.

18

542052R1

SCREEN

3/8 in. holes

1шт.

18

542054R1

SCREEN

1/2 in. holes, replaces 542053R1

1шт.

18

542055R1

SCREEN

5/8 in. holes

1шт.

18

542056R1

SCREEN

3/4 in. holes

1шт.

18

542057R1

SCREEN

1 in. holes, replaces 101321C1

1шт.

18

542058R1

SCREEN

1-1/4 in. holes

1шт.

18

542059R1

SCREEN

1-1/2 in. holes

1шт.

18

542060R1

SCREEN

2 in. holes

1шт.

19

475805R1

HOOK

screen

1шт.

20

475806R91

HOPPER

folding mill, used only when machine is not equipped w/drag

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

21

475026R91

MAGNET ATTACHMENT, no. 2, 18 in.

1шт.

21

77985C91

MAGNET

no. 4, 18 in.

1шт.

22

543046R1

BRACKET, drive shield mtg

1шт.

23

485351R1

BOLT,Hex, 1/2" - 13 x 5", Full Thd

SCREW, 1/2 x 5 hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
