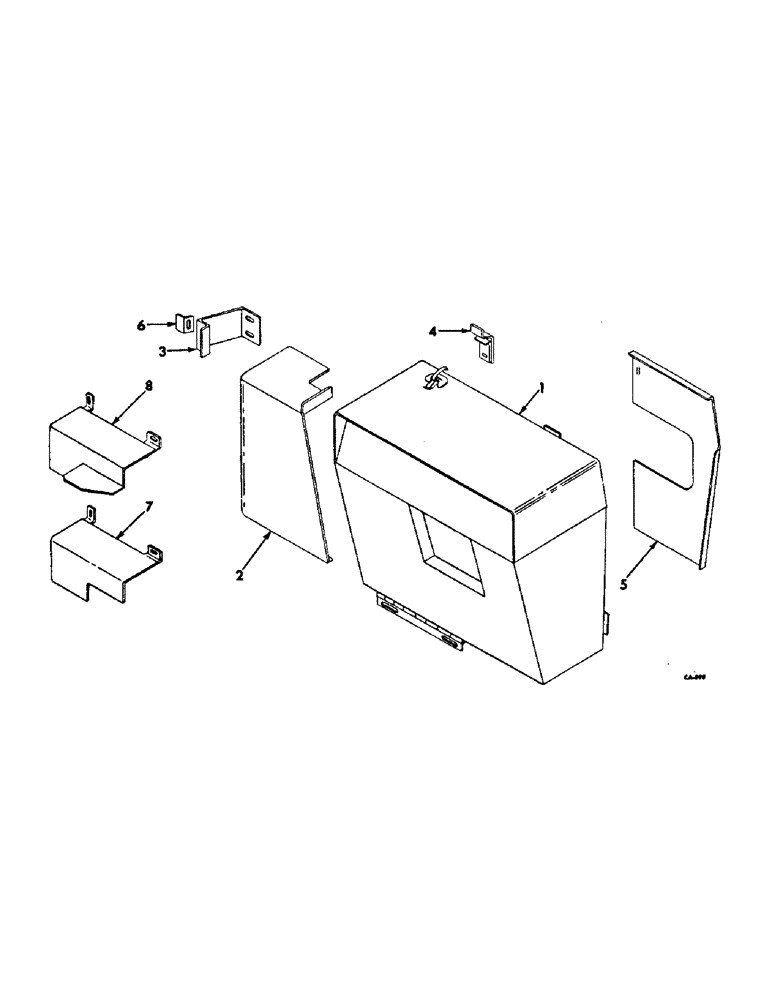

Запчасти Case IH 950 (C-08) - SHIELDS AND SUPPORTS

1

542696R2

SHIELD W/CAUTION PRODUCT GRAPHIC, main drive

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

SCREW, 5/16 x 3/4 znd sq-nk crg

2шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z flange lock

2шт.

2

542697R1

SHIELD, drag lower drive

1шт.

20705R1

WASHER

SCREW, 1/4-20 x 1/2 znd slt-pan-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

3

542698R1

SUPPORT, swinging door shield

1шт.

20705R1

WASHER

SCREW, 1/4-20 x 1/2 znd slt-pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

4

488798R1

CLIP

shield support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

SCREW, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

1шт.

5

542699R1

PLATE, main drive shield

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 znd hex-hd cap

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z flange lock

2шт.

6

488797R1

LATCH, swinging door shield

1шт.

7

542700R1

SHIELD, roll feed drive, used on machines not equipped with drags

1шт.

8

542701R1

SHIELD, drive shield, use on machines not equipped with drags or roll feeds

1шт.
