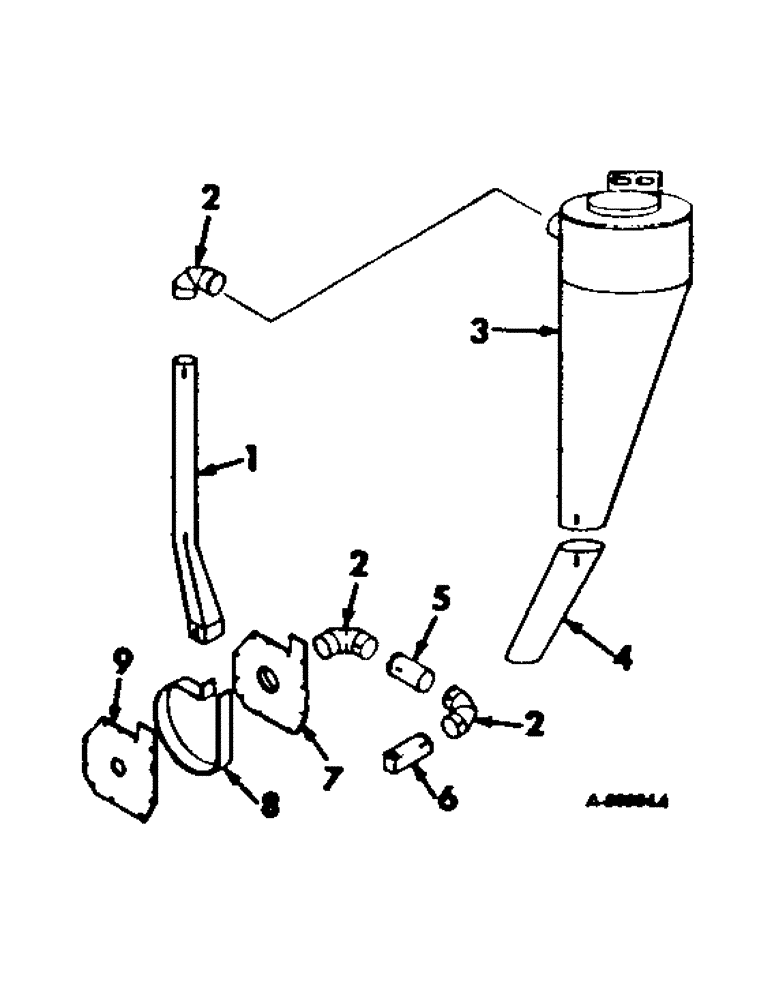

Запчасти Case IH 850 (B-08) - MILL DUST COLLECTOR

1

475789R1

PIPE, blower to dust collector

1шт.

218359

SCREW, 5/16 x 1/2 sltd hex-hd

2шт.

2

475790R1

PIPE

ELBOW, pipe, 26 ga

3шт.

3

475791R91

COLLECTOR ASSY, dust

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x 16 ga C-Z

2шт.

4

475792R1

PIPE, tube to dust collector coupler

1шт.

5

475797R1

PIPE, blower 4 x 8-1/2 in. long

1шт.

6

475796R1

PIPE, 4 in. x 8-1/2 in. sq one end

1шт.

7

475794R1

HOUSING, Serial Range: next-mill

1шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z lock flange

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

8

475793R1

SHROUD

HOUSING, circular fan

1шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z lock flange

12шт.

186274

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16-18 x 5 hex-hd mach

12шт.

9

475795R1

HOUSING, outside

1шт.
