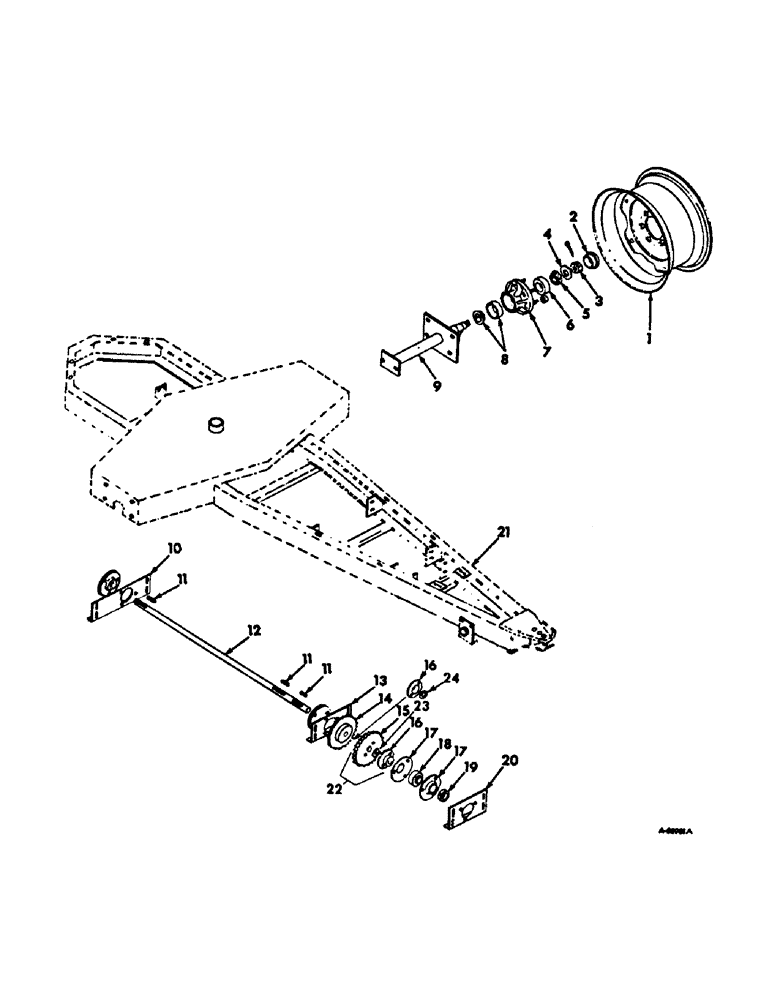

Запчасти Case IH 850 (B-05) - AXLE, WHEEL AND MIXER DRIVE

1

614424R91

WHEEL ASSY.

WHEEL, 15 x 6LB, standard

2шт.

1

481345R91

RIM

WHEEL, 14 x 6KB, special

2шт.

1

486101R2

RIM

WHEEL, 15 x 86LH, high floation special

2шт.

2

518842R1

CAP

hub

2шт.

3

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt-hex

2шт.

4

103346

WASHER

13/16 x 1-1/2 x 14 ga

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub outer cone

2шт.

6

651817R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

7

654341R91

HUB

wheel

2шт.

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT, wheel hub

12шт.

453770R1

WHEEL NUT

wheel hub bolt

12шт.

8

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

BEARING ASSY W/SEAL, wheel hub inner

2шт.

9

487856R1

SPINDLE

ASSY, wheel

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

10

487853R1

BRACKET, brg mtg

1шт.

11

586879R1

KEY

5/16 x 2 sq parallel

3шт.

12

487852R1

SHAFT

mixer drive

1шт.

13

487851R1

BRACKET, cross brg mtg

1шт.

14

487850R1

SPROCKET, 24T, up to serial no. 850, 57677175, 1050, 57677175

1шт.

14

488620R1

SPROCKET ASSY.

SPROCKET, 24T, up to serial no. 850, 57677176, 1050, 57677176

1шт.

14

541345R2

SPROCKET ASSY.

SPROCKET, 28T, from IH serial no. 850, 2248, 1050, 3520

1шт.

15

487849R1

SPROCKET, 22T, up to serial no. 850, 57677175, 1050, 57677175

1шт.

15

488518R2

SPROCKET ASSY.

SPROCKET, 25T, from serial no. 850, 576777176, 1050, 57677176

1шт.

16

487848R1

HUB

sprocket shear

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

brg

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z flange lock

3шт.

18

540061R91

BEARING ASSY,2.09" OD x 1.563"

ASSY LESS COLLAR, ball

3шт.

19

487920R91

COLLAR

W/SET SCREW, locking brg

1шт.

20

487847R1

BRACKET, front cross brg

1шт.

21

NOT AVAILABLE THRU SERVICE

1шт.

22

488516R91

SPROCKET ASSY.

SPROCKET ASSY, shear 25T

1шт.

23

488519R1

BUSHING, shear sprocket

1шт.

24

541346R1

BUSHING

1шт.
