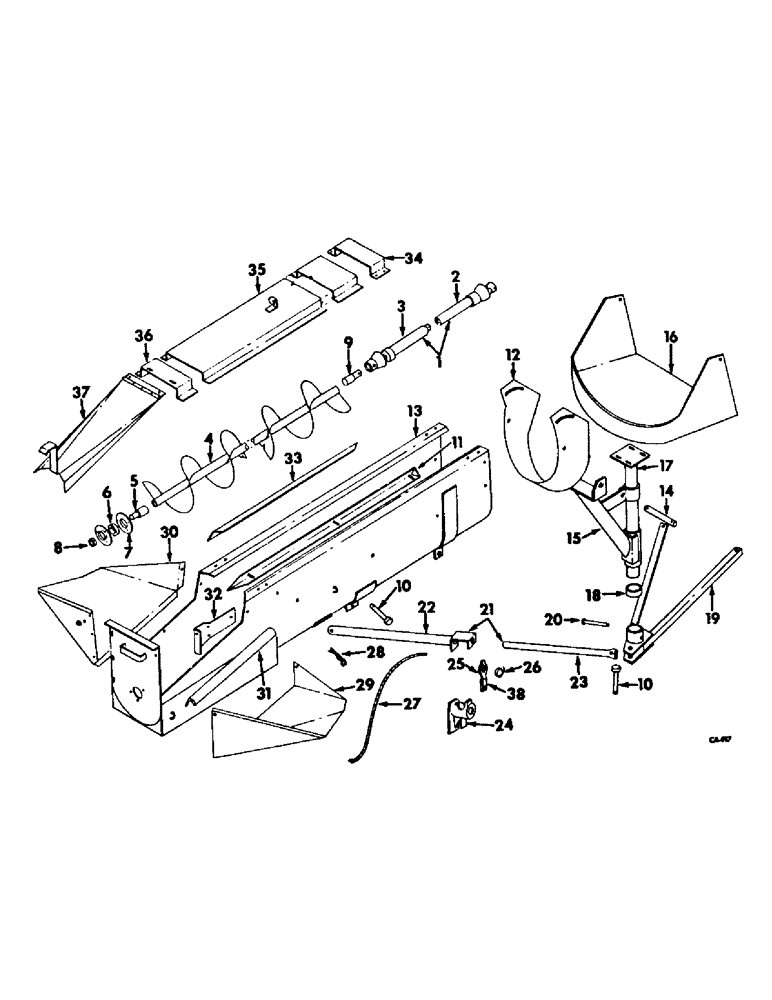

Запчасти Case IH 850 (B-03) - AUGER FEED UNIT

1

SHAFT ASSY, power drag, not serviced separately, order component parts

1шт.

2

475649R1

SHAFT

top half power drag

1шт.

3

475650R1

SHAFT

male end power drag

1шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

1шт.

4

475652R91

AUGER

ASSY, 7 ft.

1шт.

5

475653R1

SHAFT, bottom plug

1шт.

6

455965R92

BEARING

W/OUT COLLAR, ball

1шт.

7

462360R1

FLANGED BEARING

brg mounting

2шт.

632225R1

LOCK NUT

5/16-18 lock flange

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

8

668085R11

COLLAR

W/SET SCREW, brg locking

1шт.

9

475657R1

SHAFT, top plug

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

10

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN, 3/8 x 2-1/4 std-hd

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

11

475658R1

GUIDE, right side auger

1шт.

12

475659R1

SPOUT, DISCHARGE

DOWNSPOUT, auger housing

1шт.

13

475660R92

HOUSING, auger feed

1шт.

632225R1

LOCK NUT

5/16-18 whiz lock flange

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

14

475663R1

PIN

ROD, hinge

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

15

488480R1

SUPPORT, swinging auger housing

1шт.

16

475665R1

HOPPER

mill drag

1шт.

17

475666R91

SUPPORT, vertical pipe

1шт.

18

NOT USED IN THIS APPLICATION

1шт.

19

475667R1

SUPPORT, bottom swivel unit

1шт.

20

Q657

HEADED PIN,9.53mm OD x 69.85mm L

PIN, 3/8 x 2-3/4 std-hd

1шт.

21

475668R91

SUPPORT ASSY, jack

1шт.

22

475669R1

SUPPORT, top pipe

1шт.

23

475670R1

SUPPORT

bottom pipe

1шт.

24

475671R1

CLAMP

LOCK, jack

1шт.

25

485861R1

CLAMP

jack lock

4шт.

26

475672R1

SPRING

jack

1шт.

27

ROPE, 7-1/2 ft, purchase locally

1шт.

28

475674R1

PIN, transport position lock

1шт.

29

475661R1

HOPPER, panel RH

1шт.

30

475662R1

PANEL

HOPPER, panel LH

1шт.

31

485859R1

ANGLE, bottom reinforcing

1шт.

32

485860R1

PLATE, hinge and support

1шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z lock flange

6шт.

592639R1

NUT

5/16-18 C-Z locking

2шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd mach

6шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

33

488482R1

SUPPORT

ANGLE, feeder LH

1шт.

34

491374R1

BRACKET, top brace support

1шт.

35

491376R1

SHIELD, main drag auger safety

1шт.

36

491375R1

BRACKET, bottom brace support

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/8-18 x 5/8 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

37

491377R1

SHIELD, bottom drag auger safety

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

38

543116R1

CLAMP

ING WASHER W/HOLE FOR ROPE

1шт.
