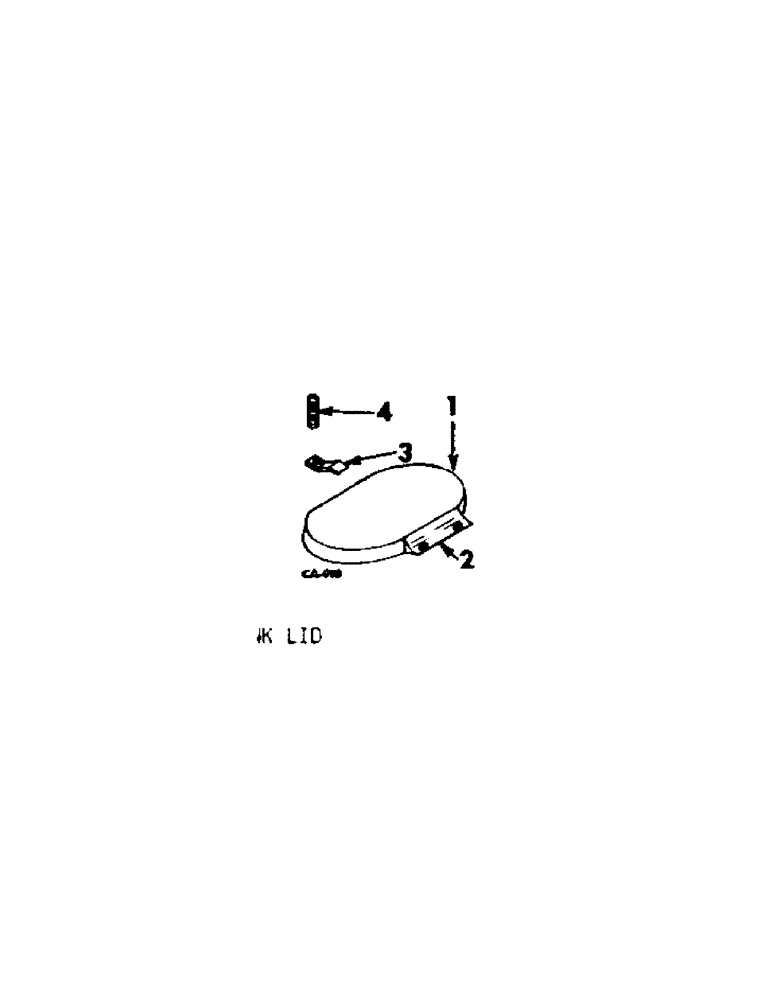

Запчасти Case IH 850 (B-28[A]) - SPRING LOADED TANK LID, PRODUCT GRAPHICS

1

490375R1

LID, mixer tank

1шт.

2

489551R2

HINGE, door

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

8шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z flange lock

4шт.

3

489552R1

BRACKET, lid hold down

2шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 C-Z hex-hd mach

2шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z flange lock

2шт.

4

475818R1

SPRING

lid hold down

2шт.

487924R92

PRODUCT GRAPHICS KIT, unit A

1шт.

487925R92

PRODUCT GRAPHICS KIT, unit B

1шт.

PRODUCT GRAPHIC 850 GRINDER MIXER, note

1шт.

PRODUCT GRAPHIC, 850 grinder mixer, note

1шт.

1000618R6

DECAL

PRODUCT GRAPHIC BE CAREFUL, on front top shield, on top hammermill door, on door, top of tank, on cleanout plate bottom of tank

4шт.

PRODUCT GRAPHIC, be careful, on front top shield right side, note

1шт.

PRODUCT GRAPHIC, level indicator 1-2-3, on lower window of tank, note

1шт.

PRODUCT GRAPHIC, level indicator 4-5-6, on middle window of tank, note

1шт.

PRODUCT GRAPHIC, level indicator 7-8-9, on upper window of tank, note

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58x7.09 (NSS), (2) IH trademark 7.68x8.27 (NSS), (2) IH trademark 10.24x11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66x3.94 (NSS), (2) IH trademark 4.39x4.72 (NSS), (2) IH trademark 5.48x5.91 (NSS)

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46x1.57 (NSS), (2) IH trademark 2.19x2.36 (NSS), (2) IH trademark 2.93x3.15 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56x.56 (NSS), (2) International 14.06x.94 (NSS), (2) International 23.12x1.50 (NSS), (2) International 35.12x2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78x2.45 (NSS), (2) model designation 14.08x4.50 (NSS), (2) model designation 20.04x7.57 (NSS), (2) model designation 15.20x7.56 (NSS)

1шт.
