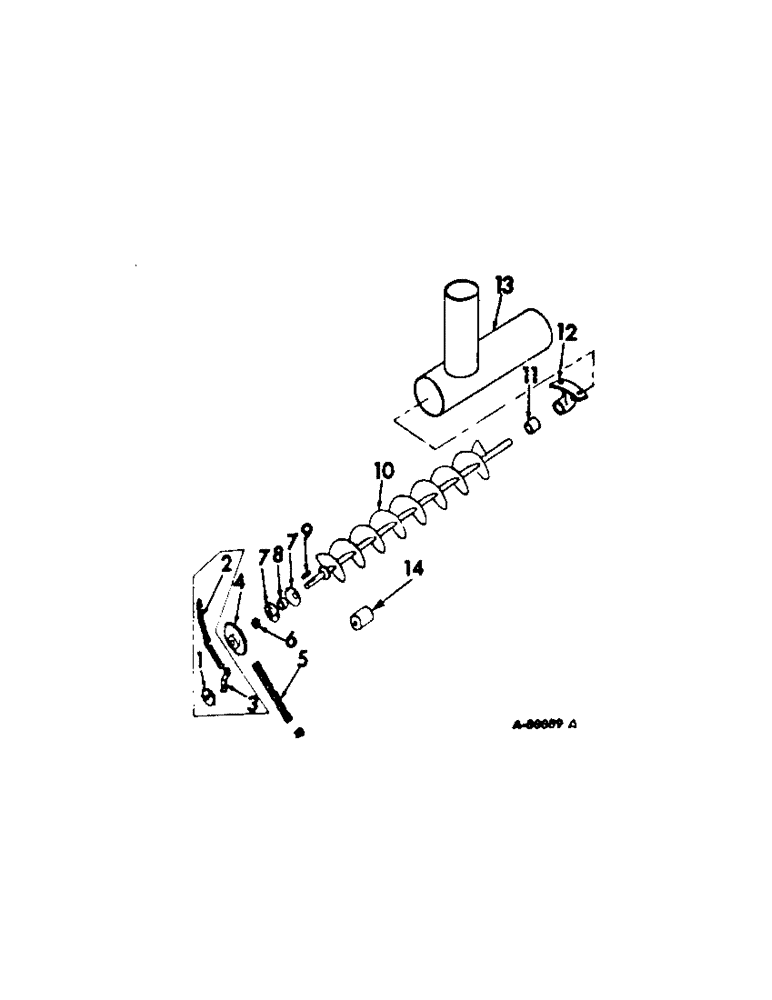

Запчасти Case IH 850 (B-27) - MIXER INTAKE AUGER

1

487863R1

IDLER, chain tightener up to IH serial no. 850, 2247, 1050, 3519

1шт.

2

475746R1

SPRING

bracket tightener up to IH serial no. 850, 2247, 1050, 3519

1шт.

3

487862R1

BRACKET, tightener up to IH serial no. 850, 2247, 1050, 3519

1шт.

475954R1

NUT

3/8-16 C-Z flange lock

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

4

487860R1

SPROCKET ASSY.

SPROCKET, 23T, up to serial no. 850, 57677175, 1050, 57677175

1шт.

4

488622R1

SPROCKET ASSY.

SPROCKET, 23T, up to serial no. 850, 57677176, 1050, 57677176

1шт.

4

487860R1

SPROCKET ASSY.

SPROCKET, 28T, from IH serial no. 850, 2248, 1050, 3520

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW, 5/16-18 x 3/4 C-Z sq-hd cup-pt set

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 C-Z hex. jam

1шт.

5

CHAIN, mixer intake auger drive, use 33 links of agricultural double pitch transmission roller link from 10 ft roll marked 569088R91, one offset link, 457114R91, and one connecting link 457113R91, up to IH serial no. 850, 2247, 1050, 3519

1шт.

5

CHAIN, mixer intake auger drive, use 27 links of agricultural double pitch transmission roller link from 10 ft roll marked 569088R91, one offset link 457114R91 and one connecting link 457113R91, from IH serial no. 850, 2248, 1050, 3520

1шт.

6

487920R91

COLLAR

COLLER W/SET SCREW, locking brg

1шт.

7

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

brg mounting

2шт.

8

487919R91

BEARING

ASSY, L/collar intake auger ball

1шт.

9

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

10

487859R1

AUGER

ASSY, intake

1шт.

11

486720R1

BUSHING, auger support

1шт.

12

487858R1

SUPPORT

BEARING, auger support nylon

1шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z flanged lock

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

13

475883R91

TUBE, mill to mixer intake

1шт.

14

488228R1

BLOCK

chain tightener from IH serial no. 850, 2248, 1050, 3520

1шт.

20897R1

BOLT,Short NK, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 znd sq-nk crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.
