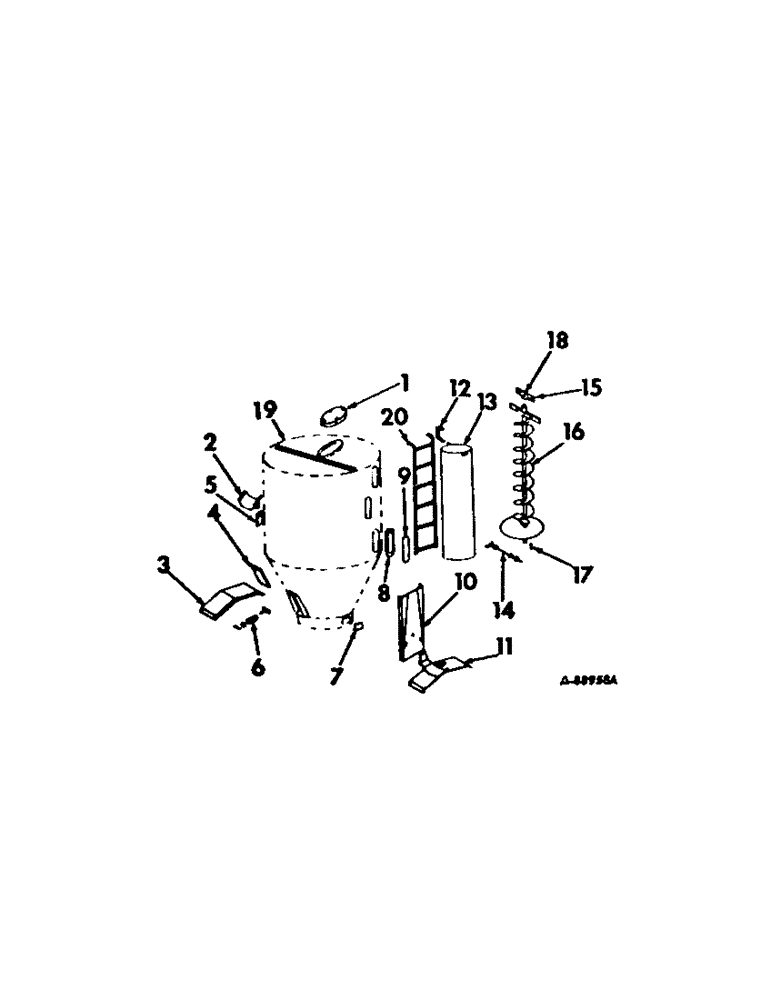

Запчасти Case IH 850 (B-26) - MIXING TANK, AUGER, FENDERS AND LADDER

1

490375R1

LID, mixer tank, replaces 481696R91

1шт.

2

488465R2

SUPPORT

unloading auger

1шт.

3

488486R1

FENDER, LH

1шт.

4

475817R91

DOOR

unloading slide

1шт.

5

475820R1

HOLDER

slide door

1шт.

U5348

PIN

1/4 x 1-1/2 std-hd

1шт.

137141

AXLE PIN

PIN, 1/16 x 5/8 C-Z cot.

1шт.

120387

WASHER,3/8" x 3/4" x .060"

3/8 x 7/8 x 16 ga C-Z

1шт.

6

475818R1

SPRING

door holder

1шт.

7

475819R1

DOOR, mixer cleanout

1шт.

8

FRAME, rubber window, use 32 in. from bulk roll, 64515C1

1шт.

9

476199R1

GLASS

window

3шт.

10

488466R1

BRACE, tank side LH

1шт.

10

488467R1

BRACE, tank side RH

1шт.

11

488487R1

FENDER W/AUGER TRANSPORT BRACKET

1шт.

12

485866R1

SUPPORT TUBE

SUPPORT, auger tube

2шт.

NLS

NO LONGER SERVICED

NUT, 5/16-14 C-Z hex.

4шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 C-Z hex-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

13

488468R1

TUBE, mixing auger, for 850 grinder mixer

1шт.

13

488469R1

TUBE, mixing auger, for 1050 grinder mixer

1шт.

14

488470R1

ROD, tube support

1шт.

15

475812R1

BEARING, brass

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

120387

WASHER,3/8" x 3/4" x .060"

3/8 C-Z med lock

2шт.

16

56200C1

AUGER, mixing, for 850 grinder mixer, also order bearing, 542688R1

1шт.

16

56201C1

AUGER

mixing, for 1050 grinder mixer, also order bearing, 542688R1

1шт.

17

Q55

KEY,3/8" Sq x 2", Par

3/8 x 2 sq parallel

1шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

19

NOT AVAILABLE THRU SERVICE

1шт.

20

488804R1

LADDER

attachment, special

1шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 C-Z mach

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
