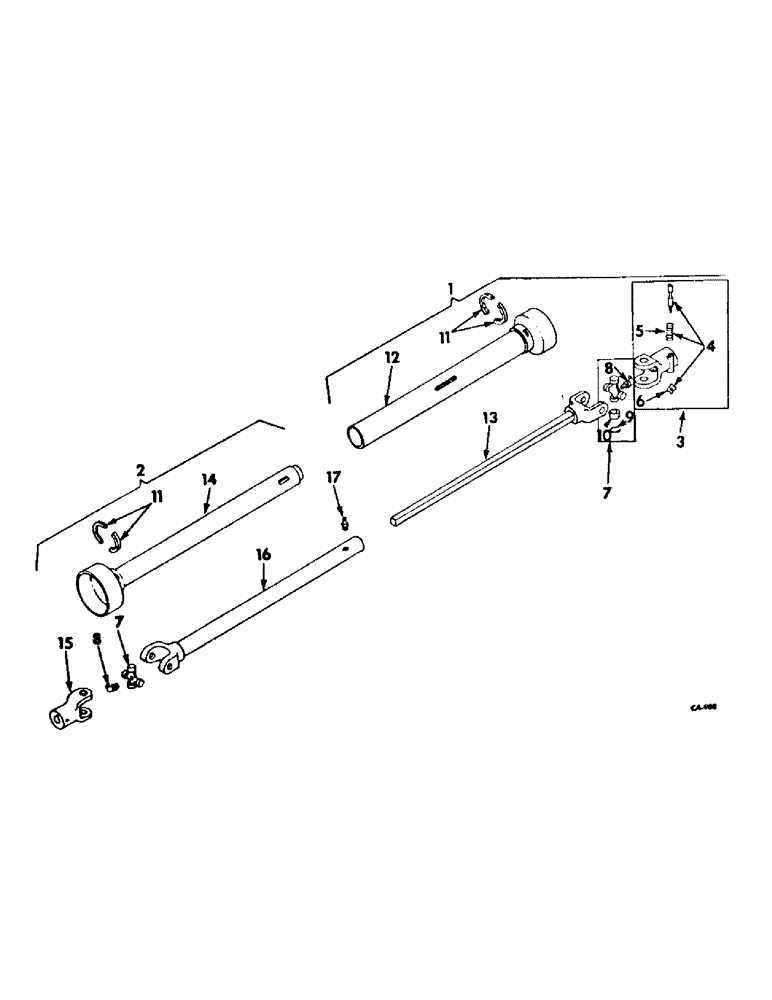

Запчасти Case IH 850 (B-25) - UNIVERSAL JOINTS, HEAVY DUTY, 1969

1

493828R91

JOINT

ASSY, single universal shielded, front half, tractor end, for 540 RPM-PTO

1шт.

1

493829R91

JOINT

ASSY, single universal shielded, front half, tractor end, for 1000 RPM-PTO

1шт.

2

493830R91

JOINT

ASSY, single universal shields rear half, implement end, for 540 or 1000 RPM-PTO

1шт.

3

493850R91

YOKE

ASSY, quick detachable, for 540 RPM-PTO

1шт.

3

493851R91

YOKE

ASSY, quick detachable, for 1000 RPM-PTO

1шт.

4

455346R21

PIN

ASSY, locking

1шт.

5

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

6

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

locking pin X

1шт.

7

493849R91

KIT

center cross

1шт.

8

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg angle lub

1шт.

9

540057R1

RING

retaining

4шт.

10

540058R1

BEARING

ASSY, needle

4шт.

11

493848R1

BEARING HALF

nylon

2шт.

12

493848R1

BEARING HALF

outer

1шт.

13

493831R1

YOKE

W/SHAFT

1шт.

14

493834R1

SHIELD

inner

1шт.

15

493835R1

YOKE

1шт.

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

Q63

KEY,3/8" Sq x 1 1/2", Par

3/8 x 1-1/2 sq parallel

1шт.

16

493832R1

TUBE

YOKE W/TUBE

1шт.

17

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF-2 str lub

1шт.
