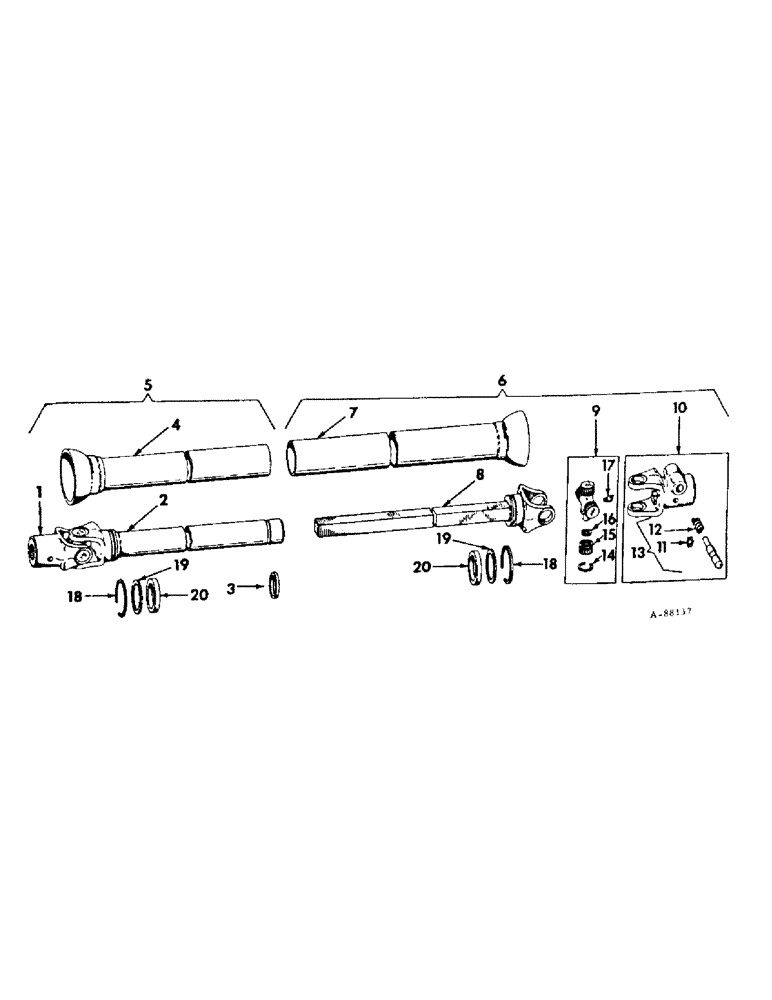

Запчасти Case IH 850 (B-24) - UNIVERSAL JOINTS, STANDARD, 1969

1

485943R1

YOKE

1шт.

2

492485R1

YOKE

W/TUBE

1шт.

3

613439R1

BRACKET

BEARING, support

1шт.

4

492486R1

SHIELD

inner

1шт.

5

492488R91

JOINT ASSY, single universal shielded rear half, implement end, for 540 or 1000 RPM-PTO

1шт.

6

492489R91

JOINT ASSY, single universal shielded front half, tractor end, for 540 RPM-PTO

1шт.

6

492487R91

JOINT ASSY, single universal shielded front half, tractor end, for 1000 RPM-PTO

1шт.

7

492484R1

SHIELD

outer

1шт.

8

492483R1

YOKE W/SHAFT

1шт.

9

347960R91

U-JOINT SPIDER

KIT, center cross

1шт.

10

660484R21

FORK

YOKE ASSY, quick detachable, for 540 RPM-PTO

1шт.

10

583876R11

YOKE

ASSY, quick detachable, for 1000 RPM-PTO

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

locking pin X

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin, for 1000 RPM-PTO

1шт.

12

587479R1

SPRING

locking pin, for 540 RPM-PTO

1шт.

13

455346R21

PIN

ASSY, locking, for 540 RPM-PTO

1шт.

13

631976R91

PIN

ASSY, locking, for 1000 RPM-PTO

1шт.

14

495962R1

RING

snap

4шт.

15

669563R91

NEEDLE BEARING

CUP ASSY, needle brg

4шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg angle lub

1шт.

18

613436R1

CLAMP

RING, snap

1шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

1шт.

20

461346R1

BEARING

nylon

1шт.
