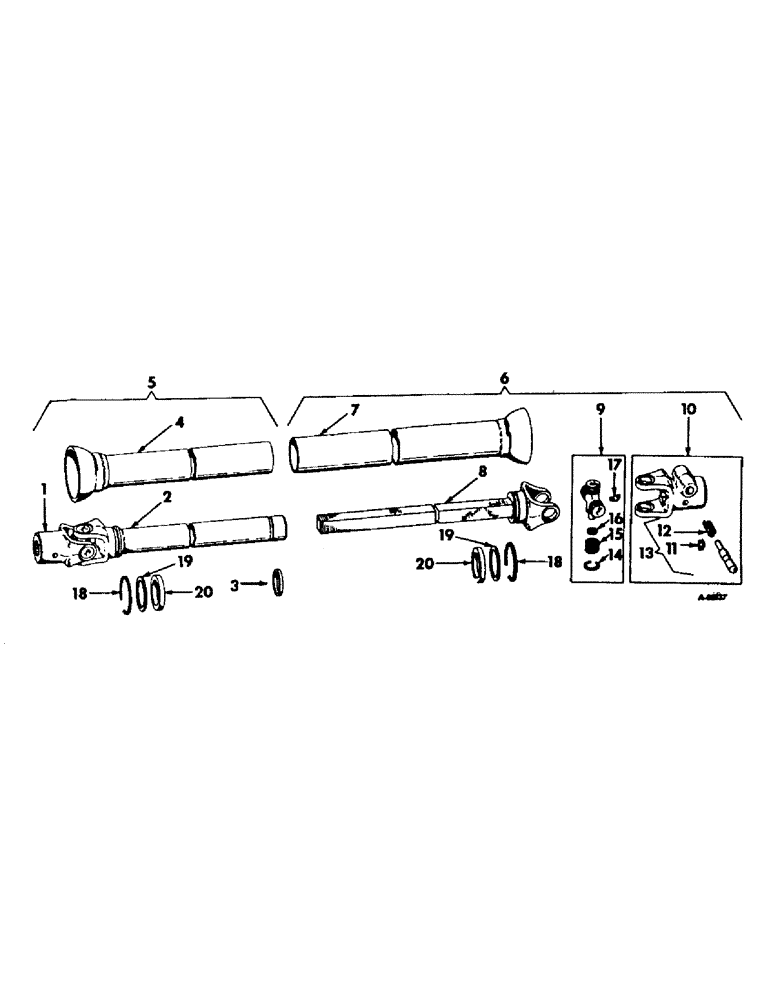

Запчасти Case IH 850 (B-23) - POWER DRIVE AND SHIELDS, 1967 TO 1968

1

485943R1

YOKE

for 540 or 1000 RPM-PTO

1шт.

PO14564

AXLE PIN

PIN, 5/16 x 2-3/4 std-hd

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

2

475828R91

YOKE W/SLEEVE ASSY, tube, for 540 or 1000 RPM-PTO

1шт.

3

613439R1

BRACKET

SUPPORT, nylon, for 540 or 1000 RPM-PTO

1шт.

4

475829R91

SHIELD, inner, for 540 or 1000 RPM-PTO

1шт.

5

485942R91

JOINT ASSY, rear half of double universal, implement end, for 540 or 1000 RPM-PTO

1шт.

6

480435R91

JOINT ASSY, front half of double universal, tractor end, for 540 RPM-PTO

1шт.

6

485940R91

JOINT ASSY, front half of double universal, tractor end, for 1000 RPM-PTO

1шт.

7

475830R91

SHIELD, outer, for 540 or 1000 RPM-PTO

1шт.

8

475831R91

YOKE W/SHAFT, for 540 or 1000 RPM-PTO

1шт.

9

347960R91

U-JOINT SPIDER

CENTER CROSS ASSY, for 540 or 1000 RPM-PTO

1шт.

10

660484R21

FORK

YOKE ASSY, quick detachable, 1-3/8 spline, for 540 RPM-PTO

1шт.

10

583876R11

YOKE

ASSY, quick detachable, 1-3/8 spline, for 1000 RPM-PTO

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin, for 540 or 1000 RPM-PTO

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin, for 540 or 1000 RPM-PTO

1шт.

13

455346R21

PIN

W/SPRING AND X-WASHER, locking, for 540 RPM-PTO

1шт.

13

631976R91

PIN

W/SPRING AND X-WASHER, locking, for 1000 RPM-PTO

1шт.

14

495962R1

RING

SNAP RING, for 540 or 1000 RPM-PTO

8шт.

15

669563R91

NEEDLE BEARING

ASSY, needle, for 540 or 1000 RPM-PTO

8шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-65 deg elbow lub, for 540 or 1000 RPM-PTO

1шт.

18

613436R1

CLAMP

RING, shield retaining, for 540 or 1000 RPM-PTO

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust, for 540 or 1000 RPM-PTO

2шт.

20

461346R1

BEARING

nylon, for 540 or 1000 RPM-PTO

2шт.
