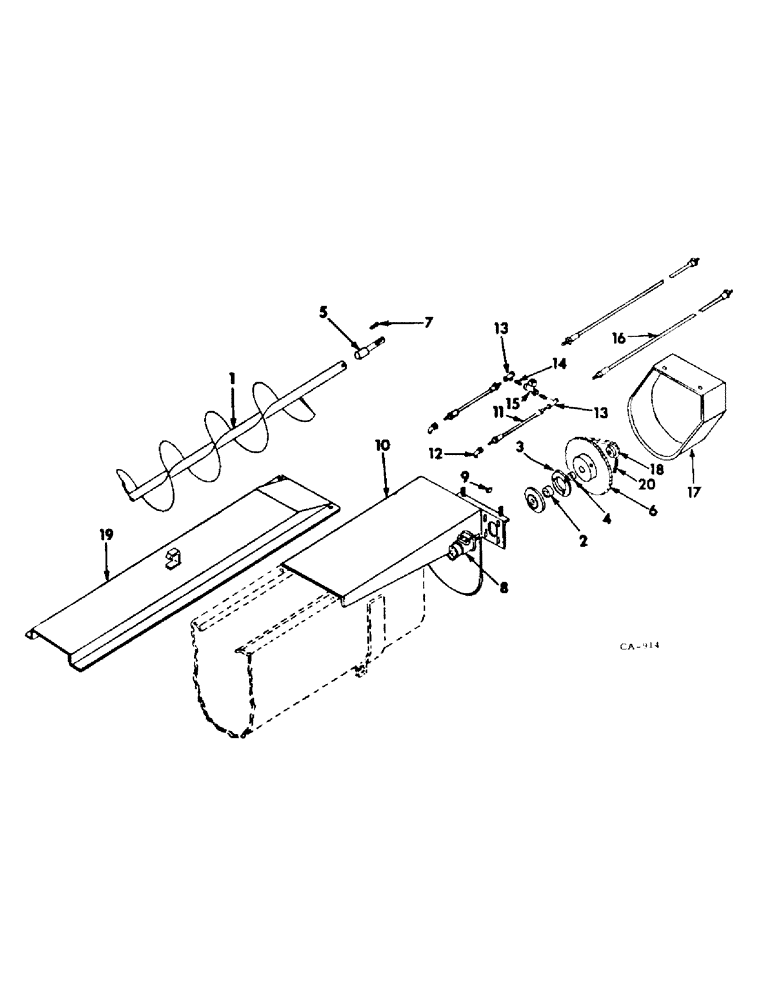

Запчасти Case IH 850 (B-21) - HYDRAULIC AUGER FEEDER, ATTACHMENT

1

485967R1

AUGER

ASSY, 7 ft

1шт.

2

455965R92

BEARING

W/OUT COLLAR AUGER, ball

1шт.

3

462360R1

FLANGED BEARING

brg mounting

2шт.

475852R1

LOCK NUT

NUT, 5/16-18 lock flange

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

6шт.

4

668085R11

COLLAR

W/SET SCREW, brg locking

1шт.

5

485968R1

SHAFT, top plug

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

2шт.

6

485969R1

SPROCKET ASSY.

SPROCKET, 48T

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 cup-pt soc-hd set

1шт.

7

Q53

KEY,1/4" Sq x 1", Par

1шт.

8

485963R91

MOTOR, ELECTRIC

MOTOR, hyd

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

1 x 13/32 x 16 ga C-Z

4шт.

9

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff

1шт.

10

485964R1

SUPPORT, hyd auger top

1шт.

475852R1

LOCK NUT

NUT, 5/16-18 lock flange

7шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

7шт.

11

485970R1

HOSE, 1/2 x 1 ft long hyd

2шт.

12

127961

DEFLECTOR

1/2 x 90 deg street

1шт.

13

138105

TEE,1/2" NPT, Fem

1/2 pipe

2шт.

14

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 in. close pipe

2шт.

15

485965R1

VALVE, 1/2 in. gate

1шт.

16

643226R91

HOSE ASSY.

HOSE, 1/2 x 12 ft. hyd

2шт.

17

485966R1

SHIELD, chain and sprocket

1шт.

18

488492R1

SPROCKET ASSY.

SPROCKET, 13T

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

1шт.

19

542707R1

SHIELD, main drag auger safety

1шт.

20

CHAIN, auger drive chain, use 70 links of 1/2 standard pitch roller chain from 10 ft. rolls marked 1790D and one connecting link, 1301D

1шт.
