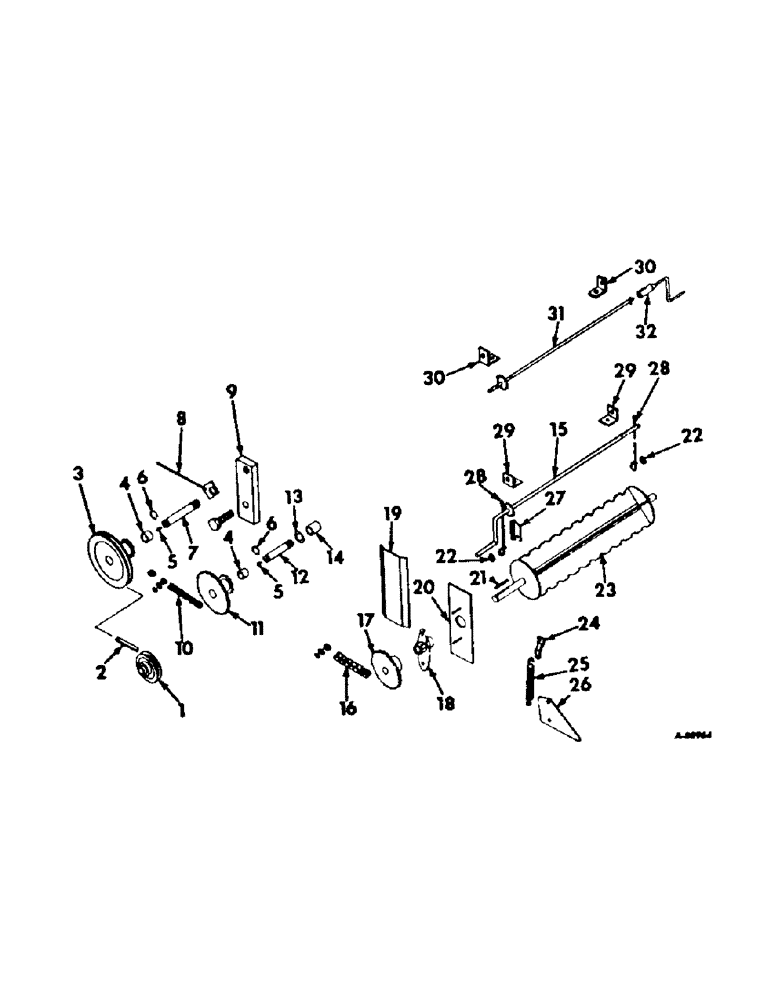

Запчасти Case IH 850 (B-20) - ROLL FEED AND CABLE HOLDUP

1

488483R1

PULLEY, adj

1шт.

2

475834R1

V-BELT 0.50" W x 53.84" L 0.50" W x 53.84" L

1шт.

3

475836R91

PULLEY & SPROCKET ASSY

1шт.

4

475689R1

BUSHING

1 x 1-1/4 x 1-1/4 brass

2шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

6

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

7

475837R1

SHAFT, 1 x 4-1/2 thd

1шт.

8

475839R91

ROD, tightening

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

475838R1

PLATE

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8 x 1-3/4 hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

130998

WASHER,9/16"

5/8 x 1-1/2 x 12 ga C-Z

1шт.

10

CHAIN, roll feed, use 22 links of 1 extended pitch agricultural transmission roller chain from 10 ft. rolls marked 569088R91, 2 connecting links, 457113R91 and 1 offset link, 457114R91

1шт.

11

475841R91

SPROCKET ASSY

1шт.

12

475840R1

SHAFT, 1 OD x 4 in. LH thd

1шт.

13

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

2шт.

14

581329R1

SPACER, 1 x 1-1/4 pipe

1шт.

15

485928R1

CRANKSHAFT

AND RATCHET ASSY

1шт.

16

CHAIN, roll feed, use 21 links of 1-1/4 extended pitch agricultural transmission roller chain from 10 ft. rolls marked 569084R91, 1 connecting link, 456980R91 and 2 offset links, 456929R91

1шт.

17

475844R1

SPROCKET ASSY.

SPROCKET, 28T

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

1шт.

18

475845R1

BEARING,1.072" ID

2шт.

19

475848R1

COVER

2шт.

20

475846R91

PLATE

ASSY

2шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z lock flange

4шт.

21

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1-1/4 sq parallel

1шт.

22

488500R1

WASHER, lock

2шт.

23

475847R91

HEAD

roll feed

1шт.

24

485870R1

SUPPORT

HOLDER, spring top

2шт.

25

485872R1

SPRING

holdup

2шт.

26

485869R1

SUPPORT

HOLDER, spring bottom

2шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z lock flange

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

4шт.

27

485867R1

SUPPORT

BRACKET, locking

1шт.

28

485871R1

CABLE

hold up 12 in.

2шт.

29

485868R1

SUPPORT, crankshaft

2шт.

30

485873R1

HOLDER, crank bracket, note

1шт.

31

485929R1

SHAFT ASSY, for crank, note

1шт.

32

485874R1

CRANK, note

1шт.
