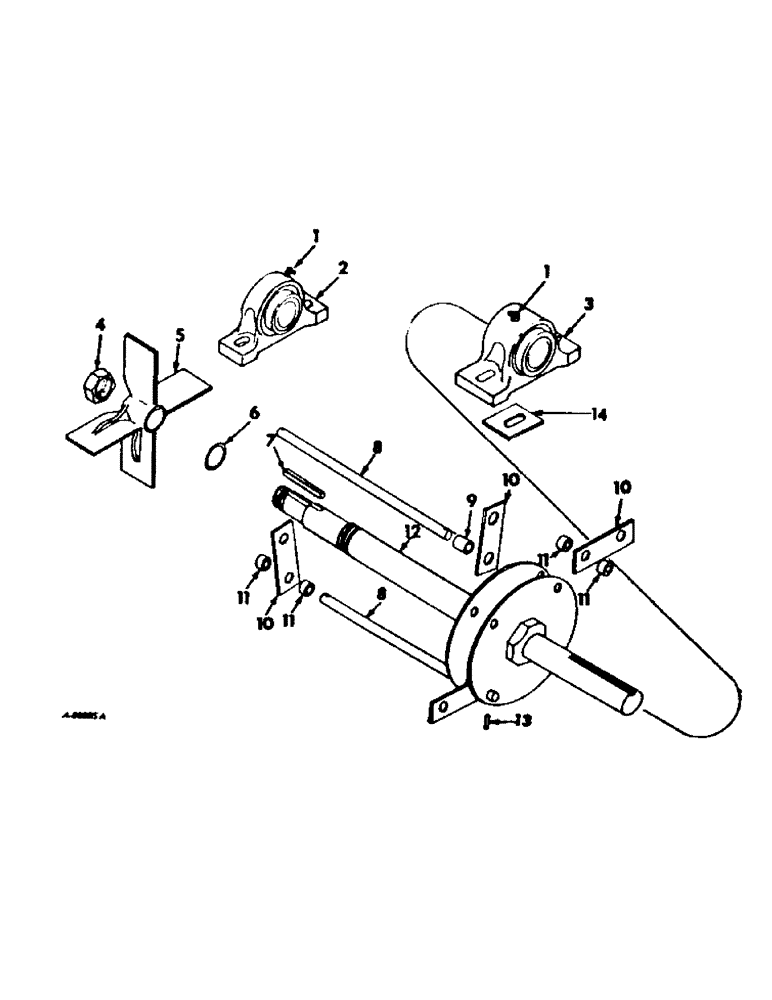

Запчасти Case IH 850 (B-16) - HAMMER MILL SHAFT

1

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, 1/8-27 PTF angle lub

2шт.

2

475764R91

BEARING ASSY,5" OD x 2.38"

BEARING ASSY, pillow block ball rear

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

130998

WASHER,9/16"

5/8 x 1-1/2 x 12 ga C-Z

4шт.

3

485936R91

BEARING CARRIER

BEARING ASSY, pillow block, front

1шт.

4

219779

CLUTCH

1-1/2 hex. jam

1шт.

5

475768R1

FAN

blower

1шт.

6

487915R1

WASHER

1-1/2 x 2 x 10 ga

1шт.

7

Q87

KEY,3/8" Sq x 1 1/2", Par

3/8 x 1-1/4 sq parallel

1шт.

8

475766R1

ROD

hammer

4шт.

9

582542R1

SPACER,3/4" Pipe x 1 1/4"

hammer

18шт.

10

476672R91

HAMMER

2шт.

10

491393R91

PACKAGE

HAMMERS, set of 36

1шт.

11

555696R1

SPACER,3/4" Pipe x 5/8"

hammer

36шт.

12

487857R91

SHAFT

ROTOR ASSY

1шт.

13

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

8шт.

14

542653R1

GASKET

seating

1шт.
