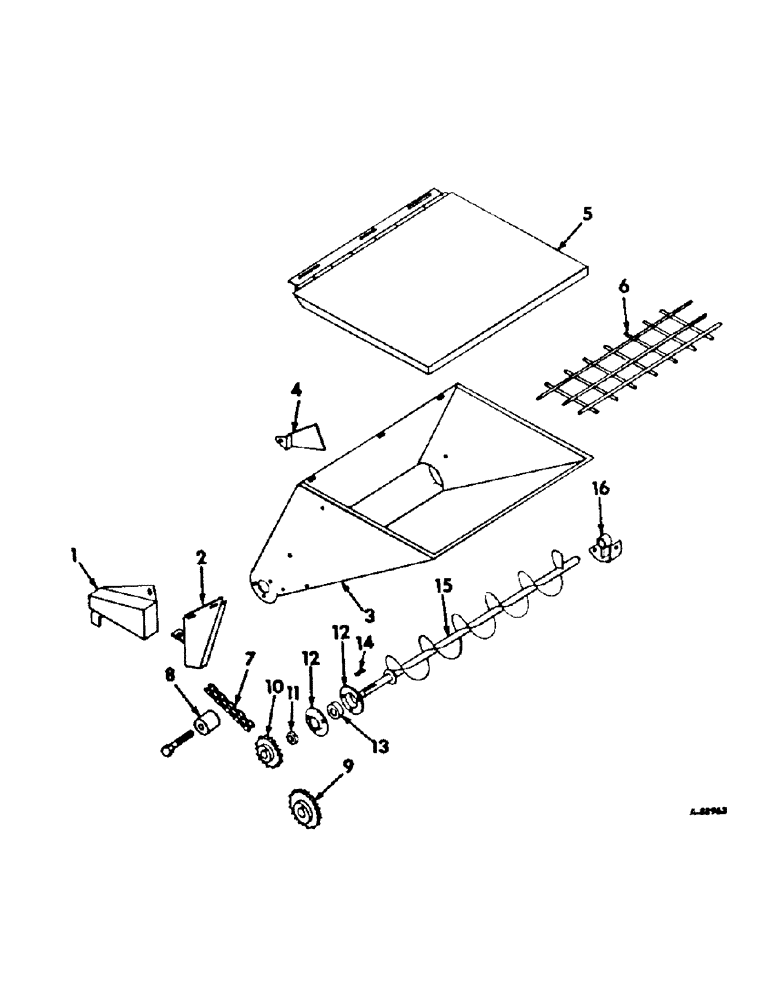

Запчасти Case IH 850 (B-15) - CONCENTRATE HOPPER

1

488222R1

SHIELD, chain drive

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

488223R1

BRACKET, concentrate hopper support

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

3

488224R1

HOUSING

concentrate hopper

1шт.

4

488225R1

LATCH, cover hold-up

1шт.

106898

RIVET

1/4 x 1/2 truss-hd

1шт.

5

488226R1

COVER, hinged hopper

1шт.

937060R1

LOCK NUT

NUT, 1/4-20 C-Z lock flange

3шт.

155338

SCREW, 1/4-20 x 1/2 C-Z cr-rec-rd-hd mach

3шт.

6

488227R2

GRATE, hopper

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

120385

WASHER,3/16"

1/4 x 9/16 x 18 ga C-Z

2шт.

7

CHAIN, hopper auger drive, use 43 links of 1/2 standard roller chain from a 10 ft roll marked, 1790D, 1 connecting link, 1301D and 2 offset links, 1303D

1шт.

8

488228R1

BLOCK

chain tightener

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

487850R1

SPROCKET, 28T

1шт.

105111

FITTING

SCREW, 5/16-18 x 3/8 sq-hd cup-pt set

1шт.

10

487860R1

SPROCKET ASSY.

SPROCKET, auger drive, 28T

1шт.

105111

FITTING

SCREW, 5/16-18 x 3/4 sq-hd cup-pt set

1шт.

11

487920R91

COLLAR

W/SET SCREW, brg locking

1шт.

12

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

brg mounting

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

487919R91

BEARING

W/OUT COLLAR, ball

1шт.

14

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1 sq parallel

1шт.

15

488231R2

AUGER

concentrate hopper intake

1шт.

16

488232R1

BUSHING

BEARING, nylon auger support

1шт.

109084

NUT,1/4"-20, G5

2шт.

120572

SCREW, 1/4-20 x 3/4 slt-rd-hd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
