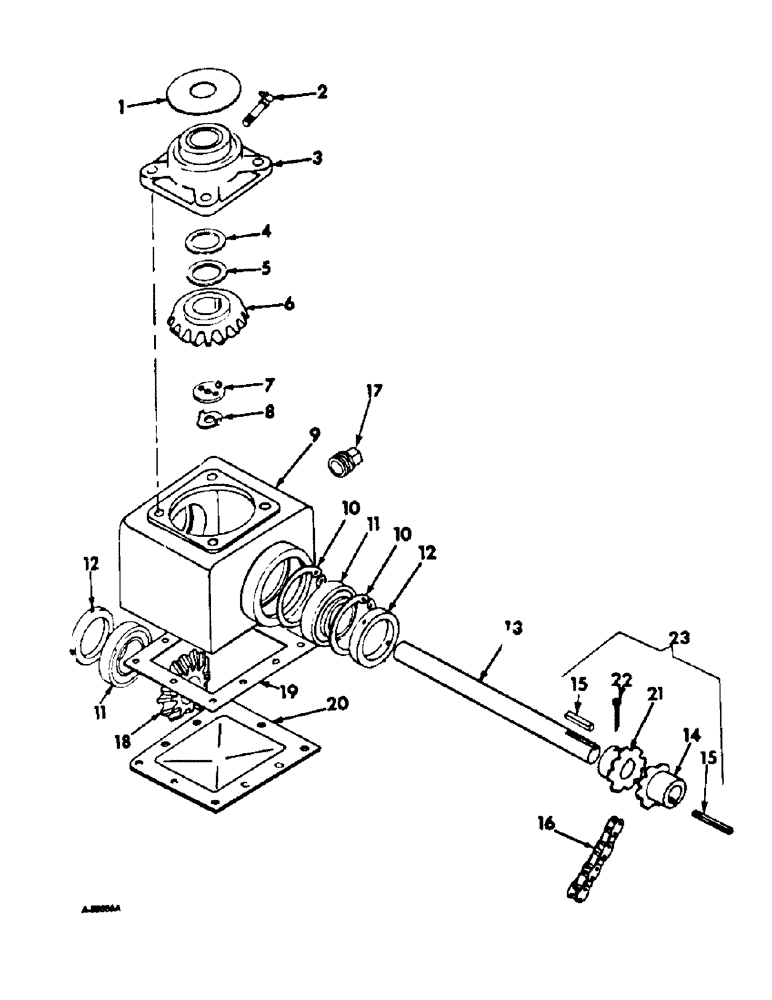

Запчасти Case IH 850 (B-13) - GEAR BOX

1

475775R1

WASHER

PLATE, brg protector

1шт.

2

273352

SCREW

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

3

487921R91

FLANGED BEARING

ASSY, flanged cartridge

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 C-Z hex-hd cap

4шт.

102384

HYDRAULIC VALVE

WASHER, 1/2 C-Z med lock

4шт.

4

488488R1

WASHER

1-5/8 x 2-1/4 x 10 ga

1шт.

5

488489R1

WASHER, 1-5/8 x 2-1/4 x 18 ga

1шт.

6

487865R1

GEAR

bevel, 17T

1шт.

7

487867R1

LOCK WASHER

WASHER, locking

1шт.

8

475781R1

WASHER

BOLT, lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

487864R1

CASE

BOX, gear

1шт.

10

488490R1

RING

retaining

2шт.

11

487927R91

BALL BEARING,31.75mm ID x 72mm OD x 17mm W

ASSY, less collar

2шт.

12

487928R91

BEARING SET,2.8348" OD x 1.76"

COLLAR W/SET SCREW, brg, locking

2шт.

13

487869R1

SHAFT, gear box

1шт.

14

487868R1

GEAR

coupler, 8T, up to serial no. 850, 57677175, 1050, 57677175, order coupler, 542652R1 and pin 657196R1

1шт.

14

488607R1

SPROCKET ASSY.

GEAR, coupler, 8T, from serial no. 850, 57677176, 1050, 57677176, order coupler, 542652R1 and pin 657196R1

1шт.

15

586879R1

KEY

5/16 x 2 sq parallel

2шт.

16

CHAIN, main line coupler, up to serial no. 850, 57677175, 1050, 57677175, use 7 agricultural double 1-1/4 pitch link from 10 ft roll marked 569089R91 and one connecting link 587372R1

1шт.

16

CHAIN, main line coupler, from serial no. 850, 57677176, 1050, 57677176, use 7 agricultural double 1-1/2 pitch link from 10 ft roll marked 569090R91 and one connecting link 567007R91

1шт.

16

CHAIN, main line coupler, from serial no. 850, 57677176, 1050, 57677176, use 8 links of 1-1/2 pitch transmission roller chain from 10 ft roll marked 569090R91 and one connecting link 567007R91

1шт.

17

20969R1

PLUG

3/4 in. pipe

1шт.

18

487866R1

GEAR

bevel, 17T

1шт.

19

475782R1

GASKET

gear box

1шт.

20

475783R1

COVER

gear box

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

21

540072R1

COUPLING

COUPLER, main line shaft rear half, 8T, order coupler, 542652R1 and pin 657196R1

1шт.

22

23899R1

PIN, 5/32 x 2-3/4 C-Z cot

1шт.

23

540071R91

COUPLING

COUPLER W/CHAIN ASSY, main line shaft, order coupler, 542652R1 and pin 657196R1, consists of the following (1) ref. 14488607R1, (2) ref. 15586879R1, (1) ref. 16 1-1/2 pitch transmission roller chain, 8 links, (1) ref. 21540072R1, (1) ref. 2223899R1

1шт.
