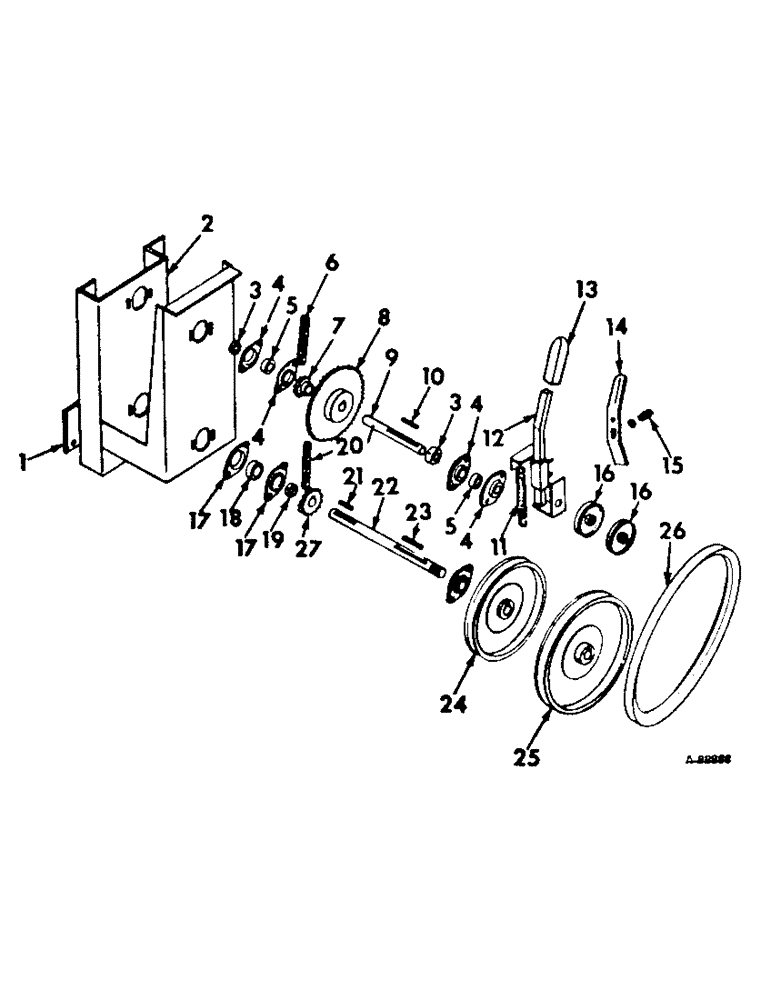

Запчасти Case IH 850 (B-12) - AUGER FEED DRIVE UNIT, BOTTOM

1

475691R1

SHIM

bottom drive unit

1шт.

2

475692R91

BRACKET

DRIVE UNIT, bottom

1шт.

3

470119R11

COLLAR

W/SET SCREW, brg locking

2шт.

4

469910R1

FLANGE

brg mounting

4шт.

475852R1

LOCK NUT

NUT, 5/16-18 lock flange

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

5

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

W/OUT COLLAR, ball

2шт.

6

CHAIN, drive unit, use 49 links of 1/2 standard roller chain from 10 ft. rolls marked 1790D, 1 connecting link, 1301D and 2 offset links, 1303D

1шт.

7

75988C1

SPROCKET ASSY.

SPROCKET, 18 teeth

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt set

1шт.

8

476175R1

SPROCKET ASSY.

SPROCKET

1шт.

222458

SCREW, 5/16-18 x 1/4 hex-soc-hd flat pt set

1шт.

9

475656R1

SHAFT

3/4 in. x 6 in.

1шт.

10

475655R1

KEY, 1/4 x 2-1/4 sq parallel

1шт.

11

475686R1

SPRING

extension

1шт.

12

475682R91

CLUTCH ASSY, drag control

1шт.

13

475681R1

HANDLE, rubber clutch

1шт.

14

475683R91

LOCK, clutch

1шт.

15

475684R1

SPRING, compression

1шт.

16

475685R1

PULLEY

idler

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

15108R1

BOLT, 3/8-16 x 2-1/2 sq-nk crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

612031R1

FLANGED BEARING

brg mounting

4шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

475852R1

LOCK NUT

NUT, 5/16-18 C-Z lock flange

4шт.

18

455965R92

BEARING

W/OUT COLLAR, ball

2шт.

19

668085R11

COLLAR

W/SET SCREW, brg locking

2шт.

20

CHAIN, drive unit, use 59 links of 1/2 std roller chain from 10 ft. rolls marked 1790D, 1 connecting link, 1301D and 2 offset links, 1303D

1шт.

21

Q53

KEY,1/4" Sq x 1", Par

1шт.

22

475697R1

SHAFT

1 x 11 in.

1шт.

23

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq parallel

1шт.

24

475696R1

PULLEY

9 in.

1шт.

25

475695R1

PULLEY

10 in.

1шт.

26

475694R1

V-BELT,46.00" L

46.00" L

1шт.

27

475699R1

SPROCKET ASSY.

SPROCKET

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

1шт.
