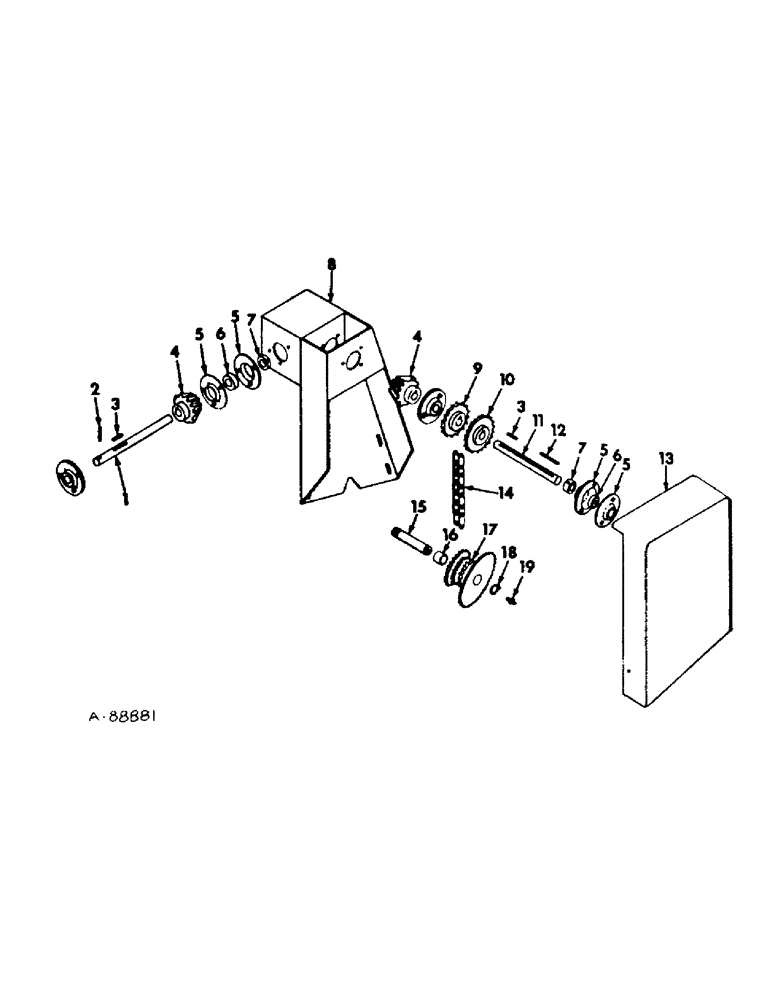

Запчасти Case IH 850 (B-11) - AUGER FEED DRIVE UNIT, TOP

1

475690R1

SHAFT

drive

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

446221

WASHER,7/16"

1/2 x 1-1/8 x 14

2шт.

2

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

1шт.

3

Q53

KEY,1/4" Sq x 1", Par

2шт.

4

476670R1

GEAR

bevel, 14T

2шт.

5

462360R1

FLANGED BEARING

brg mounting

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

475852R1

LOCK NUT

NUT, 5/16-18 lock flange

6шт.

6

455965R92

BEARING

W/OUT COLLAR, ball

2шт.

7

668085R11

COLLAR

W/SET SCREW, brg locking

2шт.

8

475675R91

DRIVE UNIT, top drag

1шт.

472145R1

NUT, 3/8-16 lock flange

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

2шт.

9

475679R1

SPROCKET ASSY.

SPROCKET, 17T

1шт.

10

475680R1

SPROCKET ASSY.

SPROCKET, 22T

1шт.

11

475678R1

SHAFT

1 in. x 6-1/4 in.

1шт.

12

479370R1

KEY,1/4" Sq x 2", Par

1/4 x 2 sq parallel

1шт.

13

488478R1

SHIELD, top drag drive

1шт.

14

CHAIN, auger feed, use 35 links of 1-1/4 extended pitch agricultural transmission roller chain from 10 ft. rolls marked 569089R91, 1 connecting link 456980R91 and 2 offset links 456929R91

1шт.

15

475687R1

SHAFT

1 in. x 4-1/2 in.

1шт.

16

475689R1

BUSHING

2шт.

17

475688R91

SPROCKET ASSY.

SPROCKET ASSY

1шт.

18

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.
