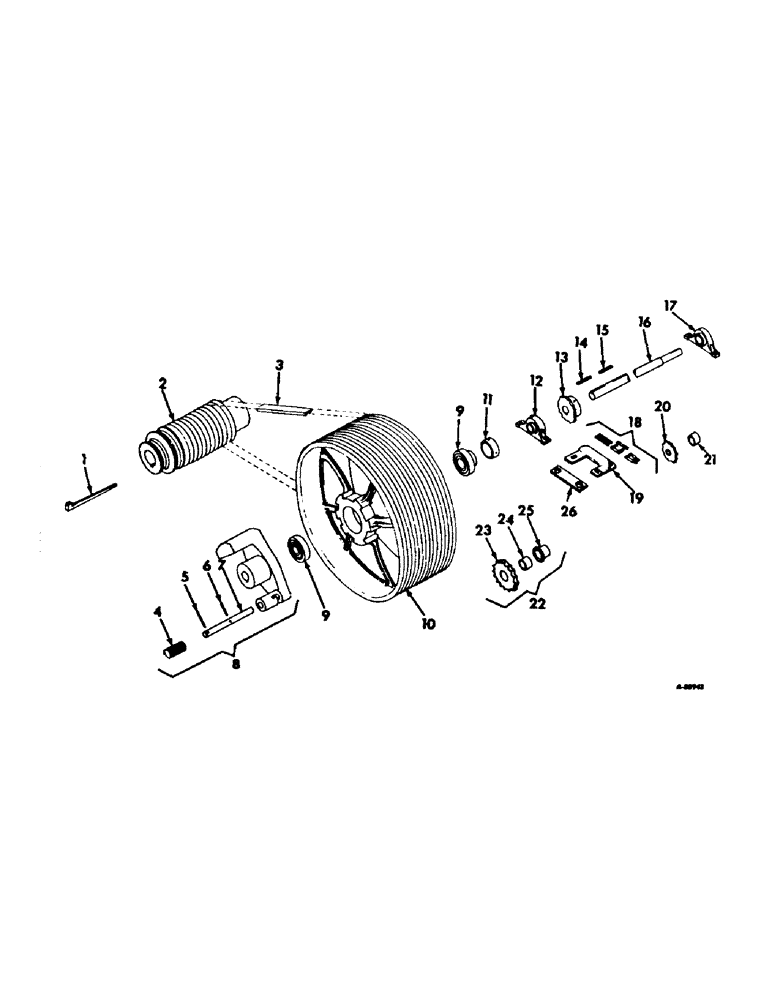

Запчасти Case IH 850 (B-09) - BELT DRIVE

1

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

3/8 x 1-1/2 gib

1шт.

2

475733R91

PULLEY

12 groove

1шт.

3

489608R91

SET OF BELTS,0.88" W x 80.00" L

(6), V-Belt, 540 RPM-PTO 0.88" W x 80.00" L

1шт.

3

489609R91

SET OF BELTS,0.88" W x 60.00" L

(6), V-Belt, 1000 RPM-PTO 0.88" W x 60.00" L

1шт.

4

475721R1

SPRING

compression

1шт.

5

657196R1

PIN

1/4-2 slt spring

1шт.

6

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

7

475722R1

PIN

locking

1шт.

8

481973R91

CLUTCH

ASSY, drive

1шт.

9

164038C91

BALL BEARING

BEARING ASSY, less collar

2шт.

10

481975R91

PULLEY

drive, for 540 RPM-PTO

1шт.

10

485947R1

PULLEY

drive, for 1000 RPM-PTO

1шт.

11

557119R11

COLLAR

COLLAR W/SET SCREW, brg locking

1шт.

12

485937R91

BEARING CARRIER,41.15mm ID

ASSY, belt drive shaft

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

13

481974R1

SPROCKET ASSY.

SPROCKET, 14T, for 540 RPM-PTO

1шт.

13

485946R1

SPROCKET ASSY.

SPROCKET, 15T, for 1000 RPM-PTO

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

1шт.

14

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq parallel

1шт.

15

454353R1

KEY,3/8" Sq x 1", Par

3/8 x 1 sq parallel

1шт.

16

481077R1

SHAFT

belt drive

1шт.

17

475727R91

BEARING ASSY

BEARING ASSY, belt drive

1шт.

18

CHAIN, hammer mill drive, for 540 RPM-PTO, use 71 links of 3/4 pitch standard roller chain from 10 ft roll marked, 1793D, 1 connecting link, 1786D, and 1 offset link, 1318D

1шт.

18

CHAIN, hammer mill drive, for 1000 RPM-PTO, use 87 links of 5/8 pitch stand roller chain from 10 ft roll marked, 1751D and 1 offset link, 1315D

1шт.

19

475726R1

BRACKET

brg holder

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

20

571441R91

SPROCKET ASSY.,15T

SPROCKET W/BRG, idler 15T, 1969, for 540 RPM-PTO

1шт.

20

488699R1

SPROCKET ASSY.

SPROCKET W/BRG, idler 13T, for 1000 RPM-PTO

1шт.

21

460045R1

SPACER

sprocket

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/2 x 16 ga C-Z

2шт.

22

488516R91

SPROCKET ASSY.

SPROCKET ASSY, shear, 25T, for 540 RPM-PTO

1шт.

22

488520R91

SPROCKET ASSY.

SPROCKET ASSY, shear, 45T, FOR 1000 RPM-PTO

1шт.

23

488518R2

SPROCKET ASSY.

SPROCKET, shear 25T, for 540 RPM PTO

1шт.

23

488521R2

SPROCKET ASSY.

SPROCKET, shear 45T, for 1000 RPM PTO

1шт.

24

488519R1

BUSHING, shear sprocket

1шт.

25

487848R1

HUB

shear sprocket

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

1шт.

26

475731R1

SUPPORT, bracket brg

1шт.

102378

NUT, 1/2-13 C-Z hex

2шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.
