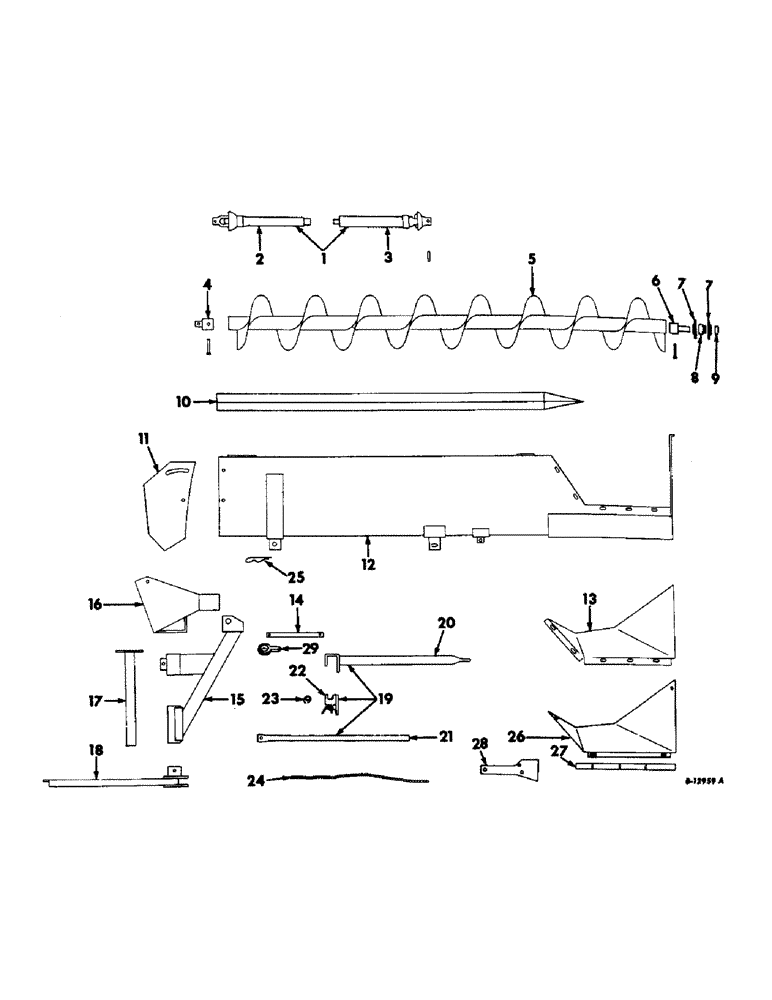

Запчасти Case IH 85 (A-03) - AUGER FEED UNIT

1

SHAFT ASSY, power drag, not serviced separately, order component parts

1шт.

2

475649R1

SHAFT

top half power drag

1шт.

3

475650R1

SHAFT

male end power drag

1шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

1шт.

4

475657R1

SHAFT, top plug

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

5

475652R91

AUGER

ASSY, 7 ft.

1шт.

6

475653R1

SHAFT, bottom plug

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

7

462360R1

FLANGED BEARING

bearing mounting

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 short sq-nk crg

3шт.

632225R1

LOCK NUT

5/16-18 whiz lock flange

3шт.

8

455965R92

BEARING

W/OUT COLLAR, ball

1шт.

9

668085R11

COLLAR

W/SET SCREW, brg locking

1шт.

10

475658R1

GUIDE, right side auger

1шт.

11

475659R1

SPOUT, DISCHARGE

DOWNSPOUT, auger housing

1шт.

12

475660R92

HOUSING, auger feed

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

632225R1

LOCK NUT

5/16-18 whiz lock flange

3шт.

13

475661R1

PANEL, hopper, RH, Serial Range: 1964-1965

1шт.

13

475662R1

PANEL

hopper, LH, Serial Range: 1964-1965

1шт.

14

475663R1

PIN

ROD, 3/4 in. x 10 in. hinge

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

15

475664R1

SUPPORT, swinging auger housing

1шт.

16

475665R1

HOPPER

mill drag

1шт.

17

475666R91

SUPPORT, vertical pipe

1шт.

18

475667R1

SUPPORT, bottom swivel unit

1шт.

19

475668R91

SUPPORT ASSY, jack

1шт.

20

475669R1

SUPPORT, top pipe

1шт.

21

475670R1

SUPPORT

bottom pipe

1шт.

22

475671R1

CLAMP

LOCK, jack

1шт.

23

475672R1

SPRING

no. 56 jack

1шт.

24

475673R1

CHAIN, 7 ft. sash

1шт.

25

475674R1

PIN, transport position lock

1шт.

26

485902R1

HOPPER, folding panel, 1965 and since

1шт.

27

485859R1

ANGLE, bottom reinforcing, 1965 and since

1шт.

28

485860R1

PLATE, hinge and support, 1965 and since

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss hd mach

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock flange

6шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

592639R1

NUT

5/16-18 C-Z locking

2шт.

29

485861R1

CLAMP

jack lock, 1965 and since

4шт.
