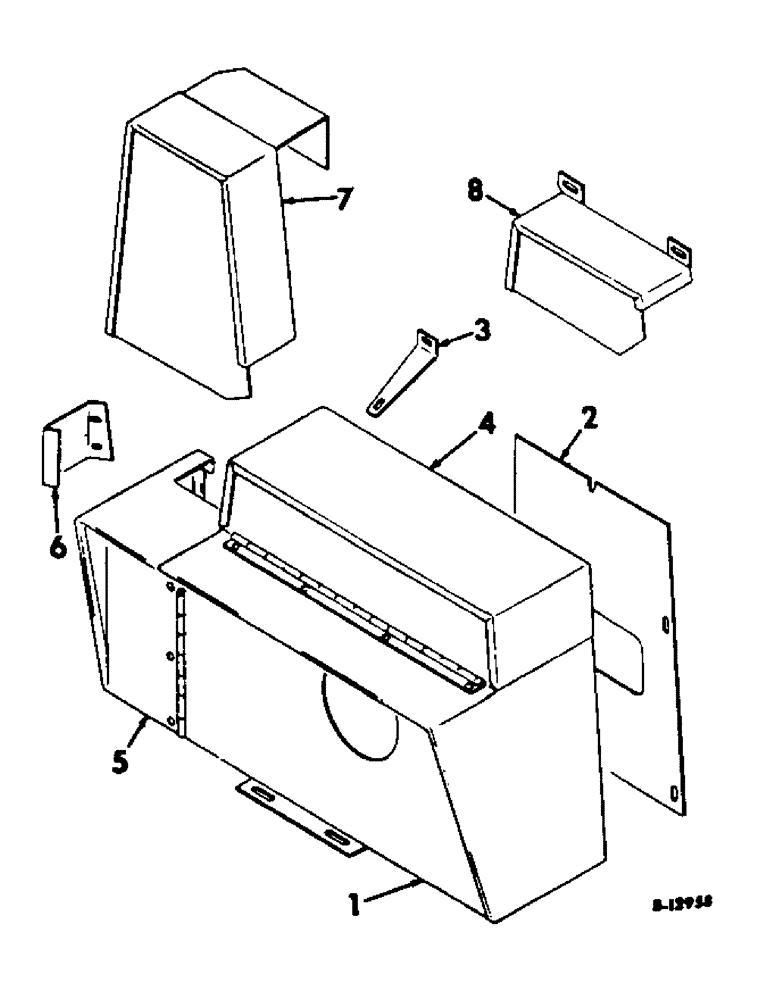

Запчасти Case IH 85 (A-26) - SHIELDS AND BRACKETS

1

475851R91

SHIELD ASSY, main belt & pulley

1шт.

19417R1

BOLT

3/8-16 x 1 cd-pltd short-sq-nk crg

2шт.

475954R1

NUT

3/8-16 cd-pltd whiz lock flange

2шт.

446363

WASHER,5/16"

3/8 x 7/8 x 14 ga cd or zn-pltd

2шт.

2

475853R91

SHIELD ASSY, backing

1шт.

129-409

WING NUT,1/4"-20

NUT, 1/4-20 cd or zn-pltd wing

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 cd-pltd whiz lock flange

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 cd or zn-pltd truss hd std mach

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 cd or zn-pltd hex-hd cap

1шт.

3

475854R1

BRACKET, main shield support

1шт.

19417R1

BOLT

3/8-16 x 1 cd-pltd short-sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 cd-pltd whiz lock flange

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 cd or zn-pltd hex-hd cap

1шт.

495-21031

WASHER,1/4"

5/16 x 3/4 x 16 ga cd or zn-pltd

1шт.

4

475855R91

SHIELD ASSY, top hinged

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 cd-pltd whiz lock flange

3шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 cd or zn-pltd truss-hd sltd mach

3шт.

5

475857R91

SHIELD ASSY, side hinged

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 cd-pltd whiz lock flange

3шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 cd or zn-pltd truss-hd sltd mach

3шт.

6

475858R91

BRACKET, side hinged shield

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 cd-pltd whiz lock flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 cd-pltd whiz lock flange

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 cd or zn-pltd zn-pltd truss hd-sltd mach

2шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 cd or zn-pltd zn-pltd truss hd-sltd mach

2шт.

7

475860R91

SHIELD ASSY, top drag drive unit

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 cd-pltd whiz lock flange

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 cd or zn-pltd truss-hd-sltd mach

1шт.

120385

WASHER,3/16"

1/4 x 9/16 x 18 ga cd or zn-pltd

1шт.

8

475861R91

SHIELD ASSY, roll feed

1шт.
