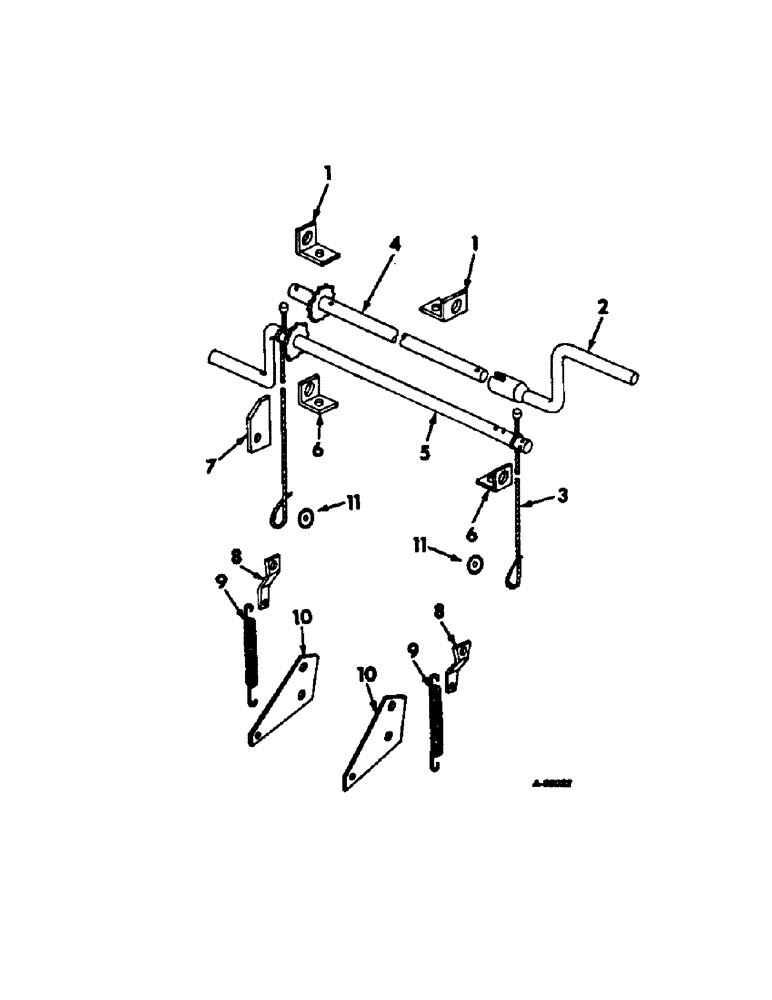

Запчасти Case IH 85 (A-24) - ROLL FEED CABLE HOLDUP

1

485873R1

HOLDER, crank bracket, 2 used only when machine is equipped w/mollasses attachment

1шт.

2

485874R1

CRANK, used only when machine is equipped w/mollasses attachment

1шт.

3

485871R1

CABLE

hold up 12 in.

2шт.

4

485929R1

SHAFT ASSY, for crank, used only when machine is equipped w/mollasses attachment

1шт.

5

485928R1

CRANKSHAFT

AND RATCHET ASSY

1шт.

6

485868R1

SUPPORT, crankshaft

2шт.

7

485867R1

SUPPORT

BRACKET, locking

1шт.

8

485870R1

SUPPORT

HOLDER, spring top

2шт.

9

485872R1

SPRING

holdup

2шт.

10

485869R1

SUPPORT

HOLDER, spring bottom

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock flange

2шт.

11

486799R1

LOCK WASHER

special lock

2шт.
