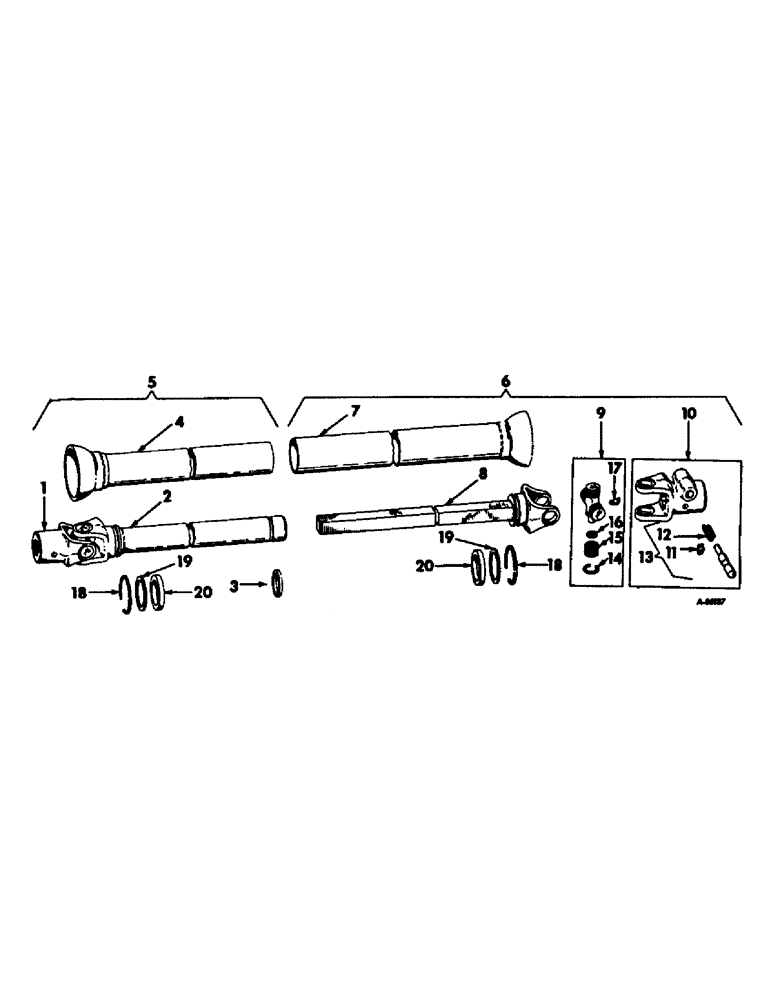

Запчасти Case IH 85 (A-23) - POWER DRIVE AND SHIELDS

1

475827R1

YOKE, units A and B

1шт.

1

485943R1

YOKE

units C and D

1шт.

2

475828R91

YOKE W/SLEEVE ASSY, tube, units A, C and D

1шт.

2

480620R91

YOKE W/SLEEVE ASSY, tube, unit B

1шт.

3

613439R1

BRACKET

SUPPORT, nylon, units A, B, C and D

1шт.

4

475829R91

SHIELD, inner, units A, C and D

1шт.

4

480619R91

SHIELD, inner, unit B

1шт.

5

466369R92

SHAFT

JOINT ASSY, rear half of double universal, implement end, unit A

1шт.

5

480430R91

JOINT ASSY, rear half of double universal, implement end, unit B

1шт.

5

485942R91

JOINT ASSY, rear half of double universal, implement end, unit C and D

1шт.

6

480435R91

JOINT ASSY, front half of double universal, tractor end, unit A

1шт.

6

480429R91

JOINT ASSY, front half of double universal, tractor end, unit B

1шт.

6

486733R91

JOINT ASSY, front half of double universal, tractor end, unit C, order joint assy, 480435R91

1шт.

6

485940R91

JOINT ASSY, front half of double universal, tractor end, unit D

1шт.

7

475830R91

SHIELD, outer, units A, C and D

1шт.

7

480610R91

SHIELD, outer, unit B

1шт.

8

475831R91

YOKE W/SHAFT, units A and C

1шт.

8

480611R91

YOKE W/SHAFT, unit B

1шт.

8

485831R91

YOKE W/SHAFT, unit D

1шт.

9

660116R91

NUT

CENTER CROSS ASSY, units A and B

1шт.

9

347960R91

U-JOINT SPIDER

CENTER CROSS ASSY, units C and D

1шт.

10

475832R91

YOKE ASSY, quick detachable 1-3/8 spline, unit A

1шт.

10

480612R91

YOKE ASSY, quick detachable 1-3/8 spline, unit B

1шт.

10

660484R21

FORK

YOKE ASSY, quick detachable 1-3/8 spline, unit C

1шт.

10

583876R11

YOKE

ASSY, quick detachable 1-3/8 spline, unit D

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin, units A, B, C and D

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin, units A, B and C

1шт.

12

587479R1

SPRING

locking pin, unit D

1шт.

13

455346R21

PIN

W/SPRING AND X-WASHER, locking, units A, B and C

1шт.

13

631976R91

PIN

W/SPRING AND X-WASHER, locking, unit D

1шт.

PIN, 1/8 x 1/2 cotter

1шт.

14

495962R1

RING

SNAP RING, units A, B, C and D

8шт.

15

661671R91

JOINT

BEARING ASSY, needle, unit A

8шт.

15

480614R91

BEARING ASSY, needle, unit B

1шт.

15

669563R91

NEEDLE BEARING

ASSY, needle, units C & D

1шт.

16

NOT USED THIS APPLICATION

1шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-65 deg elbow lub, units A, B, C and D

1шт.

18

613436R1

CLAMP

RING, shield retaining, units A, B, C and D

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust, units A, B, C & D

2шт.

20

461346R1

BEARING

nylon, units A, C and D

2шт.

20

480617R1

BEARING, nylon, unit B

2шт.
