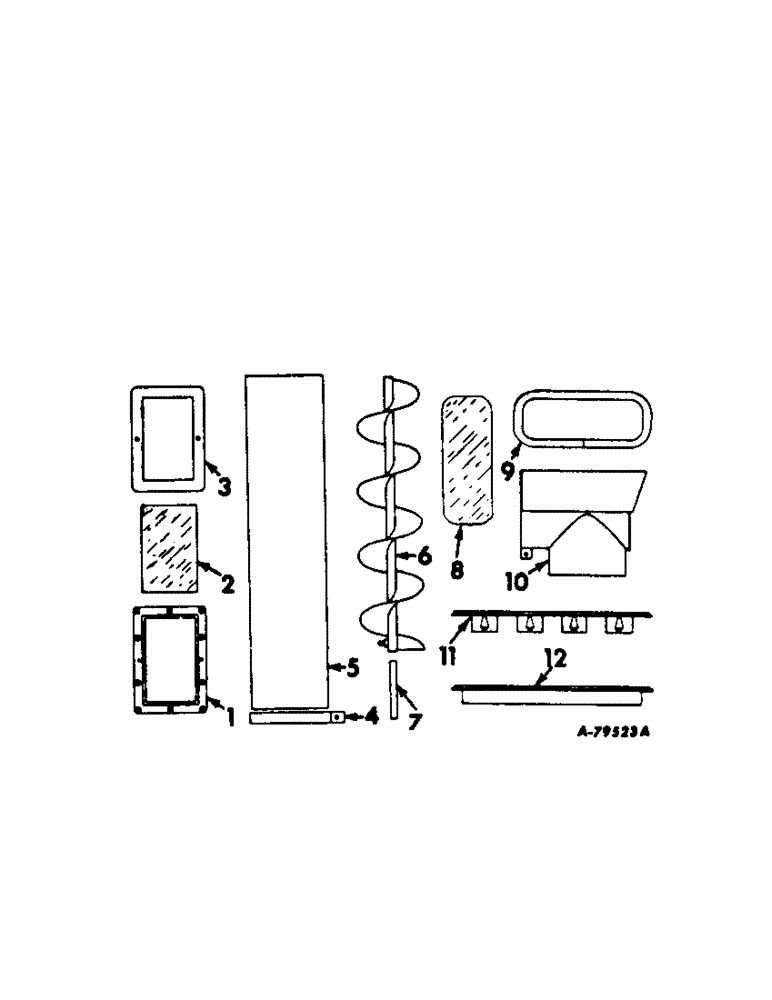

Запчасти Case IH 85 (A-18) - WINDOW AND EXTENSION

1

475875R1

FRAME, inner window, aluminum

1шт.

105604

NUT

1/4-20 reg sq

14шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 3/4 slt-f-hd mach

14шт.

2

475876R1

GLASS, window, for aluminum frame

1шт.

3

475955R1

FRAME, outer window

1шт.

105604

NUT

1/4-20 reg sq

14шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 3/4 slt-f-hd mach

14шт.

4

475877R1

BAND

extension holding

1шт.

5

485883R1

TUBE, auger, 2 ft extension

1шт.

5

485884R1

TUBE, auger, 3 ft extension

1шт.

5

485885R1

TUBE, auger, 4 ft extension

1шт.

5

485886R1

TUBE, auger, 5 ft extension

1шт.

5

485887R1

TUBE, auger, 6 ft extension

1шт.

5

475749R91

TUBE

auger, 95 in. extension

1шт.

6

485932R1

AUGER ASSY, 2 ft extension

1шт.

6

485879R1

AUGER ASSY, 3 ft extension

1шт.

6

485880R1

AUGER ASSY, 4 ft extension

1шт.

6

485881R1

AUGER ASSY, 5 ft extension

1шт.

6

485882R1

AUGER ASSY, 6 ft extension

1шт.

6

475748R91

AUGER ASSY, 95 in. extension

1шт.

7

475956R1

SHAFT, 13/16 x 7-1/2 ft. extension

1шт.

8

476199R1

GLASS

window

3шт.

9

FRAME, rubber, use 32 in. from bulk roll, 64515C1

3шт.

10

475878R91

HOOD

unloading auger

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 C-Z hex-hd

1шт.

11

475026R91

MAGNET ATT, no. 2 18 in.

1шт.

12

77985C91

MAGNET

no. 4 18 in.

1шт.
