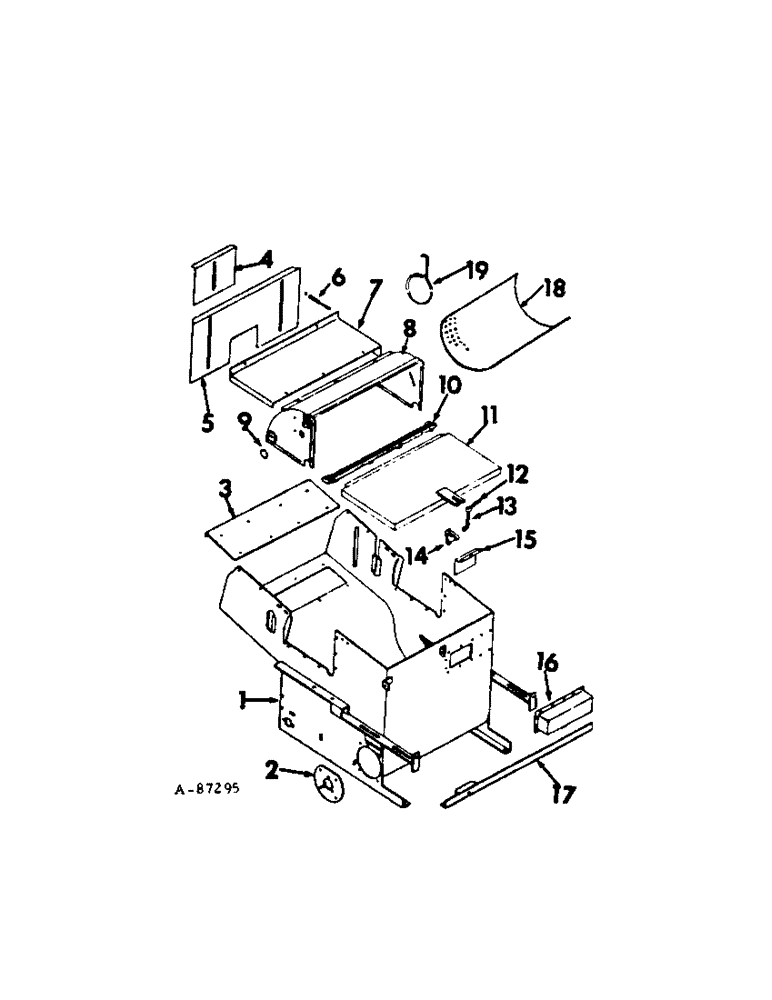

Запчасти Case IH 85 (A-18[A]) - MILL PARTS

1

485920R1

HOUSING, main hammermill

1шт.

2

542860R1

PLATE

brg holder & auger removal

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock flange

4шт.

3

485862R1

SUPPORT

PLATE, magnet hole cover

1шт.

4

475800R1

GATE, small feed control

1шт.

5

475820R1

HOLDER

GATE, large feed control

1шт.

6

475801R1

SPRING

compression

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 cd or zn-pltd wing

2шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

SCREW, 5/16-18 x 2-1/2 hex-hd cap

2шт.

7

485863R1

COVER

roll feed

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock flange

7шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

7шт.

8

475808R1

COVER, curved top mill

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock flange

13шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

13шт.

9

475809R1

RETAINER

PLATE, hammer rod removal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock flange

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

2шт.

10

475798R91

BAR

screen holder

1шт.

11

475799R91

COVER

LID ASSY, mill

1шт.

12

475803R1

NUT, 7/16-14 handle

1шт.

13

475804R1

ROD

BOLT, 7/16-14 x 4 in. bent

1шт.

14

475976R1

SUPPORT, screen holder

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock flange

6шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

6шт.

15

485864R1

BAFFLE, hammermill

1шт.

16

475807R91

HOUSING ASSY, mill blower box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 whiz lock flange

12шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 slt-truss-hd mach

12шт.

17

485865R1

BRACKET, belt tightener angle

1шт.

18

476767R91

SCREEN, 3/32 in. hole perforated

1шт.

18

475884R91

SCREEN

1/8 in. hole perforated

1шт.

18

475885R91

SCREEN, 5/32 in. hole perforated

1шт.

18

475886R91

SCREEN

3/16 in. hole perforated

1шт.

18

475887R91

SCREEN

1/4 in. hole perforated

1шт.

18

475888R91

SCREEN

5/16 in. hole perforated

1шт.

18

475944R91

SCREEN

3/8 in. hole perforated

1шт.

18

475945R91

SCREEN, 7/16 in. hole perforated

1шт.

18

475946R91

SCREEN

1/2 in. hole perforated

1шт.

18

475947R91

SCREEN

5/8 in. hole perforated

1шт.

18

475948R91

SCREEN

3/4 in. hole perforated

1шт.

18

475949R91

SCREEN, 7/8 in. hole perforated

1шт.

18

475950R91

SCREEN, 1 in. hole perforated

1шт.

18

475951R91

SCREEN, 1-1/4 in. hole perforated

1шт.

18

475952R91

SCREEN

1-1/2 in. hole perforated

1шт.

18

475953R91

SCREEN, 2 in. hole perforated

1шт.

19

475805R1

HOOK

screen

1шт.

475806R91

HOPPER

ASSY, folding mill, used only when machine not equipped with drag

1шт.
