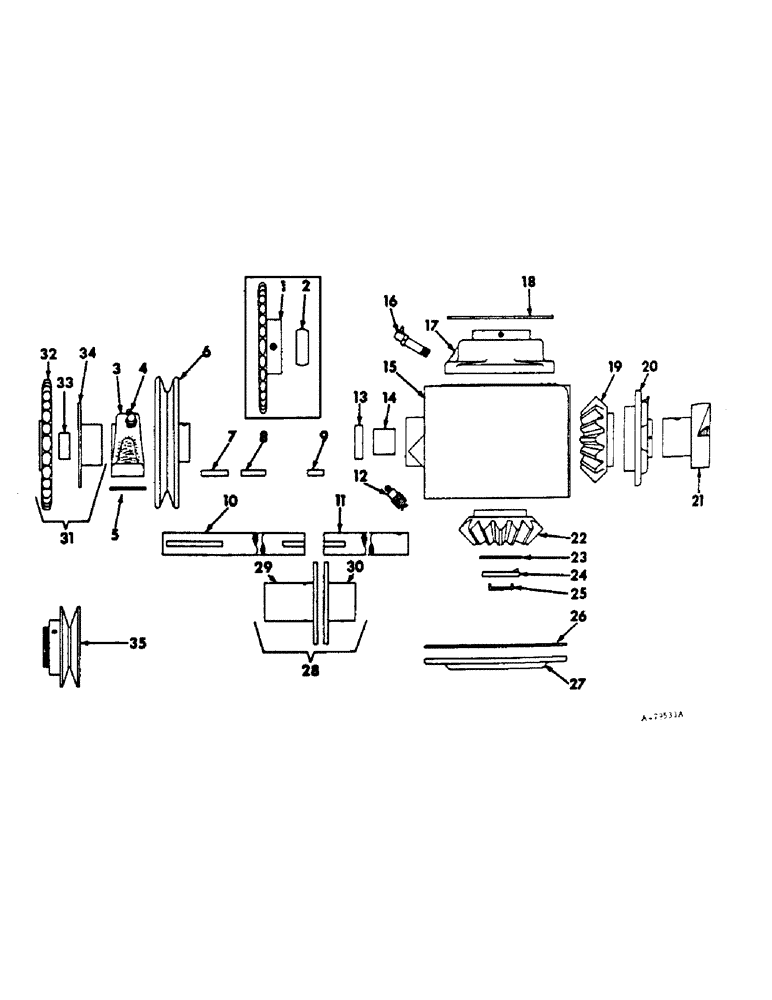

Запчасти Case IH 85 (A-16) - MAIN SHAFT AND CONNECTIONS

1

475769R91

SPROCKET ASSY, 28T, Serial Range: 1964-1965

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

2шт.

2

475881R91

BEARING ASSY,1" ID x 4.375" OD x 1.3593"

W/SEALS & COLLAR, ball, 1964 to 1965

2шт.

3

475770R91

BALL BEARING

pillow block ball

2шт.

271501

SOCKET

NUT, 7/16-14 cd or zn-pltd hex

4шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 cd or zn-pltd hex-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

4

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

5

475771R1

SHIM, bearing

2шт.

6

475737R1

PULLEY

1шт.

120376

NUT,5/16"-18, G5

1шт.

102885

SET SCREW

5/16-18 x 1 sq-hd cup-pt set

1шт.

7

Y24417

KEY,1/4" Sq x 5", Par

1/4 x 5 sq parallel

1шт.

8

Q58

KEY, 1/4 x 3-3/4 sq parallel 1/4" Sq x 3 3/4", Par

1шт.

9

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1-1/4 sq parallel

1шт.

10

475785R1

SHAFT

1 OD x 57 in. front

1шт.

11

475784R1

SHAFT

1 OD x 18 in. back

1шт.

12

475774R1

PLUG, 3/8 vent

1шт.

13

488561R91

OIL SEAL

SEAL, oil

1шт.

14

309911R1

BUSHING

1 x 1-1/4 x 1 brz

1шт.

15

475776R91

BOX, gear

1шт.

16

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

17

476827R91

BEARING

cartridge CPT flanged

1шт.

18

475775R1

WASHER

PLATE, bearing protector

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 cd or zn-pltd hex-hd cap

4шт.

102384

HYDRAULIC VALVE

WASHER, 1/2 cd or zn-pltd med lock

4шт.

19

475777R1

GEAR, bevel, 1 in. bore

1шт.

20

475881R91

BEARING ASSY,1" ID x 4.375" OD x 1.3593"

W/SEALS & COLLAR, ball

1шт.

V4941/2

PIN

5/16 x 2 std-hd dld

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

475778R1

CLUTCH

front

1шт.

17496

BOLT, 3/8-16 x 1-3/4 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

475975R1

GEAR, bevel, 1-1/2 in. bore

1шт.

23

475779R1

WASHER, special lock

1шт.

24

475780R1

WASHER, 10 ga special lock

1шт.

25

475781R1

WASHER

LOCK, special bolt

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 hex-hd cap

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

26

475782R1

GASKET

gear box

1шт.

27

475783R1

COVER

gear box

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 cd or zn-pltd hex-hd cap

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

28

485909R91

COUPLING

ASSY, shear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z lock flange

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

2шт.

29

485910R1

COUPLING, front half

1шт.

30

485911R1

COUPLING, rear half

1шт.

31

485913R91

SPROCKET ASSY, 28T, 1965 & since

1шт.

31

485917R91

SPROCKET ASSY, 45T, for 1000 RPM-PTO

1шт.

32

485914R1

SPROCKET ASSY.

SPROCKET, 22T for 540 RPM-PTO, 1965 and since

1шт.

32

485918R1

SPROCKET, 45T for 1000 RPM-PTO

1шт.

33

485916R1

BUSHING, sprocket, for 489914R1 sprocket

1шт.

33

485919R1

BUSHING, sprocket, for 485918R1 sprocket

1шт.

34

485915R1

HUB, shear flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 x 1 C-Z hex-hd cap

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

2шт.

35

475788R1

PULLEY, variable speed, Serial Range: 1964-1965

1шт.

35

485912R1

PULLEY, 2-1/2, 1965 and since

1шт.
