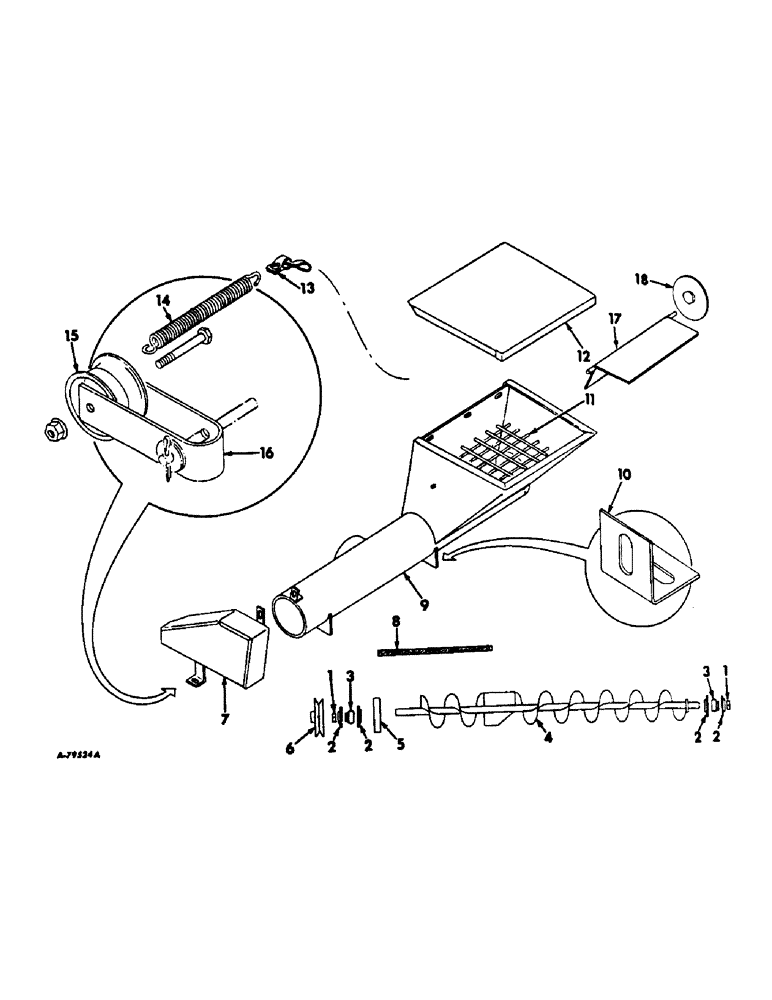

Запчасти Case IH 85 (A-12) - CONCENTRATE HOPPER

1

668085R11

COLLAR

W/SET SCREW, brg locking

2шт.

2

462360R1

FLANGED BEARING

bearing mounting

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 short-sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 whiz lock flange

6шт.

3

455965R92

BEARING

W/OUT COLLAR, ball

2шт.

4

475735R91

AUGER, concentrate hopper intake

1шт.

5

475736R1

PLATE, hopper end

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 whiz lock flange

3шт.

155338

SCREW, 1/4-20 x 1/2 cr-rec-rd-hd mach

3шт.

6

475737R1

PULLEY

1шт.

7

475738R1

SHIELD, belt & pulley

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 whiz lock flange

2шт.

155338

SCREW, 1/4-20 x 1/2 cr-rec-rd-hd mach

2шт.

8

475972R1

V-BELT,0.63" W x 58.00" L

0.63" W x 58.00" L

1шт.

9

475740R91

HOUSING, concentrate hopper

1шт.

10

475743R1

BRACKET, housing

2шт.

475954R1

NUT

3/8-16 whiz lock flange

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

2шт.

11

475742R1

GRATE, hopper

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12

475741R91

COVER, hinged hopper

1шт.

937060R1

LOCK NUT

NUT, 1/4-20 whiz lock flange

3шт.

155338

SCREW, 1/4-20 x 1/2 cr-rec-rd-hd mach

3шт.

13

475747R1

CHAIN, 8 in. belt tightener

1шт.

14

475746R1

SPRING

belt tightener

1шт.

15

475745R1

PULLEY

flat belt tightener

1шт.

475954R1

NUT

3/8-16 whiz lock flange

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 hex-hd cap

1шт.

16

475744R1

BRACKET, belt tightener

2шт.

17

481067R91

PLATE ASSY, baffle

1шт.

18

481075R91

RETAINER ASSY, baffle plate

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

Q392

WASHER

9/32 x 3/4 x 18 ga

1шт.
