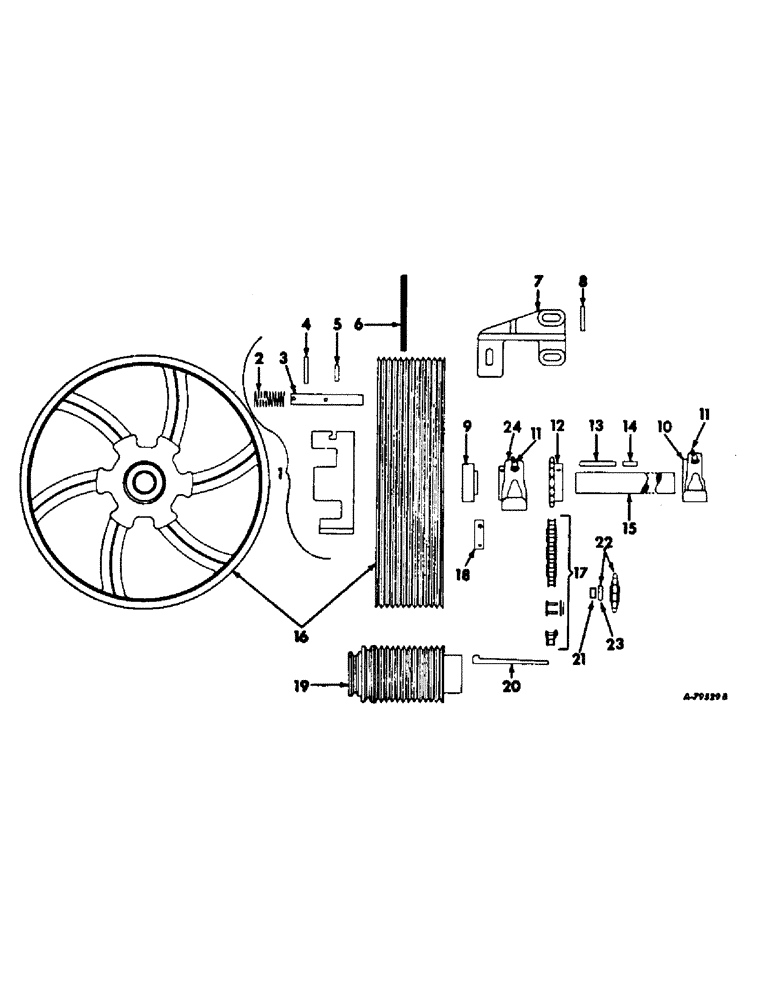

Запчасти Case IH 85 (A-10) - BELT DRIVE AND CONNECTIONS

1

475720R91

CLUTCH, hammermill drive, 1964

1шт.

1

481973R91

CLUTCH

ASSY, drive, 1965 & since

1шт.

2

475721R1

SPRING

3/4 ID x 2 compression

1шт.

3

475722R1

PIN

3/4 x 6 locking

1шт.

4

657196R1

PIN

1/4 x 2 slt spring

1шт.

5

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

6

476198R91

BELT

SET, consists of twelve belts, 475725R1

1шт.

6

475725R1

BELT

12шт.

6

485945R91

SET OF 2 BELTS

BELTS, set of 12, for 1000 RPM/PTO, 1965 & since

1шт.

7

475726R1

BRACKET

bearing holder

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

4шт.

8

475731R1

SUPPORT, bracket & bearing

1шт.

9

611311R91

BEARING

W/OUT SEAL & COLLAR, ball, 1964

2шт.

9

164038C91

BALL BEARING

BEARING ASSY, ball, 1965 & since

2шт.

10

475727R91

BEARING ASSY

BEARING, pillow block ball

1шт.

102378

NUT, 1/2-13 hex

2шт.

279890

SPARE PART

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

4шт.

11

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

12

475728R1

SPROCKET, 17T, 1964

1шт.

12

481974R1

SPROCKET ASSY.

SPROCKET, 14T, for 500 RPM/PTO, 1965 & since

1шт.

12

485946R1

SPROCKET ASSY.

SPROCKET, 15T, for 1000 RPM-PTO, 1965 & since

1шт.

102580

GUIDE

SCREW, 5/16-18 x 1/4 hex-soc-hd cup-pt set

1шт.

13

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq parallel

1шт.

14

454353R1

KEY,3/8" Sq x 1", Par

3/8 x 1 sq parallel

1шт.

15

475729R1

SHAFT, 1-7/16 OD x 39 in., 1964

1шт.

15

481077R1

SHAFT

1-5/8 OD x 39 in., 1965 & since

1шт.

16

475730R91

PULLEY, 12 groove, 1964

1шт.

16

481975R91

PULLEY

12 groove, 500 RPM-PTO, 1965 and since

1шт.

16

485947R1

PULLEY

12 groove, 1000 RPM/PTO, 1965 and since

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 6 ga C-Z

2шт.

17

CHAIN, hammermill drive, 1964, use 79 links of 5/8 standard roller chain from a ten ft. roll marked, 1791D, 1 connecting link, 1310D and 2 offset links, 1315D

1шт.

17

CHAIN, hammermill drive 540 RPM/PTO, 1965 & since, use 67 links of 3/4 standard roller chain from ten ft. roll marked, 1793D, 1 connecting link 1786D and 1 offset link, 1318D

1шт.

17

CHAIN, hammermill drive, 1000 RPM/PTO, 1965 & since, use 87 links 5/8 standard roller chain from 10 ft. rolls marked 1791D, 1 connecting link 1310D and 1 offset link 1315D

1шт.

18

557113R11

COLLAR

W/SET SCREW, brg locking, 1964

1шт.

18

557119R11

COLLAR

COLLAR W/SET SCREW, brg locking, 1965 & since

2шт.

19

475733R91

PULLEY

12 groove

1шт.

20

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

3/8 x 1-1/2 gib hd

1шт.

21

460045R1

SPACER

1/2 x 1 x 1/2

1шт.

22

488699R1

SPROCKET ASSY.

SPROCKET, 13T, 1964, replaces 475734R11

1шт.

22

571441R91

SPROCKET ASSY.,15T

SPROCKET, w/brg 15T, 17 teeth, 1965 and since

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

179891

SHAFT

SCREW, 1/2-13 x 2-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

23

476876R91

BEARING ASSY,12.71mm ID x 34.92mm OD x 11mm W

BEARING, ball

1шт.

24

485937R91

BEARING CARRIER,41.15mm ID

ASSY, pillow block ball, 1965 & since

1шт.

24

475727R91

BEARING ASSY

BEARING ASSY, pillow block ball, 1964

1шт.
