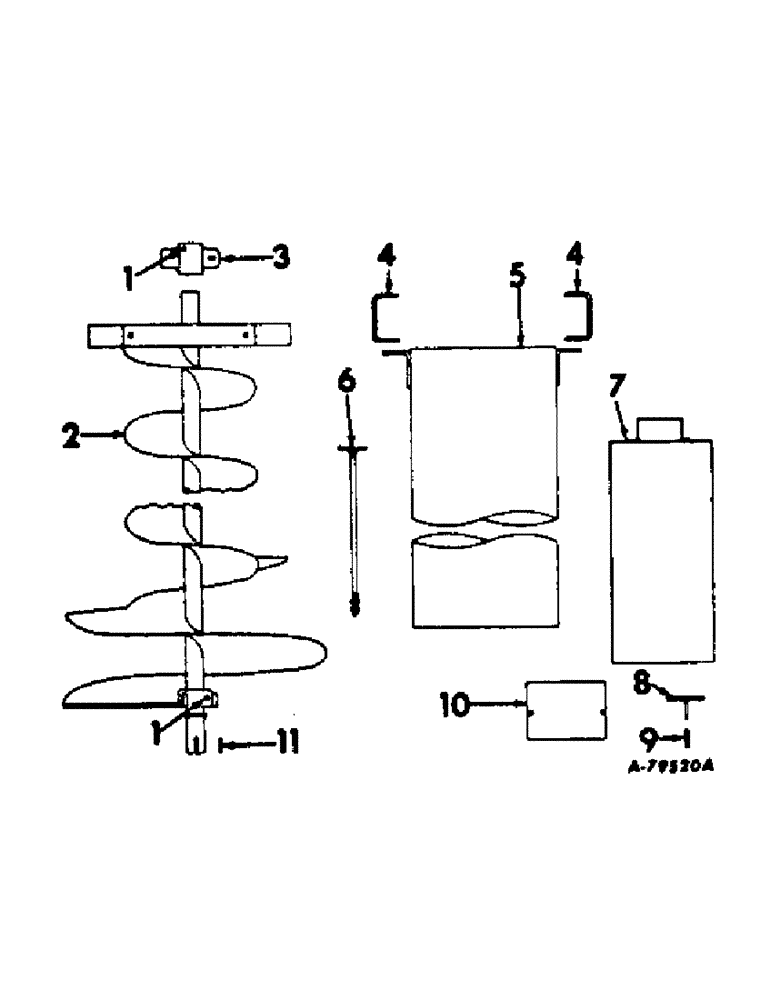

Запчасти Case IH 85 (A-09) - MIXING AUGER

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

2

475810R91

AUGER ASSY, mixing, 85 grinder mixer

1шт.

2

475811R91

AUGER ASSY, mixing, 105 grinder mixer

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 cd-pltd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

475812R1

BEARING, brass cast

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 cd or zn-pltd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120387

WASHER,3/8" x 3/4" x .060"

3/8 x 7/8 x 16 ga cd or zn-pltd

4шт.

4

485866R1

SUPPORT TUBE

SUPPORT, auger tube

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 C-Z hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

5

475814R1

TUBE, main auger, 85 grinder mixer

1шт.

5

7475815R1

TUBE, main auger, 105 grinder mixer

1шт.

6

475816R1

ROD, 3/8 tube support

2шт.

7

475817R91

DOOR

unloading slide

1шт.

8

475820R1

HOLDER

slide foor

1шт.

U5348

PIN

1/4 x 1-1/2 expan

1шт.

137141

AXLE PIN

PIN, 1/16 x 5/8 C-Z pltd cot

1шт.

9

475818R1

SPRING

sliding door

1шт.

10

475819R1

DOOR, mixer cleanout

1шт.

11

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq parallel

1шт.
